Facilitate higher refresh rates and 8K 60Hz video on UHBR10-enabled DisplayPort devices

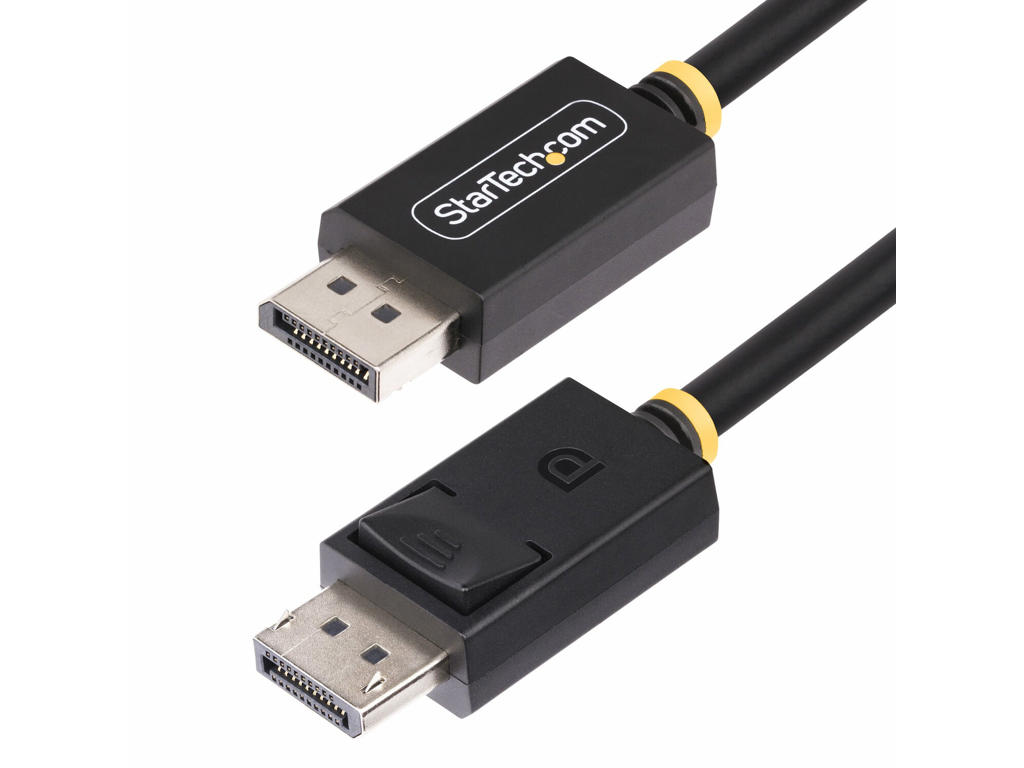

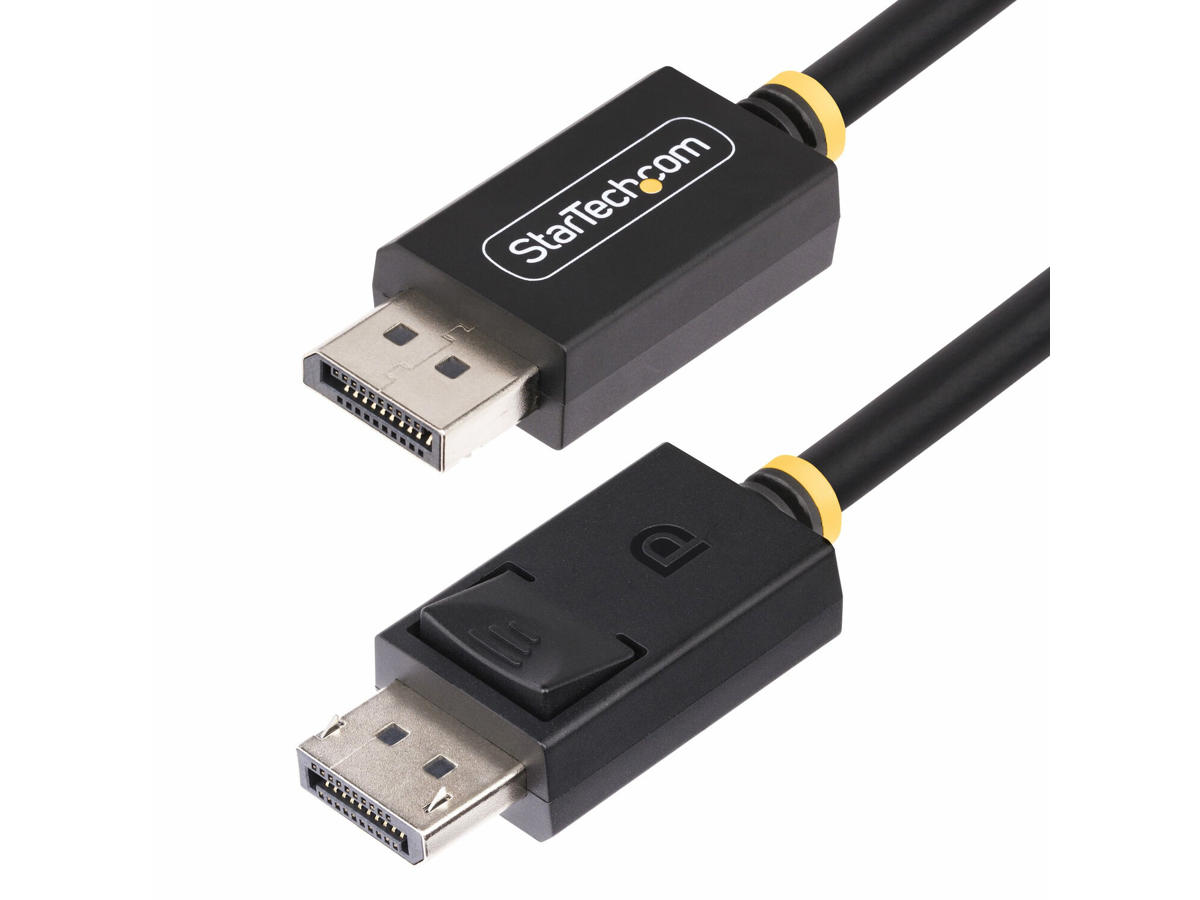

Connect an 8K/4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 2.1 DP40 Cable. This cable facilitates high bandwidth video and multi-channel audio and is ideal for 8K workstations, high performance GPUs, and dedicated AV applications including media production and content creation.
Seamless Compatibility
For seamless operation between DisplayPort-enabled devices, the DisplayPort 2.1 Cable is VESA Certified for guaranteed DP 2.1 and backward compatibility (DP 2.0/1.4/1.2). It supports G-Sync and FreeSync, enhancing Variable Refresh Rate (VRR) performance for optimal picture quality between high-capacity GPUs and supported displays.
Durable Design
This DisplayPort cable features a flexible TPE outer jacket that is tested to withstand 600 bending cycles at -/+60 degrees, and routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection. The connectors are rated to operate beyond 10,000 insertions.
Supported DisplayPort 2.1 Features:
This DP40 DisplayPort cable supports the following DP 2.1 features:
• Resolutions up to 8K 60Hz w/DSC, using a compatible DP source and display
• UHBR10 supports high refresh rates including 4K 120Hz and 1440p 240Hz
• High-Bandwidth Digital Content Protection (HDCP) 2.2 for a secure connection between source and display
• High Dynamic Range 10 (HDR10) for higher contrast ratio and vibrant picture quality
• Display Stream Compression (DSC) 1.2a for maximum resolution output
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with previous DP versions
This DP 2.1 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.
The StarTech.com Advantage
Funktioner | |
Kabellængde | 1 m |
Stik 1 | DisplayPort |
Stik 2 | DisplayPort |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Maksimal opløsning | 7680 x 4320 pixel |
Produktfarve | Sort |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
Stikforbindelse kontakter plettering | Nikkel |
DisplayPort-version | 2.1 |
Understøttede grafikopløsninger | 3840 x 2160, 7680 x 4320 |
Maksimal opdateringshastighed | 144 Hz |
HDCP | Ja |
HDCP-version | 2.2 |
Display Stream Compression (DSC) | Ja |
Display Stream Compression (DSC) version | 1.2a |
Låsestik | Ja |
Kabelmateriale | Kobber |
Kabelafskærmning | Aluminium mylar folie |
Materiale for kapper | Termoplastisk elastomer (TPE) |
AWG-ledningsstørrelse | 30 |
High Dynamic Range (HDR) understøttet | Ja |
Dataoverførselshastighed | 40 Gbit/sek. |
Antal kanaler | 32 kanaler |
Multi-Stream Transport (MST) | Ja |
Vurdering af brandmodstandsevne | VW-1 |
Kabeltype | Rundt kabel |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 45 °C |
Opbevaringstemperatur (T-T) | -20 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 85% |
Bæredygtighed | |
Indeholder ikke | Halogen |
Overholdelse af bæredygtighed | Ja |
Emballeringsdata | |
Kabeldiameter | 6,5 mm |
Vægt | 66 g |
Antal pr. pakke | 1 stk |
Pakkebredde | 128 mm |
Pakkedybde | 220 mm |
Pakkehøjde | 21 mm |
Pakkevægt | 70 g |
Tekniske detaljer | |
Compliance-certifikater | RoHS |
Logistik data | |
Hovedkassens bredde (udvendigt) | 500 mm |
Hovedkassens længde (udvendigt) | 320 mm |
Hovedkassen højde (udvendigt) | 210 mm |
Produkter pr. hovedkasse (udvendigt) | 80 stk |
