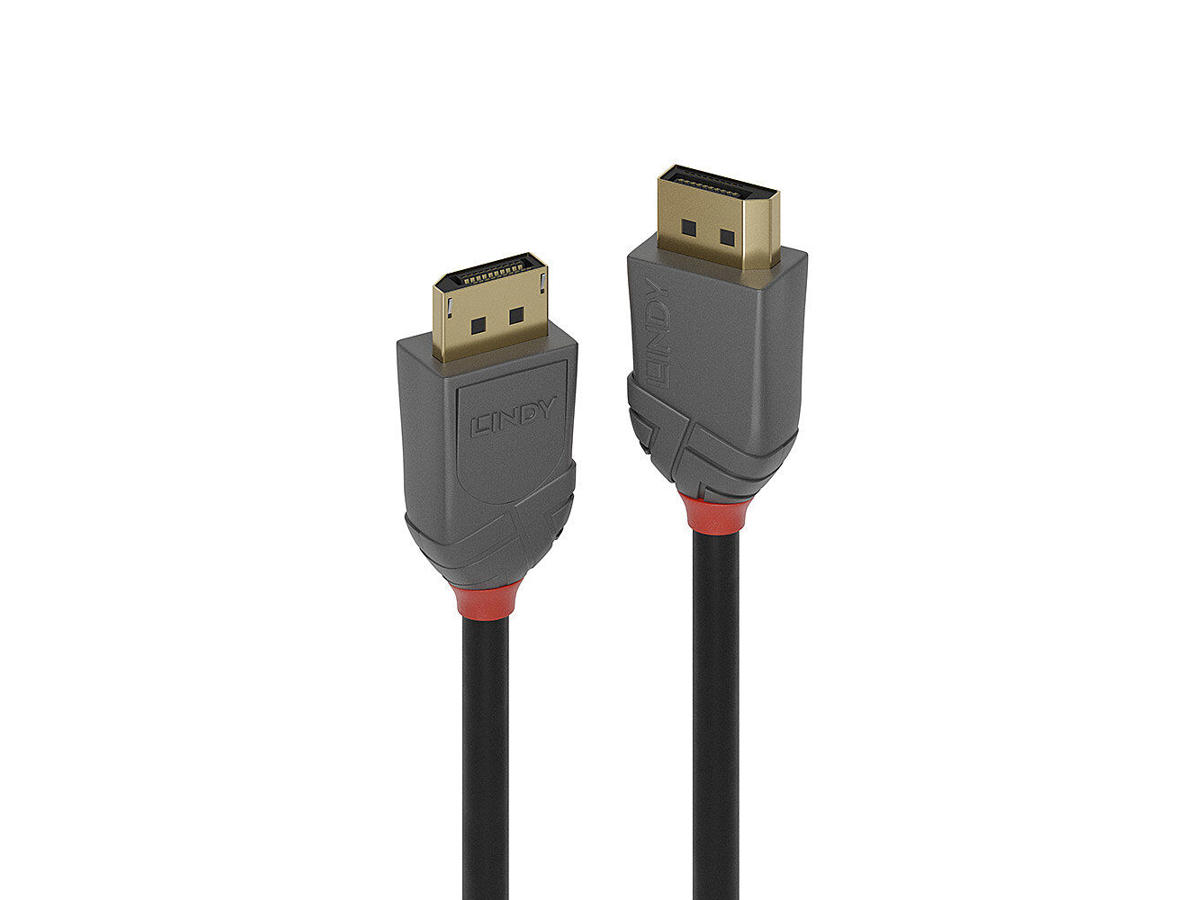

From the Lines cable connectivity concept developed by Lindy, Anthra Line DisplayPort cables are the professional choice for high performance connections in commercial AV and IT installations.
Anthra Line DisplayPort cables are premium connections that feature triple shielded with 28AWG tinned copper conductors for performance and corrosion resistance. High quality 24K gold plated contacts and connectors maintain optimal signal integrity and maximum reliability.
UHD resolutions up to 8K 7680x4320@60Hz 4:2:2 8bit, including 4K 4096x2160@144Hz 4:2:2 10bit and HDCP are supported. DisplayPort 1.4 technology and DisplayPort compliance certification ensures compatibility with all DisplayPort enabled devices.
Anthra Line DisplayPort cables are available in lengths from 0.5m to 5m.
Funktioner | |
Kabellængde | 1 m |
Stik 1 | DisplayPort |
Stik 2 | DisplayPort |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Maksimal opløsning | 7680 x 4320 pixel |
Produktfarve | Sort, Grå |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
Stikforbindelse kontakter plettering | Guld |
DisplayPort-version | 1.4 |
Understøttede grafikopløsninger | 4096 x 2160, 7680 x 4320 |
Maksimal opdateringshastighed | 60 Hz |
Kabelmateriale | Fortinnet kobber |
Kabelafskærmning | Kobber |
Materiale for kapper | Polyvinylchlorid (PVC) |
Materiale til stikhus | Acrylonitrilbutadienstyren |
AWG-ledningsstørrelse | 28 |
Dataoverførselshastighed | 32,4 Gbit/sek. |
Kontaktmateriale | Fosforbronze |
Tilslutningsmateriale | Guld |
Plug and play | Ja |
Bøjningsradius (min) | 5,84 cm |
Farveprøvetagning | 4:2:2 |
Kabeltype | Rundt kabel |
Nominel dæmpning | 100MHz-450MHz 5.1dB, 450MHz-8100MHz 33.28dB |
Certificering | RoHS, REACH, UL |
Driftsbetingelser | |
Driftstemperatur (T-T) | -20 - 80 °C |
Opbevaringstemperatur (T-T) | -25 - 85 °C |
Emballeringsdata | |
Kabeldiameter | 7,3 mm |
Stik 1 dimensioner (BxDxH) | 21 x 38,9 x 13,6 mm |
Stik 2 dimensioner (BxDxH) | 21 x 38,9 x 13,6 mm |
Antal pr. pakke | 1 stk |
Pakketype | Polybag |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
