Create high-resolution 4k x 2k connections with HBR2 support between your DisplayPort-equipped devices over longer distances

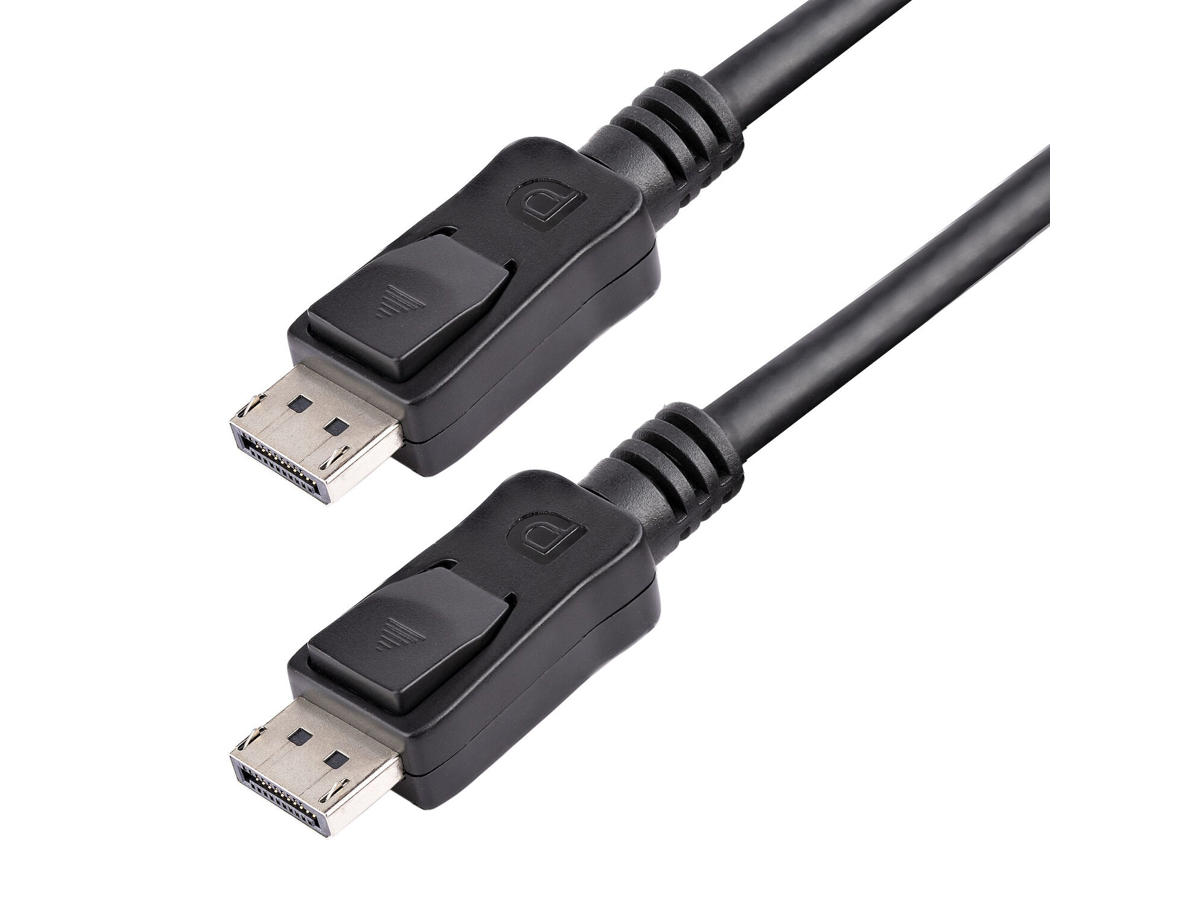

The DISPL5M DisplayPort™ 1.2 Cable with latches provides a secure connection between your DisplayPort-equipped devices and allows for a connection distance of up to 5-meters between your source and display.
The DP cable is capable of providing higher performance than either HDMI® or dual link DVI with support for high resolutions of up to 4k x 2k (4096 x 2160) @ 60Hz and a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The DISPL5M long DisplayPort cable is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
The StarTech.com Advantage
Funktioner | |
Kabellængde | 5 m |
Stik 1 | DisplayPort |
Stik 2 | DisplayPort |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Maksimal opløsning | 3840 x 2400 pixel |
Produktfarve | Sort |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
Stikforbindelse kontakter plettering | Nikkel |
DisplayPort-version | 1.2 |
Understøttede grafikopløsninger | 1920 x 1080 (HD 1080), 3840 x 2400, 2560 x 1600 (WQXGA) |
Maksimal opdateringshastighed | 60 Hz |
HDCP | Ja |
DisplayPort Content Protection (DPCP) | Ja |
Låsestik | Ja |
Kabel vurdering | CMG (CM) |
Kabelafskærmning | Aluminium mylar folie |
Materiale for kapper | Polyvinylchlorid (PVC) |
AWG-ledningsstørrelse | 28 |
Båndbredde | 21600 MB/s |
Plug and play | Ja |
Multi-Stream Transport (MST) | Ja |
Antal ledere | 19 |
Emballeringsdata | |
Kabeldiameter | 7,3 mm |
Vægt | 320 g |
Antal pr. pakke | 1 stk |
Pakkebredde | 200 mm |
Pakkedybde | 220 mm |
Pakkehøjde | 43 mm |
Pakkevægt | 320 g |
Tekniske detaljer | |
Compliance-certifikater | RoHS, CE |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
Hovedkassens bredde (udvendigt) | 330 mm |
Hovedkassens længde (udvendigt) | 500 mm |
Hovedkassen højde (udvendigt) | 280 mm |
Produkter pr. hovedkasse (udvendigt) | 30 stk |
