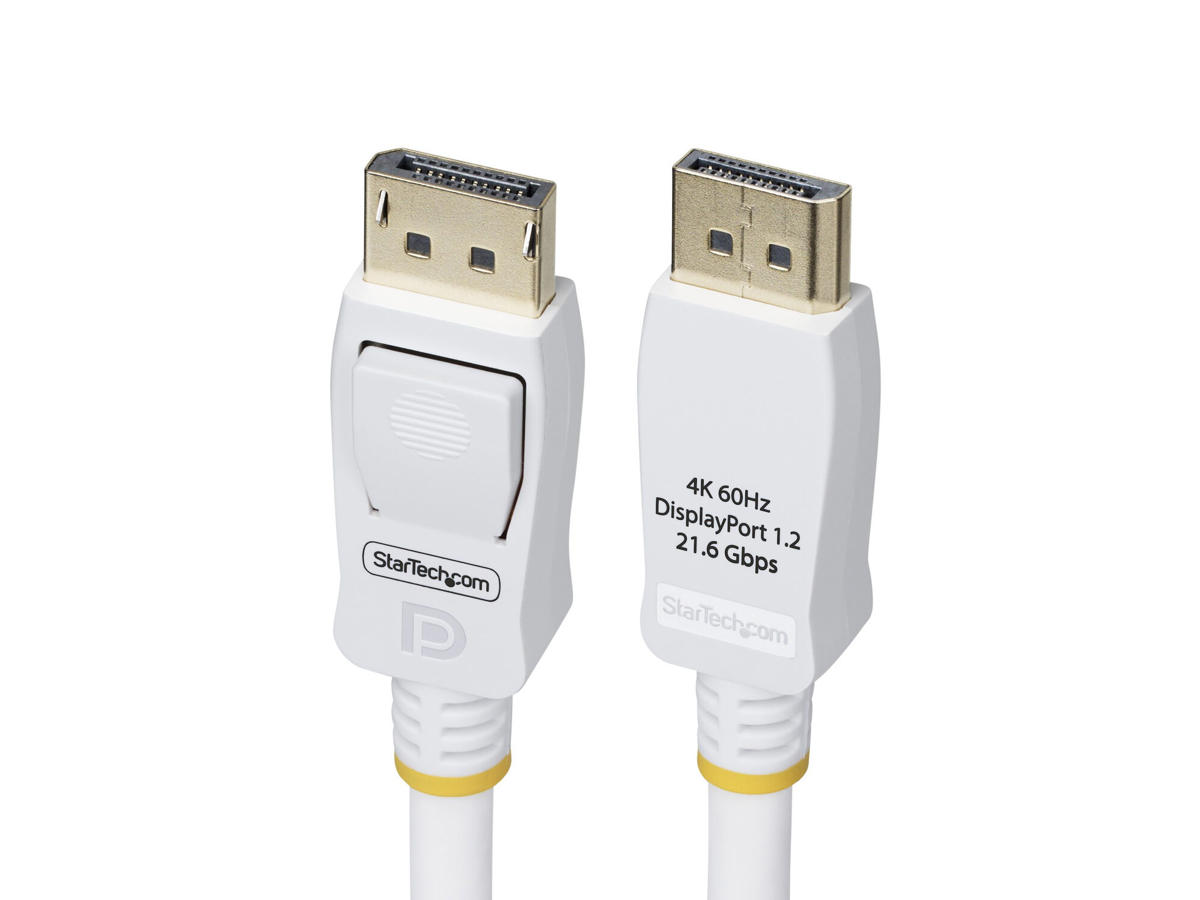

Enable seamless 4K 60Hz video using this VESA-Certified DP 1.2 Cable
Connect a 4K UHD DisplayPort monitor to a host computer or MST hub, using this VESA-Certified DisplayPort 1.2 Cable. The connector markings enable quick visual identification, distinguishing this cable from other similar-looking or unmarked DP cables. Eliminate guesswork and always choose the appropriate cable to support full DP 1.2 capabilities.
Seamless Compatibility
For seamless operation between DisplayPort-enabled devices, the DisplayPort 1.2 Cable is VESA Certified for guaranteed DP 1.2 and backward compatibility. Certified cables provide consistent, reliable performance across multiple resolutions and refresh rates.
Durable Design
This DisplayPort cable features a flexible TPE outer jacket that routes easily around corners and desk edges. Robust strain reliefs enable convenient positioning of the cable, and latching nickel-plated DP connectors attach securely to prevent accidental disconnection.
Supported DisplayPort 1.2 Features:
This DisplayPort cable supports full DP 1.2 features:
• Resolutions up to 4K 60Hz using a compatible DP source and display
• 21.6Gbps bandwidth supports high refresh rates including 1440p 144Hz and 1080p 240Hz
• High-Bandwidth Digital Content Protection (HDCP) 1.3 for a secure connection between source and display
• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• Up to 8 Uncompressed Digital Audio Channels
• 3D Stereo support for 3D video formats
• Backward compatible with previous DP versions
This DP 1.2 Cable is constructed with braided aluminum mylar shielding to minimize EMI for clear, consistent audio/video output and long-term reliable performance.
The StarTech.com Advantage
Funktioner | |
Kabellængde | 3 m |
Stik 1 | DisplayPort |
Stik 2 | DisplayPort |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Maksimal opløsning | 4096 x 2160 pixel |
Produktfarve | Hvid |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
Stikforbindelse kontakter plettering | Nikkel |
DisplayPort-version | 1.2 |
Understøttede grafikopløsninger | 2560 x 1440, 4096 x 2160, 1920 x 1080 (HD 1080) |
Understøttede videotilstande | 1080p, 1440p, 2160p |
Maksimal opdateringshastighed | 240 Hz |
HDCP | Ja |
HDCP-version | 1.3 |
Låsestik | Ja |
Kabelafskærmning | Aluminium mylar folie |
AWG-ledningsstørrelse | 28 |
Dataoverførselshastighed | 21,6 Gbit/sek. |
Antal kanaler | 7,1 kanaler |
Multi-Stream Transport (MST) | Ja |
Antal ledere | 19 |
Vurdering af brandmodstandsevne | VW-1 |
Kabeltype | Rundt kabel |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 50 °C |
Opbevaringstemperatur (T-T) | -20 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 5 - 85% |
Vægt & størrelser | |
Kabeldiameter | 7,5 mm |
Vægt | 192 g |
Emballeringsdata | |
Pakkebredde | 220 mm |
Pakkedybde | 200 mm |
Pakkehøjde | 20 mm |
Pakkevægt | 200 g |
Logistik data | |
Hovedkassens bredde (udvendigt) | 500 mm |
Hovedkassens længde (udvendigt) | 320 mm |
Hovedkassen højde (udvendigt) | 210 mm |
Produkter pr. hovedkasse (udvendigt) | 40 stk |
