Create a high-resolution 4k x 2k connection with HBR2 support between your Mini DisplayPort™-equipped laptop and a standard DP monitor

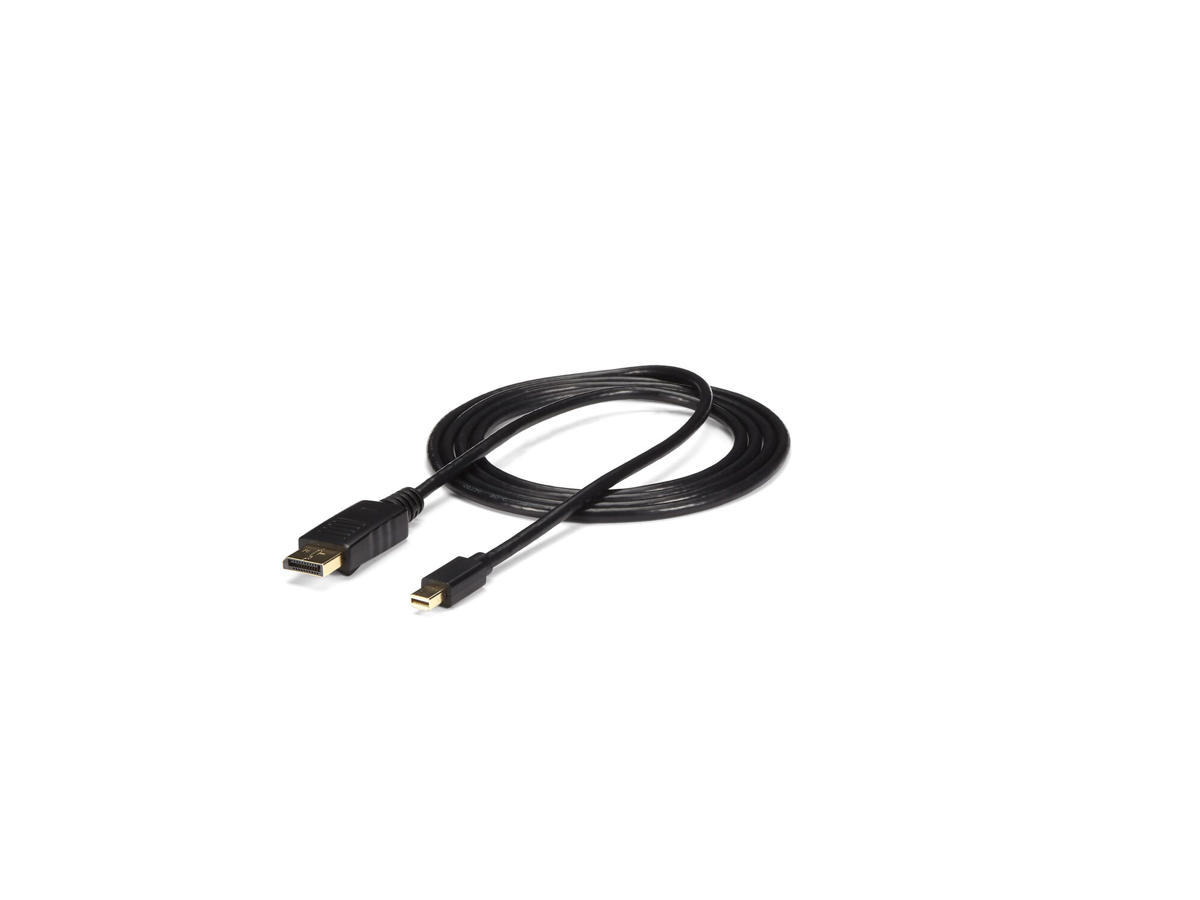

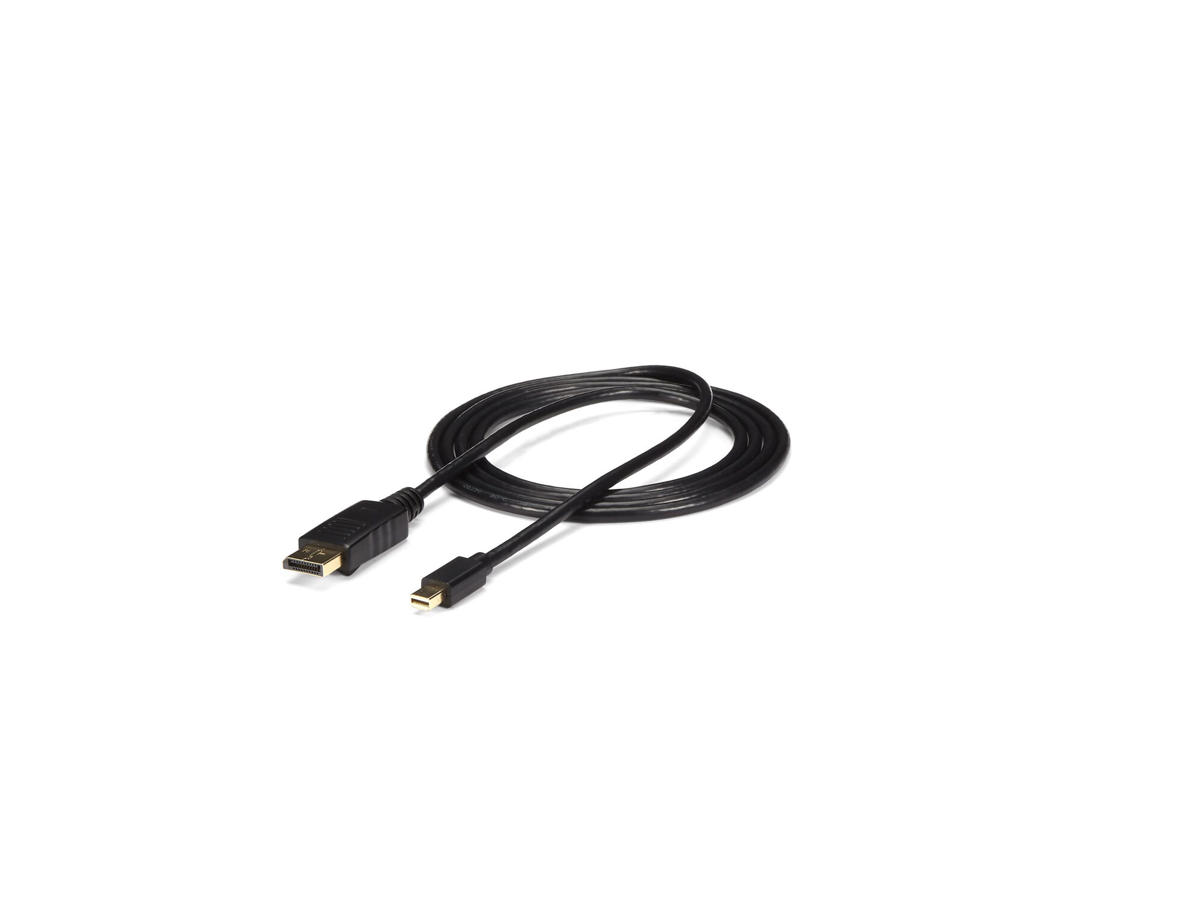

The MDP2DPMM10 10ft Mini DisplayPort™ to DisplayPort Adapter Cable, features a Mini DP male connector on one end, and a DP male connector on the other, allowing you to connect any Mini DisplayPort-equipped laptop (including the Mac® family of products) to an HDTV, monitor or projector that uses a standard DisplayPort connection.
The mDP to DP cable supports high resolutions of up to 4k x 2k (3840 x 2160) @ 60Hz with a maximum HBR2 bandwidth of 21.6 Gbps. The cable also supports Multi-Stream (MST) for daisy chaining multiple monitors and provides optional audio support.
The MDP2DPMM10 is backed by StarTech.com’s Lifetime Warranty, for guaranteed reliability and ensures that digitally protected content is displayed properly, with both HDCP and DPCP capability.
Please Note : Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
The StarTech.com Advantage
Funktioner | |
Kabellængde | 3 m |
Stik 1 | mini DisplayPort |
Stik 2 | DisplayPort |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Maksimal opløsning | 3840 x 2160 pixel |
Produktfarve | Sort |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
Stikforbindelse kontakter plettering | Guld |
DisplayPort-version | 1.2 |
Understøttede grafikopløsninger | 3840 x 2400, 2560 x 1600 (WQXGA) |
Maksimal opdateringshastighed | 120 Hz |
HDCP | Ja |
DisplayPort Content Protection (DPCP) | Ja |
Kabel vurdering | CMG (CM) |
Kabelafskærmning | Aluminium mylar folie |
Materiale for kapper | Polyvinylchlorid (PVC) |
AWG-ledningsstørrelse | 32 |
Båndbredde | 21600 MB/s |
Plug and play | Ja |
Multi-Stream Transport (MST) | Ja |
Antal ledere | 19 |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 45 °C |
Opbevaringstemperatur (T-T) | -10 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 85% |
Emballeringsdata | |
Kabeldiameter | 4,8 mm |
Vægt | 103,9 g |
Antal pr. pakke | 1 stk |
Pakkebredde | 200 mm |
Pakkedybde | 220 mm |
Pakkehøjde | 22 mm |
Pakkevægt | 112,9 g |
Tekniske detaljer | |
Compliance-certifikater | RoHS, CE |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
Hovedkassens bredde (udvendigt) | 332 mm |
Hovedkassens længde (udvendigt) | 504 mm |
Hovedkassen højde (udvendigt) | 215 mm |
Produkter pr. hovedkasse (udvendigt) | 50 stk |
