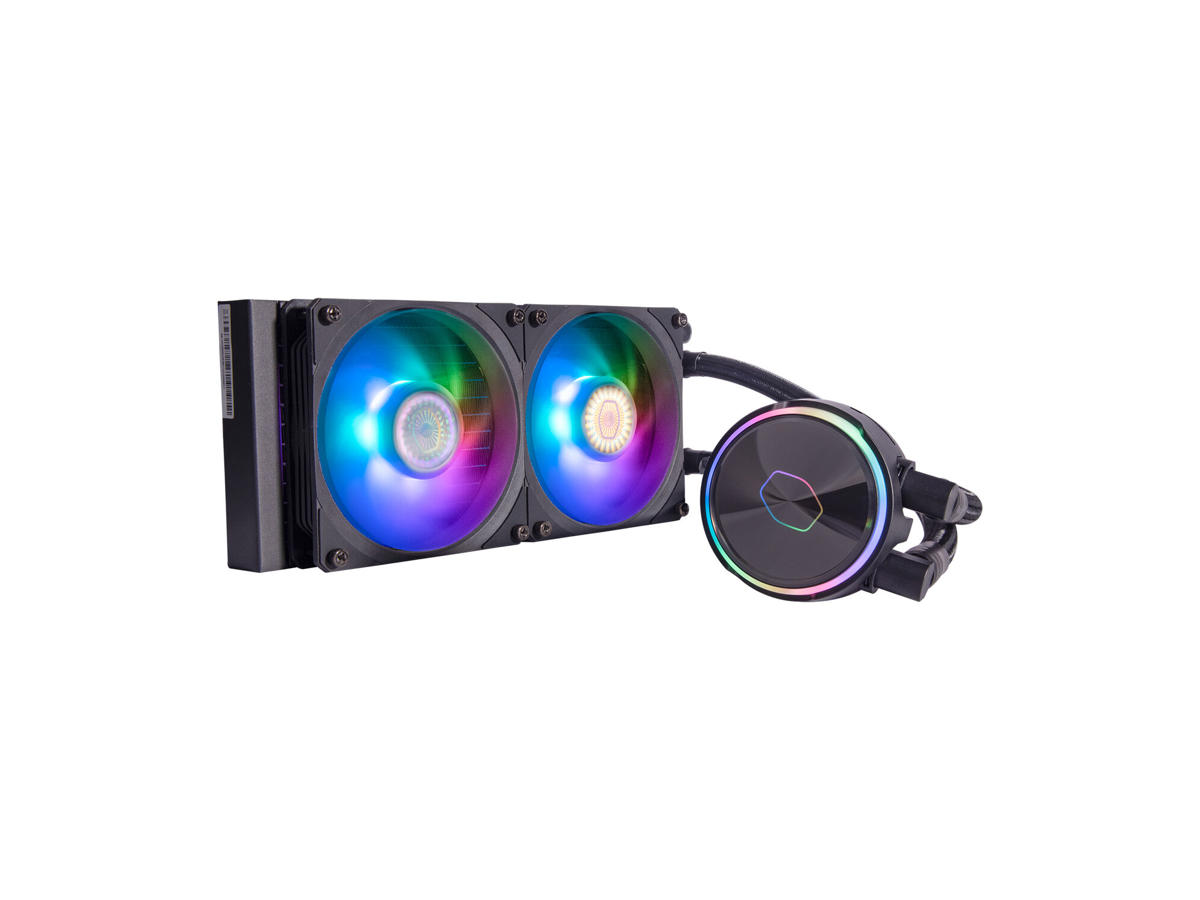

Cooling Uncompromised
Cooler Master's Flux Series is the materialization of revolutionary cooling performance. With enhancements from the pump to the radiator and fans, the Flux Series delivers precisely tuned performance for superior heat dissipation and cooling capabilities.
Premium Dual Chamber Pump
New Dual Chamber Pump more compact than before while delivering the perfect volume of flow to pressure for impressive cooling performance.
Fine Tuned Performance Ratio
Precision engineered ultra-thin spaded fins maximize microchannels to accurately target heat spots. Enlarged copper base surface area with optimized base thickness further accelerates heat transfer.
Ultimate Heat Exchange
High speed motor utilizing a ceramic bearing impeller forces balanced water flow to and from the radiator for ultimate efficiency of heat exchange.
Slim & Sleek Radiator
Low profile radiator with superior fin density coupled with performance fans dissipates heat rapidly.
Redesigned Flux Series Fan
Unique air balance fan featuring interconnecting blades specifically designed for the Flux Series. Strengthened structure provides better stability for steady high speed operation. Angled inner fan frame rim boosts air intake, with frame gap generating increased air pressure for improved cooling.
Dual Loop ARGB Pump
Dual loop pump ARGB with independent lighting customization showcases your visual creativity without sacrificing cooling capability.
Addressable Gen 2 RGB
Included Addressable Gen 2 RGB controller works with Cooler Master’s MasterPlus+ software to customize individual LED colors, effects, brightness and more – all from an intuitive, convenient interface.
Præstation | |
Passende til rumtype | Processor |
Type | Væskekølingssæt |
Ventilator diameter | 12 cm |
Understøttede procesorsokler | LGA 1150 (stik H3), LGA 1151 (stik H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Sokkel AM2, Sokkel AM2+, Sokkel AM3, Socket AM3+, Stik AM4, Socket FM1, Socket FM2, Socket FM2+, Socket TR4 |
Omdrejningshastighed (maks.) | 2300 rpm |
Støjniveau (høj hastighed) | 32 dB |
Maksimal luftstrøm | 72,37 kubikfod/min. |
Maksimalt lufttryk | 2,96 mmH2O |
Understøttelse af puls-bredde modulering (PWM) | Ja |
Pumpe støjniveau | 15 dB |
Pumpestik | 4-polet |
Pumpens middeltid til fejl (MTTF) | 210000 t |
Design | |
Produktfarve | Sort |
Køler materiale | Aluminium |
Belysning LED | Ja |
Belysningsfarve | Flere |
Ventilatorstik | 4-polet |
Strømstyring | |
Pumpens effektforbrug | 6 W |
Nominel strøm | 0,15 A |
Sikkerhedsstrøm | 0,3 At |
Pumpespænding | 12 V |
Blæser, spænding | 12 V |
Vægt & størrelser | |
Køler bredde | 27,7 cm |
Køler dybde | 12 cm |
Køler højde | 2,72 cm |
Pumpe bredde | 8,9 cm |
Pumpe dybde | 7,5 cm |
Pumpe højde | 4 cm |
Vægt | 1,43 kg |
Ventilator dimensioner (BxDxH) | 120 x 25 x 120 mm |
Pakkebredde | 285 mm |
Pakkedybde | 348 mm |
Pakkehøjde | 147 mm |
Pakkevægt | 2,58 kg |
Andre funktioner | |
Oprindelsesland | Kina |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
Hovedkassens bredde (udvendigt) | 460 mm |
Hovedkassens længde (udvendigt) | 585 mm |
Hovedkassen højde (udvendigt) | 372 mm |
Produkter pr. hovedkasse (udvendigt) | 6 stk |
