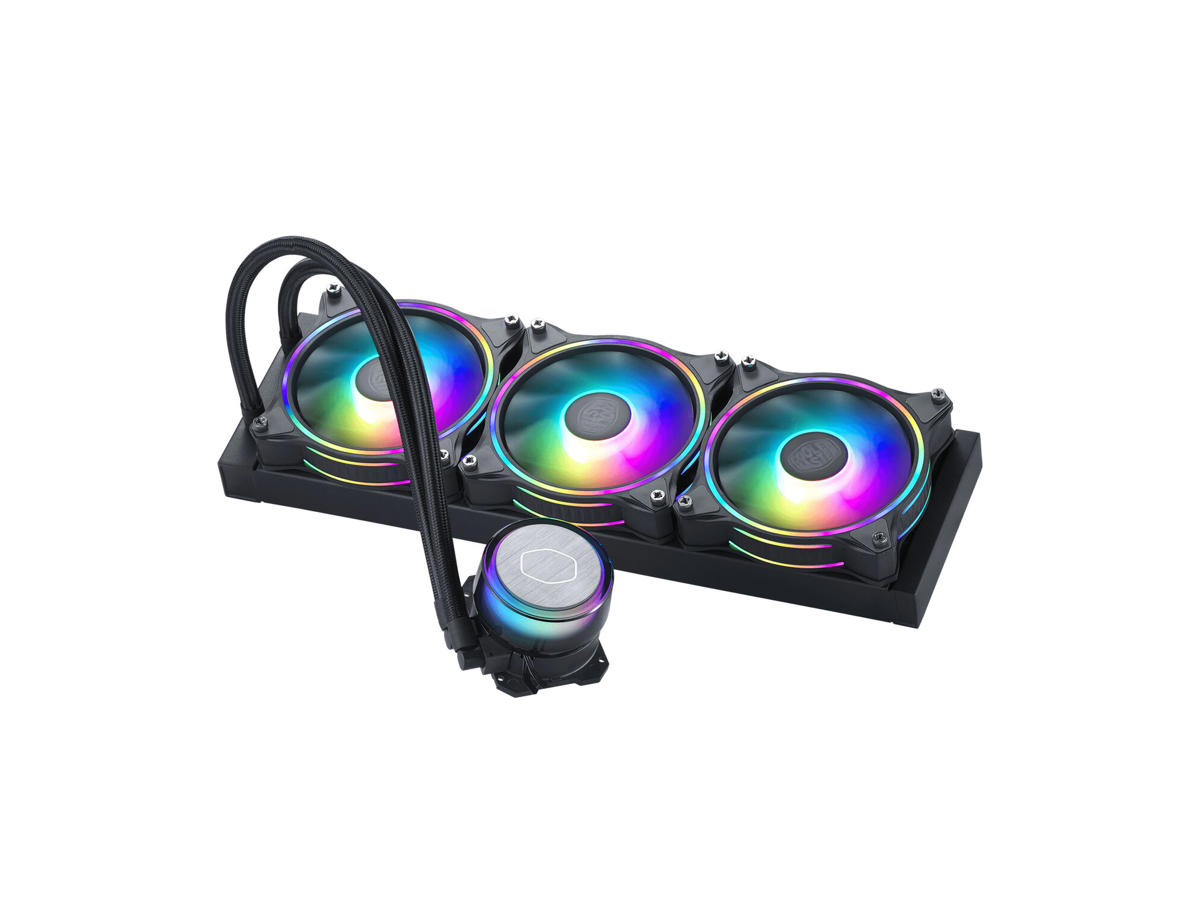

See It To Believe It
The MasterLiquid ML-Illusion series redefines lighting visuals with all new design features to the MasterLiquid Series. With 12 Addressable Gen 2 RGB LEDs integrated into the all new translucent pump, the color options are spectacularly customizable. Complemented with MasterFan MF120 Halo fans lighting features are more than even visual enthusiasts can handle. The Illusion is not only elegant, but extremely capable as well, featuring the 3rd generation Dual Chamber Pump for excellent cooling performance.
Translucent Dome
Stunning lighting visuals with translucent water chamber dome compatible with software customization
New 3rd Gen Dual Chamber Pump
Experience a quieter cooling performance with an improved design on the internal impeller and housing to enhance the cooling performance and efficiency while lowering the noise level.
Expanded Dissipation Surface Area
Widened radiator water channels for increased cooling surface area.
Masterfan MF120 Halo
Dual loop Addressable Gen 2 RGB fans with 24 individual ARGB LEDs Fully Customizable with MasterPlus+ software to ensure the most vibrant display of color
New Addressable Gen 2 RGB
Included Addressable Gen 2 RGB controller works with Cooler Master's MasterPlus+ software Customizing each individual LED in color, effect, brightness, and more - all from an intuitive, convenient interface
Præstation | |
Passende til rumtype | Processor |
Type | Alt-i-en væskekøler |
Ventilator diameter | 12 cm |
Understøttede procesorsokler | Sokkel AM2, Sokkel AM2+, Sokkel AM3, Socket AM3+, Stik AM4, Socket FM1, Socket FM2, Socket FM2+ |
Maksimal luftstrøm | 47,2 kubikfod/min. |
Understøttelse af puls-bredde modulering (PWM) | Ja |
Pumpe støjniveau | 10 dB |
Pumpestik | 3-stikben |
Blæser, hastighed (min.) | 650 rpm |
Blæser, hastighed (maks.) | 1800 rpm |
Ventilator statisk tryk | 1,6 mmH2O |
Pumpens middeltid til fejl (MTTF) | 70000 t |
Ventilatorens middeltid til fejl (MTTF) | 160000 t |
Design | |
Køler materiale | Aluminium |
Antal blæsere | 3 blæser(e) |
Belysning LED | Ja |
Belysningsfarve | Blå, Grøn, Rød |
Ventilatorstik | 4-polet |
Strømstyring | |
Ventilator strømforbrug | 2,36 W |
Pumpespænding | 12 V |
Blæser, spænding | 12 V |
Ventilatorstrøm | 0,25 A |
Vægt & størrelser | |
Køler bredde | 39,4 cm |
Køler dybde | 12 cm |
Køler højde | 2,72 cm |
Pumpe bredde | 8,14 cm |
Pumpe dybde | 7,6 cm |
Pumpe højde | 5,78 cm |
Vægt | 1,83 kg |
Ventilator dimensioner (BxDxH) | 120 x 120 x 25 mm |
Ventilator tykkelse | 2,5 cm |
Pakkebredde | 457 mm |
Pakkedybde | 575 mm |
Pakkehøjde | 265 mm |
Pakkevægt | 2,57 kg |
Emballage indhold | |
RGB-controller inkluderet | Ja |
Andre funktioner | |
Oprindelsesland | Kina |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
