Experience Cooling in High Definition

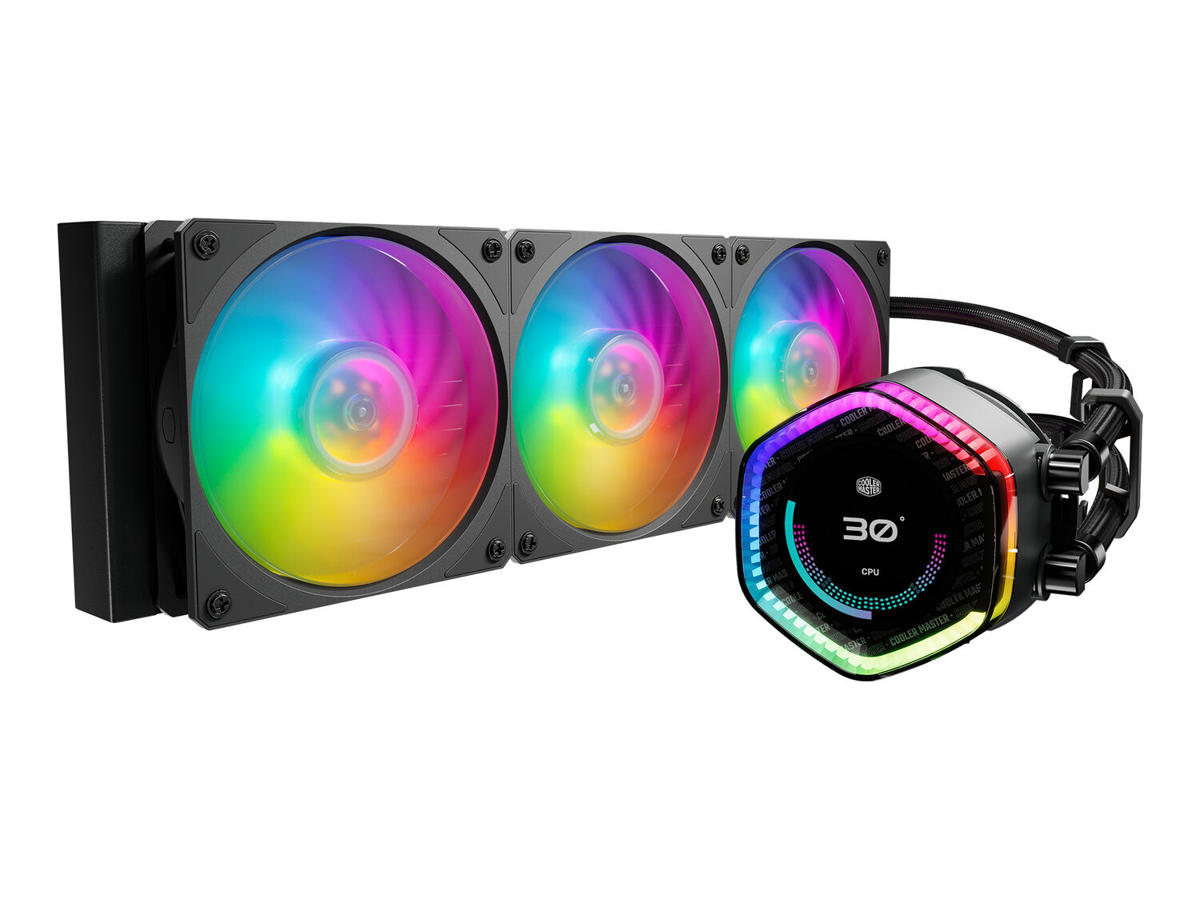

Cooler Master's latest flagship performance cooler, the MasterLiquid 360 Ion, is our first liquid cooler to feature an LCD display. The MasterLiquid 360 Ion gives you total display customization with top-tier cooling specs.
Gen X Dual Chamber Design
Our signature dual chamber pump has been refined for enhanced cooling synergy. Our impeller uses a single-piece design with improved structural strength and stability. The graphite ceramic shaft is highly sturdy and temperature resistant.
2.1-inch LCD Screen
The Ion's pump features a 2.1-inch LCD screen, fully customizable with our MasterCtrl software. Meanwhile, Our ARGB halo lighting has been designed with the Cooler Master's signature aesthetic in mind.
Highly Customizable and Compatible
Built-in features such as controllable ARGB lighting and automatic PWM adjustment are compatible with all major motherboards and allow for in-depth customization.
Mobius 120P ARGB fans
Pre-installed with three Mobius 120P ARGB fans for unmatched cooling performance. The interconnecting fan blades have been designed with a balanced P/Q curve suitable for both air and liquid cooling.
IN-HOUSE DESIGNED RADIATOR
A low-profile radiator with superior fin density and high-performance fans rapidly dissipates heat.
TUBE CLIPS INCLUDED
Included tube clips made to fit the AIO tube not only improve and strengthen your cooling setup, but they can also help with cable management.
ECO-FRIENDLY PACKAGING WITH ENHANCED PROTECTION
Building off the modular packaging of our Atmos cooler, the Ion's packaging features 30% reduced volume and an optimized internal cushioning structure.
USING EPDM + IIR COMPOSITE MATERIALS
Our AIO cooler uses ERPDM and IIR composite materials to lower the evapotranspiration rate and water flow resistance, at the same time, improve the air tightness and bendability
Præstation | |
Passende til rumtype | Processor |
Type | Alt-i-en væskekøler |
Ventilator diameter | 12 cm |
Understøttede procesorsokler | LGA 1150 (stik H3), LGA 1151 (stik H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1700, Stik AM4, Sokkel AM5 |
Maksimal luftstrøm | 75,2 kubikfod/min. |
Luftstrøm | 107,1 m³/t |
Maksimalt lufttryk | 3,63 mmH2O |
Understøttelse af puls-bredde modulering (PWM) | Ja |
Lejetype | Loop dynamisk kugleleje (LDB) |
Ventilatorens støjniveau (maks.) | 30 dB |
Pumpe støjniveau | 20 dB |
Pumpestik | 4-polet |
Antal pr. pakke | 1 stk |
Blæser, hastighed (maks.) | 2400 rpm |
Pumpens middeltid til fejl (MTTF) | 210000 t |
Ventilatorens middeltid til fejl (MTTF) | 200000 t |
Design | |
Produktfarve | Sort |
Køler materiale | Aluminium |
Antal blæsere | 3 blæser(e) |
Belysning LED | Ja |
Belysningsfarve | Flere |
Ventilatorstik | 4-polet |
Strømstyring | |
Nominel spænding | 12 V |
Pumpens effektforbrug | 6,75 W |
Sikkerhedsstrøm | 0,35 At |
Pumpespænding | 12 V |
Blæser, spænding | 12 V |
Ventilatorstrøm | 0,18 A |
Vægt & størrelser | |
Køler bredde | 12 cm |
Køler dybde | 39,4 cm |
Køler højde | 2,72 cm |
Pumpe bredde | 8,36 cm |
Pumpe dybde | 8,83 cm |
Pumpe højde | 6,57 cm |
Vægt | 2 kg |
Ventilator dimensioner (BxDxH) | 120 x 120 x 25 mm |
Pakkebredde | 211 mm |
Pakkedybde | 410 mm |
Pakkehøjde | 136 mm |
Pakkevægt | 3,12 kg |
Andre funktioner | |
Oprindelsesland | Kina |
Logistik data | |
Hovedkassens bredde (udvendigt) | 430 mm |
Hovedkassens længde (udvendigt) | 430 mm |
Hovedkassen højde (udvendigt) | 300 mm |
Produkter pr. hovedkasse (udvendigt) | 4 stk |
