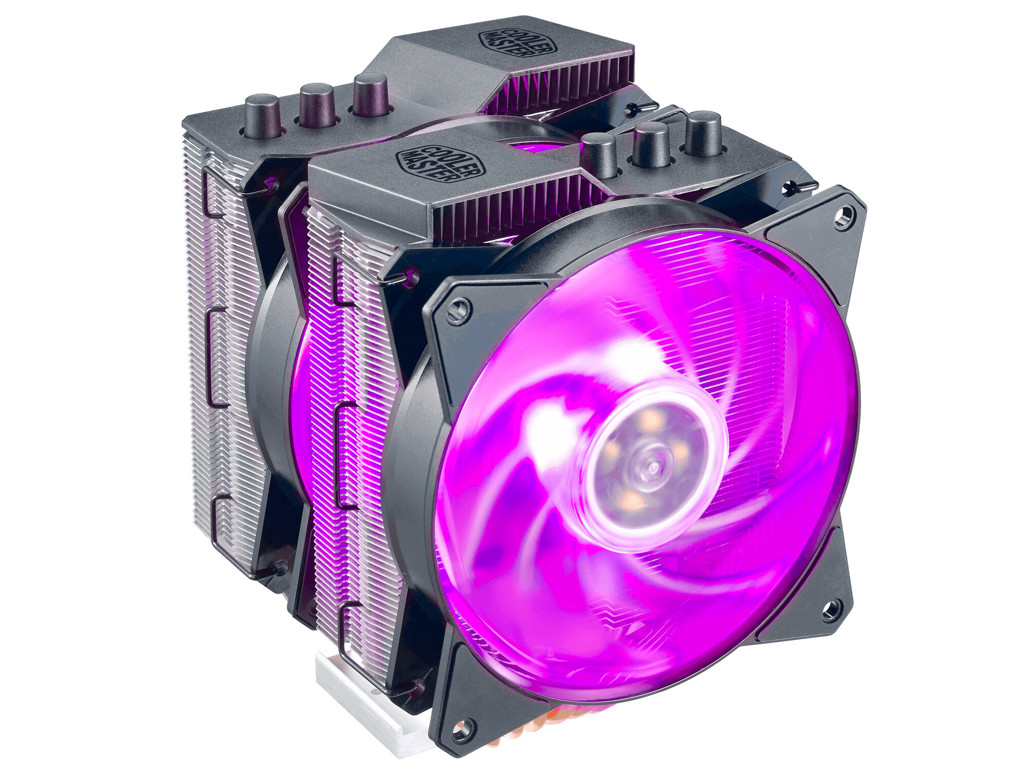

Supercharged Cooling Performance
Dual Tower Heatsinks & Fans
The dual tower heatsink has a combination of 2 sets of heatsink towers with 2 sets of MasterFan MF120R RGB. The uniquely designed heatsink allows bigger and more spread out surface area, while the MF120R RGB fans give added air pressure from the outside and inside the heatsink to generate massive cooling performance.
More Is Better
Add up to 3 fans to accelerate the air pressure and removal of heat with the 'Push and Pull'. One fan is placed at the front to pull cool air in, the second fanis placed inbetween the heatsinks, with the option to add third to maximize the heat pass-through.
2x Masterfan MF120R RGB
The MasterFan MF120R RGB operates quietly even at high speeds. It is designed with a combination of jet engine and helicopter blades for the static air pressure you need without sacrificing airflow.
45% More Contact With CDC 2.0
Continuous Direct Contact Technology 2.0 (CDC 2.0), the contact surface area of heatpipes to the base is increased by 45%. This further enhances the heat transfer mechanism and significantly improves conductance and cooling capability.
More Heatpipes
MasterAir MA620P has 6 x heatpipes for fast transfer of heat, to make sure the CPU is running at optimal performance. Combined with the twin tower and dual fan design, you can even maximum TDP for the extreme overclockers.
RGB Led Illumination
(Controller Included)
A wired RGB LED controller is included 100M to personalize the RGB lighting anytime you want (no software needed). Switch it up depending on your mood, the possibilities are not limitless.
Quick And Easy Installation
Tool-free mounting kit makes installation a breeze. Universal retention brackets are included, with full compatbiliity for:
Intel© LGA 1151 / 1150 / 1155 / 1156 / 1366 / 775
AMD© AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1
Præstation | |
Passende til rumtype | Processor |
Type | Køler |
Ventilator diameter | 12 cm |
Understøttede procesorsokler | LGA 1150 (stik H3), LGA 1151 (stik H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, LGA 775 (Socket T), Sokkel AM2, Sokkel AM2+, Sokkel AM3, Socket AM3+, Stik AM4, Socket FM1, Socket FM2, Socket FM2+ |
Omdrejningshastighed (min.) | 600 rpm |
Omdrejningshastighed (maks.) | 1800 rpm |
Støvniveau med LNA (maks.) | 31 dB |
Maksimal luftstrøm | 53,4 kubikfod/min. |
Maksimalt lufttryk | 1,65 mmH2O |
Understøttelse af puls-bredde modulering (PWM) | Ja |
Design | |
Produktfarve | Sort |
Antal blæsere | 2 blæser(e) |
Antal ventilatorblade | 9 |
Lamelmateriale | Aluminium |
Antal varmerør | 6 |
Belysning LED | Ja |
Belysningsfarve | Blå, Grøn, Rød |
Ventilatorstik | 4-polet |
Strømstyring | |
Strømforbrug (typisk) | 3,6 W |
Nominel spænding | 12 V |
Nominel strøm | 0,3 A |
Sikkerhedsstrøm | 0,37 At |
Vægt & størrelser | |
Vægt | 1,31 kg |
Ventilator dimensioner (BxDxH) | 120 x 120 x 25 mm |
Ventilator tykkelse | 2,5 cm |
Kølelegemets vægt | 850 g |
Varmerør diameter | 6 mm |
Pakkebredde | 158 mm |
Pakkedybde | 173 mm |
Pakkehøjde | 230 mm |
Pakkevægt | 1,57 kg |
Emballage indhold | |
Fjernbetjening inkluderet | Ja |
Andre funktioner | |
Belysningstilstande | Breathing, Color cycle, Customize, Mirage, Stjerner, Statisk |
Dimensioner for kølelegeme (BxDxH) | 110,1 x 116 x 165 mm |
Oprindelsesland | Kina |
Middeltid til fejl (MTTF) | 160000 t |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
Hovedkassens bredde (udvendigt) | 365 mm |
Hovedkassens længde (udvendigt) | 497 mm |
Hovedkassen højde (udvendigt) | 265 mm |
Produkter pr. hovedkasse (udvendigt) | 6 stk |
