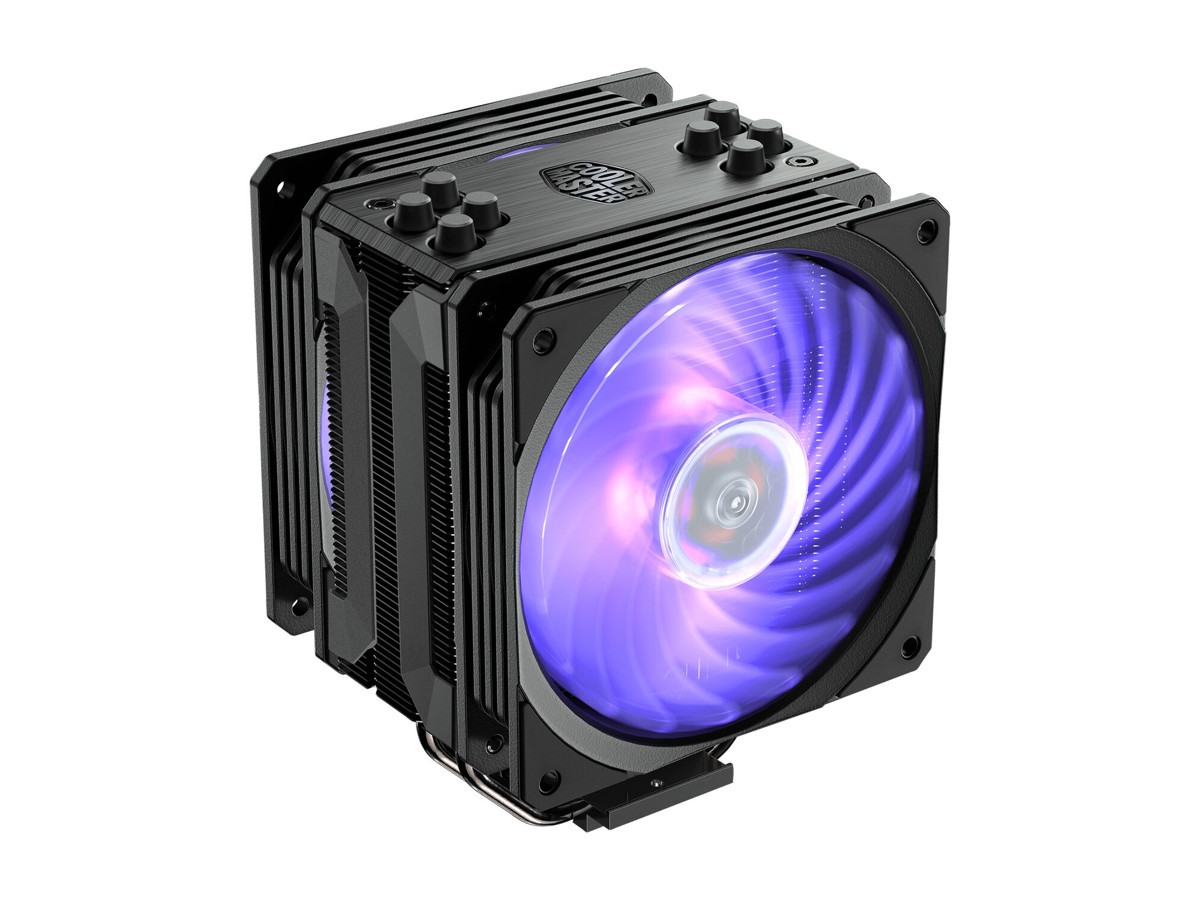

Precise Air Flow With Nickle Black
Stacked fin array ensures least airflow resistance which allows cooler air flow into the heatsink.
The nickel plated jet black also enhances radiation cooling performance
Direct Contact Technology
4 heat pipes with exclusive Direct Contact Technology providing effective and excellent heat dissipation
The New SF120R RGB Fan
Is certified to sync with Motherboard RGB software or controlled by our controller.
The wide speed range can be fine-tuned for maximum cooling performance or silent operation.
Optional Push-pull Fan Configuration
To avoid dynamic losses and help accelerate heat exhaust, an additional fan helps pulling heat away faster from heatsink.
RGB in the Palm of Your Hand with Included Wired RGB Controller
A compact size RGB LED controller that allows you to easily customize your RGB devices without the need for either an RGB capable motherboard or software.
You can have the colorful rig you’ve always wanted with just the touch of a button.
Universal Mounting Kits
The improved universal bracket design ensures easy and worry free installation on all platforms.
Præstation | |
Passende til rumtype | Processor |
Type | Køler |
Ventilator diameter | 12 cm |
Understøttede procesorsokler | LGA 1150 (stik H3), LGA 1151 (stik H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 1366 (Socket B), LGA 1700, LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Sokkel AM2, Sokkel AM2+, Sokkel AM3, Socket AM3+, Stik AM4, Socket FM1, Socket FM2, Socket FM2+ |
Omdrejningshastighed (min.) | 650 rpm |
Omdrejningshastighed (maks.) | 2000 rpm |
Støjniveau (lav hastighed) | 8 dB |
Støjniveau (høj hastighed) | 30 dB |
Maksimal luftstrøm | 59 kubikfod/min. |
Maksimalt lufttryk | 2,1 mmH2O |
Understøttelse af puls-bredde modulering (PWM) | Ja |
Ventilatorens middeltid til fejl (MTTF) | 160000 t |
Design | |
Produktfarve | Sort |
Lamelmateriale | Aluminium |
Antal varmerør | 4 |
Belysning LED | Ja |
Belysningsfarve | Flere |
Ventilatorstik | 4-polet |
Strømstyring | |
Strømforbrug (typisk) | 1,92 W |
Sikkerhedsstrøm | 0,37 At |
Blæser, spænding | 12 V |
Ventilatorstrøm | 0,16 A |
Vægt & størrelser | |
Bredde | 79,6 mm |
Dybde | 120 mm |
Højde | 158,8 mm |
Vægt | 920 g |
Ventilator dimensioner (BxDxH) | 120 x 25 x 120 mm |
Pakkebredde | 100 mm |
Pakkedybde | 160 mm |
Pakkehøjde | 251 mm |
Pakkevægt | 1,14 kg |
Emballage indhold | |
Monteringssæt | Ja |
RGB-controller inkluderet | Ja |
Andre funktioner | |
Oprindelsesland | Kina |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
Hovedkassens bredde (udvendigt) | 335 mm |
Hovedkassens længde (udvendigt) | 515 mm |
Hovedkassen højde (udvendigt) | 285 mm |
Produkter pr. hovedkasse (udvendigt) | 10 stk |
