Extend a USB 2.0 port up to 50m using low cost CAT5/5e/6 network cable (not included)
Power over Cable requires a single power supply to be connected to the transmitter only
Supports USB 2.0 High Speed and USB 1.1 Full Speed / Low Speed
Plug & Play installation
2 year warranty

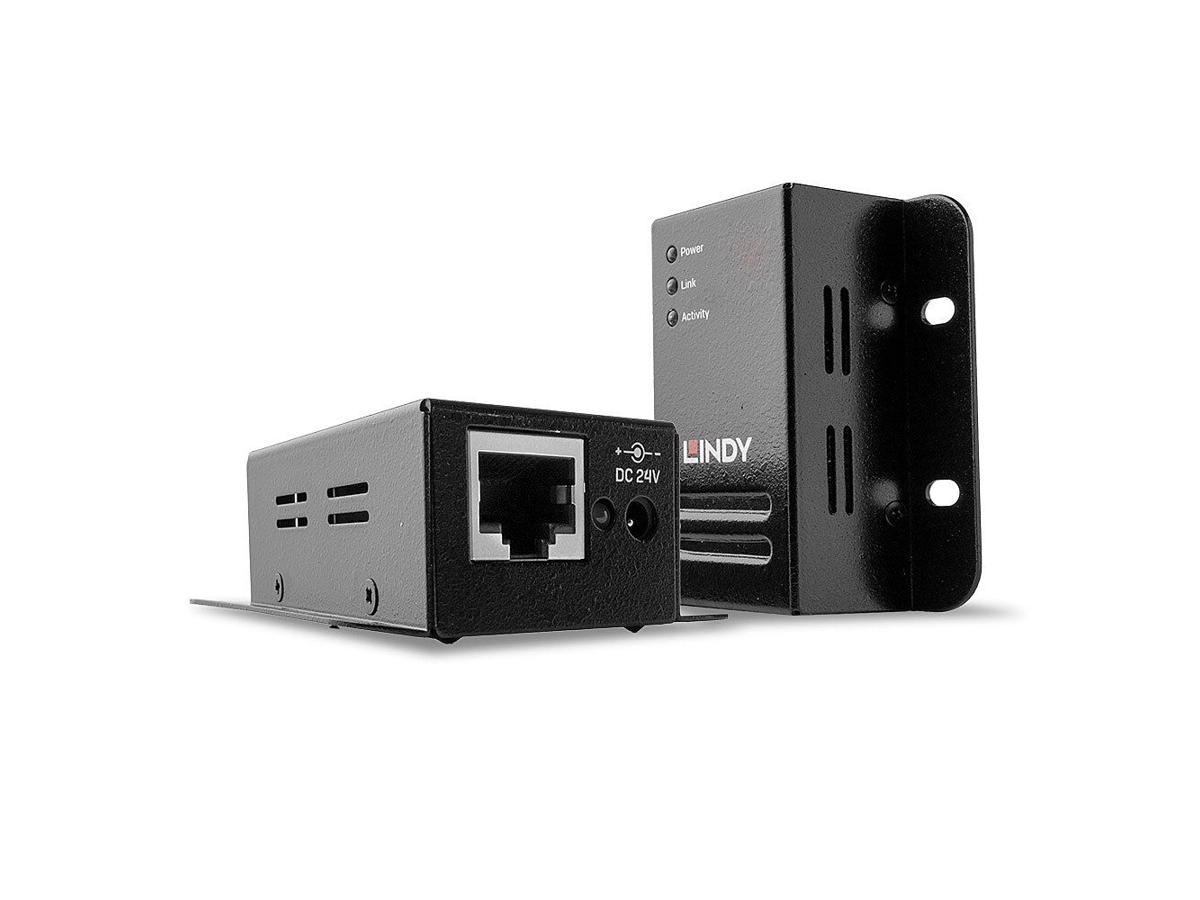

The Lindy USB 2.0 Cat.6 Extender can be used to extend the distance between a USB peripheral device and the host computer by up to 50m. A standard, low cost Cat.5/5e/6 network cable (not included) is used to bridge the connection between the transmitter and the receiver unit. For best performance and compatibility, we recommend the use of solid core patched cables.
The Extender features Power over Cable, which requires a single power supply only to be connected to the transmitter unit. This handy feature allows the receiver unit and connected devices to be located more freely as no power supply is required. With robust metal housing and integrated mounting brackets this Extender is the ideal solution for industrial environments.
Præstation | |
Type | Netværkssender & -modtager |
Maksimal overførselsafstand | 50 m |
Dataoverførselshastighed | 480 Mbit/s |
Understøttede kabeltyper | Cat5, Cat5e, Cat6 |
Chipsæt | NS1021 |
Plug and play | Ja |
Porte & Grænseflader | |
Antal RJ-45 porte (sender) | 1 |
Antal RJ-45 porte (modtager) | 1 |
Antal USB 2.0-porte | 2 |
DC-in-stik | Ja |
Design | |
Produktfarve | Sort |
Husmateriale | Metal |
LED-indikatorer | Ja |
Certificering | CE, UKCA, FCC, RoHS, REACH |
Strømstyring | |
Indgangsstrøm | 0.25 A |
Udgangsspænding | 24 V |
Udgangsstrøm | 0,5 A |
Strøm over Ethernet (PoE) | Ja |
Effektnote | 3.5/1.35mm DC |
Inkluderede strømstik typer | AU, EU, UK, US |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 70 °C |
Opbevaringstemperatur (T-T) | -20 - 80 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 90% |
Relativ luftfugtighed ved opbevaring (H-H) | 0 - 90% |
Vægt & størrelser | |
Vægt | 300 g |
Transmitter bredde | 6 cm |
Transmitter dybde | 6,7 cm |
Transmitter højde | 2,3 cm |
Modtager bredde | 6 cm |
Modtager dybde | 6,7 cm |
Modtager højde | 2,3 cm |
Emballage indhold | |
Kabler inkluderet | USB Type-A til USB Type-B |
Brugervejledning | Ja |
Emballeringsdata | |
Pakketype | Kasse |
Pakkebredde | 185 mm |
Pakkedybde | 140 mm |
Pakkehøjde | 55 mm |
Pakkevægt | 400 g |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
