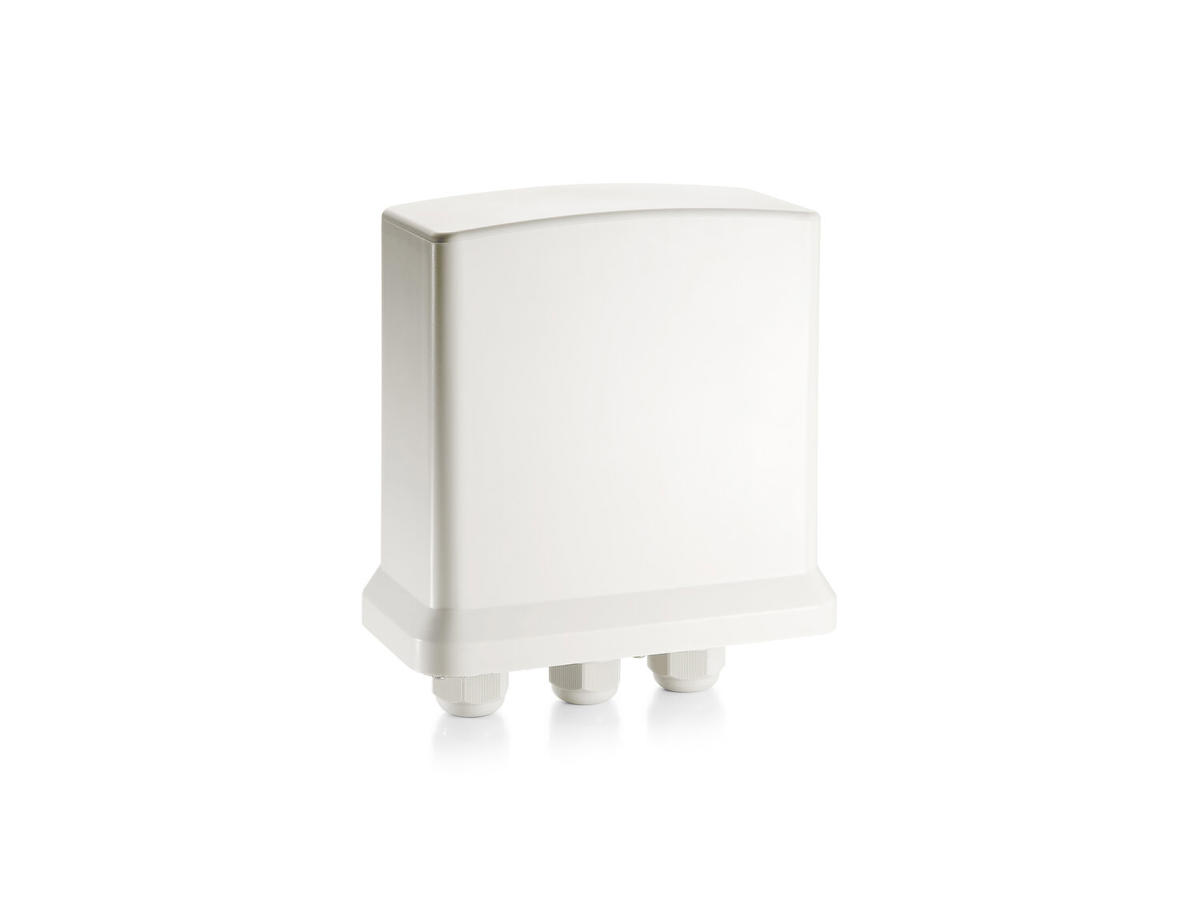

LevelOne POR-1220 netværk forlænger Netværksgentager Hvid
Jeg ønsker at handle som
Gem til senere
- Forventet på lager 21-03-2025
Mere information
Extend the reach of your Gigabit PoE-Plus devices
For system integrators looking for a professional solution to help extend their Outdoor Gigabit PoE (802.3af/at) network, POR-1220 is the perfect accessory to increase your network performance.
Normal cable runs only reach 100 meters, but with POR-1220 installers can extend the PoE network performance up to 200 meters. Furthermore, you can triple your range or even more by daisy-chaining* multiple PoE repeaters.
* Maximum distance depends on the required Wattage of the PD.
Simple yet durable, no software required
As a Gigabit PoE-Plus Repeater, POR-1220 receives all power from the Power Sending Equipment (PSE), such as a Gigabit PoE-Plus switch. This means that POR-1220 uses no external power supply, making it the most flexible option for system integrators looking for an easy, affordable solution to increase the distance to the attached devices. POR-1220 has 3 RJ-45 ports for easy deployment, 1 “IN” port that accepts the power and data for the first 100 meters, and 2 “OUT” ports for 1 PoE (power + data) and 1 non-PoE (data only) installation, that boosts and extends the device an additional 100 meters. With a durable metal housing, POR-1220 fits into any tight deployments.
Applications
POR-1220 is a long-ranged solution for deploying PoE IP Digital Signage and any Gigabit PoE PD powered by 802.3at Gigabit PSE.
IP65-compliant
The POR-1220 is compliant to IP65, and is therefore weatherproof from snow, rain, storms, desert heat, etc. For deployment in any harsh weather conditions, this PoE Repeater is up to the challenge.
- High Power Midspan PoE compliant to simplify deployment and installation
- Built-in 2 output ports for 1 PoE and 1 non-PoE devices
- 10/100/1000Mbps wire speed transmission and reception
- Weatherproof IP65-rated housing
- Forwards Power over Ethernet to remote device
- Extends Gigabit PoE connection for another 100 meters
- Multiple PoE repeaters can be deployed by daisy chain to extend range
- Simple Plug and Play installation, no additional power supply requiredPræstation Type Netværksgentager Maksimal overførselsafstand 100 m Dataoverførselshastighed 1000 Mbit/s Netværk Kabelteknologi 10/100/1000Base-T(X) Netværksstandarder IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x Porte & Grænseflader Ethernet LAN-porte (RJ-45) 3 Power over Ethernet (PoE) porte, antal 2 Design Produktfarve Hvid Monteringstype Væg Oprindelsesland Taiwan Certificering FCC Part 15, CE, RoHS Strømstyring Strømforbrug (maks.) 2,5 W Strøm over Ethernet (PoE) Ja Power over Ethernet (PoE) spændingsområde 44 - 57 V Driftsbetingelser Driftstemperatur (T-T) 0 - 50 °C Opbevaringstemperatur (T-T) 0 - 70 °C Relativ luftfugtighed ved drift (H-H) 5 - 95% Relativ luftfugtighed ved opbevaring (H-H) 5 - 95% Vægt & størrelser Bredde 200 mm Dybde 110 mm Højde 240 mm Vægt 700 g Tekniske detaljer Compliance-certifikater RoHS Emballage indhold Hurtig start guide Ja Monteringssæt til væggen Ja Emballeringsdata Pakkebredde 255 mm Pakkedybde 110 mm Pakkehøjde 210 mm Pakkevægt 900 g Logistik data Harmoniseret systemkode (HS) 85176990
