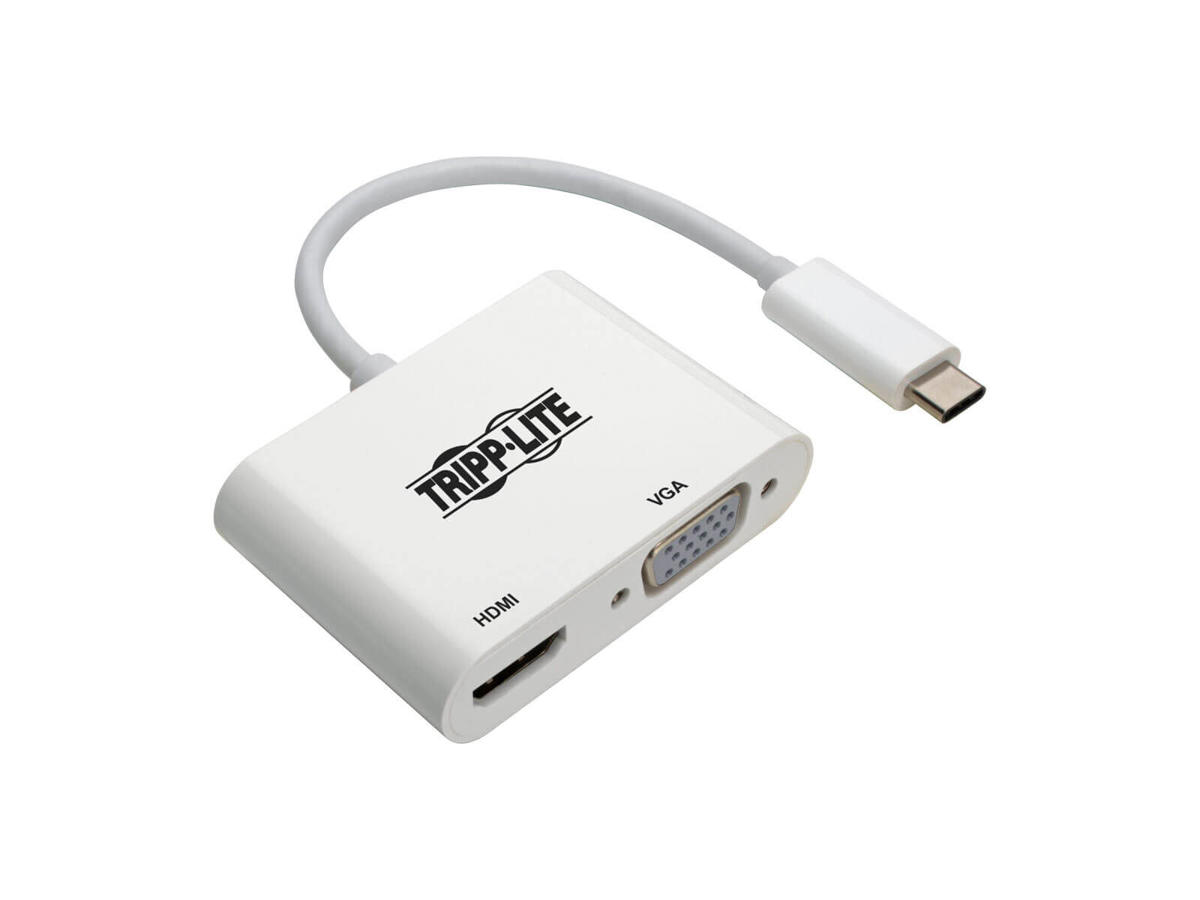

The U444-06N-HV4K USB 3.2 Gen 1 USB-C to HDMI/VGA 4K Adapter (M/2xF) helps you transmit digital audio and video from your tablet, laptop, notebook, MacBook, Chromebook, smartphone or PC to a high-definition television, monitor or projector. It’s an ideal tool for giving video presentations in conference rooms and classrooms, editing multiple documents on a larger screen or streaming video for digital signage.
With a source device that also supports USB DisplayPort Alternate Mode, you can extend video from your primary display to another, duplicate the same video on both displays or change the second display to your primary.
The plug-and-play USB-C to HDMI adapter requires no software, drivers or external power. Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time. Then, connect the HDMI port or the HD15 port to your HDMI or VGA display using a compatible cable (sold separately).
The U444-06N-HV4K meets HDCP 1.4 specifications. It supports HDMI video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz and VGA video resolutions up to 1920 x 1200 (including 1080p) at 60 Hz. It also supports 300 MHz/3 Gbps per channel bandwidth (9 Gbps total). The HDMI port delivers rich 7.1-channel surround sound.
Connects an HDMI or VGA Display to Your USB-C or Thunderbolt 3 Device
Compatible with USB-C or Thunderbolt 3 source devices that support USB DisplayPort Alternate Mode
Ideal for giving video presentations, editing multiple documents or streaming video for digital signage
Supports 300 MHz/3 Gbps per channel bandwidth (9 Gbps total)
Meets HDCP 1.4 specifications
Common Applications
Extends video from your primary display to another
Duplicates the same video on 2 displays
Converts a secondary display to your primary display
Crystal-Clear Video and Digital Audio
Supports HDMI video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
Supports VGA video resolutions up to 1920 x 1200 (1080p) @ 60 Hz
Supports 24-bit Deep Color (8 bits per channel) on the VGA port and 30-bit Deep Color (10 bits per channel) on the HDMI port
Supports 7.1-channel surround sound (HDMI only)
Built-In Cable with Reversible USB-C Connector
Fumble-free reversible USB-C plug connects in either direction for quick connection every time
Ready for Instant Use
Plug-and-play operation with no software, drivers or external power required
About the size of a credit card for easy carrying in a pocket, purse or laptop bag
Backward compatible with non-4K displays
Funktioner | |
Kabellængde | 0,1524 m |
Stik 1 | USB Type-C |
Stik 2 | HDMI + VGA (D-Sub) |
Stik 1 køn | Hanstik |
Stik 2 køn | Hunstik |
Stikforbindelse kontakter plettering | Nikkel |
Maksimal opløsning | 3840 x 2160 pixel |
Understøttede grafikopløsninger | 3840 x 2160 |
Produktfarve | Hvid |
Oprindelsesland | Vietnam |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 45 °C |
Opbevaringstemperatur (T-T) | -10 - 70 °C |
Vægt & størrelser | |
Vægt | 30 g |
Bredde | 40 mm |
Dybde | 60 mm |
Højde | 14 mm |
Emballeringsdata | |
Pakkebredde | 119,9 mm |
Pakkedybde | 100,1 mm |
Pakkehøjde | 20,1 mm |
Pakkevægt | 40 g |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
Hovedkassens bredde (udvendigt) | 255 mm |
Hovedkassens længde (udvendigt) | 119,9 mm |
Hovedkassen højde (udvendigt) | 115,1 mm |
Hovedkassens bruttovægt (udvendigt) | 660 g |
Produkter pr. hovedkasse (udvendigt) | 10 stk |
Hovedkasse (udvendig) GTIN (EAN/UPC) | 10037332205701 |
