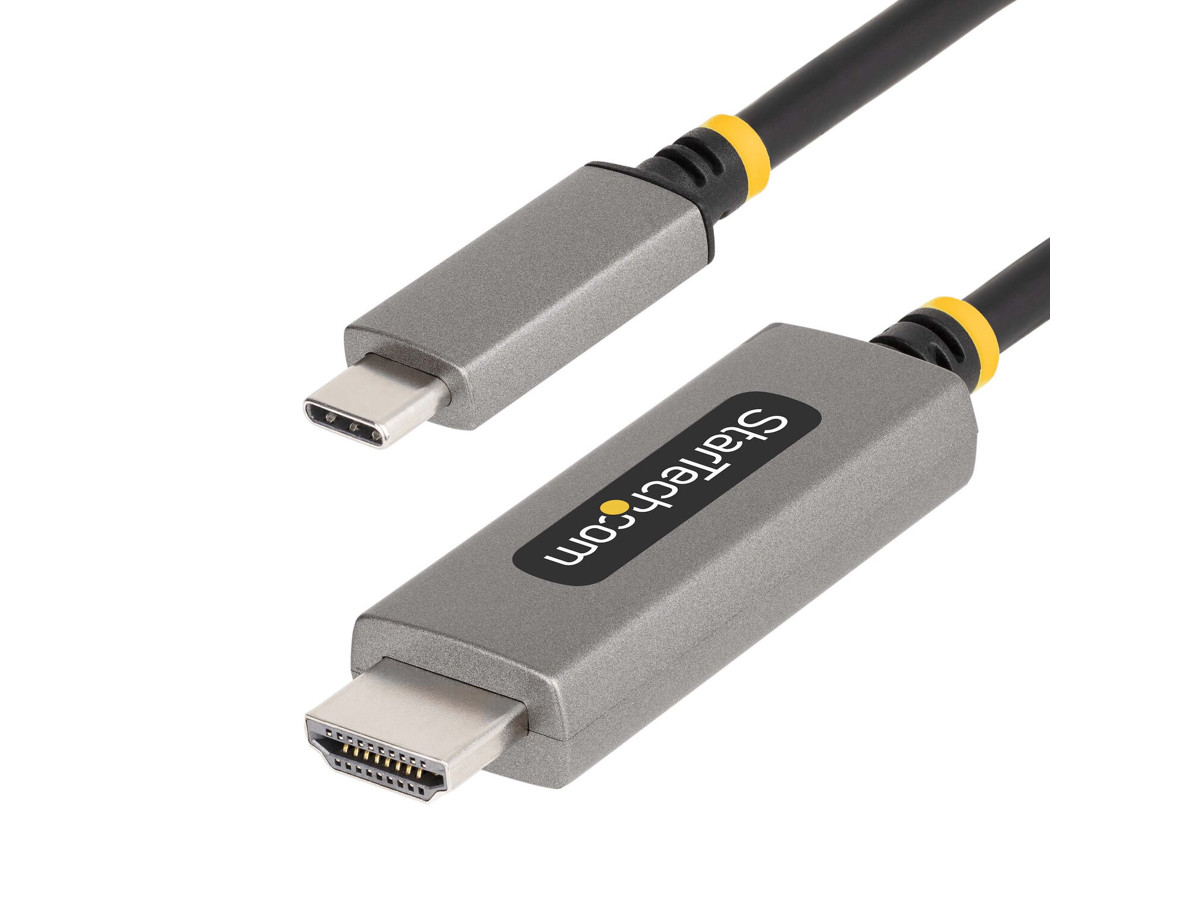

Connect a DP Alt Mode enabled USB-C source to an HDMI monitor, located up to 3.3ft (1m) away, with support for HDR video and resolutions up to 8K 60Hz
Connect an 8K 60Hz or a 4K 144Hz HDMI display to a DP Alt Mode-enabled USB Type-C source, at a distance of up to 3.3ft (1m), using this USB-C to HDMI Adapter Cable.
High-Resolution HDR Video
This USB-C to HDMI Cable enables resolutions of up to 8K 60Hz and is HDMI 2.1 FRL complaint. It supports HDR10, HDCP 1.x/2.2/2.3, and DSC 1.1/1.2a. The adapter cable supports 7.1 channel audio with Dolby Atmos and DTS:X.
Hardware Platform
Single Monitor
DisplayPort Alt Mode
Intel 11 th Gen & Later Processors
8K 60Hz or 4K 144Hz*
DisplayPort 1.4
Nvidia RTX3000 and AMD RX6000 or later
8K 60Hz or 4K 144Hz
DisplayPort 1.4
Intel 10th Gen & Earlier
4K 60Hz
DisplayPort 1.4
Apple M1/M2/M3 + Pro & Max
4K 60Hz**
DisplayPort 1.4
*DSC support required to reach maximum resolution capabilities on Intel 11th Gen or later
**Apple MacBook's with M1/M2 silicon can only support up to 4K 60Hz through HDMI
Universal Compatibility
The USB-C to HDMI Converter Cable is compatible with laptops and devices from various brands such as Dell, HP, Lenovo, Microsoft, and more. It works with all hardware platforms and any operating system. The USB Type-C to HDMI Cable requires no drivers or software and works with USB-C DP Alt Mode, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.
Note: Apple M1/M2/M3 devices, including MacBook Pro, can only support up to 4K 60Hz over USB-C DP Alt Mode and cannot achieve 8K 60Hz.
Thoughtfully Designed
Combining a video adapter and cable minimizes potential points of failure and signal loss. Adaptive receiver equalization optimizes the input signal and amplifies the output signal to ensure compatibility with high-resolution monitors. The cable is equipped with cage shielding to prevent Electromagnetic Interference (EMI).
The StarTech.com Advantage
Funktioner | |
Kabellængde | 1 m |
Stik 1 | USB Type-C |
Stik 2 | HDMI Type A (Standard) |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
HDMI-version | 2.1 |
HDCP | Ja |
HDCP-version | 1.4/2.2/2.3 |
USB type-C DisplayPort alternativ tilstand | Ja |
High Dynamic Range (HDR) understøttet | Ja |
Maksimal opløsning | 7680 x 4320 pixel |
Understøttede grafikopløsninger | 1920 x 1080 (HD 1080), 2560 x 1440, 3840 x 2160, 5120 x 1440, 7680 x 4320 |
Maksimal opdateringshastighed | 144 Hz |
Opdateringshastighed ved maksimal opløsning | 60 Hz |
Produktfarve | Grå |
Chipsæt | VMM7100 |
Materiale for kapper | Polyvinylchlorid (PVC) |
Kabeltype | Rundt kabel |
Materiale til stikhus | Plast |
Understøttede lydkanaler | 7.1 |
Plug and play | Ja |
Konverter type | Aktiv videoomformer |
HDR-teknologi (High Dynamic Range) | High Dynamic Range 10 (HDR10) |
Dolby-teknologier | DTS:X, Dolby Atmos |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | 0 - 75 °C |
Relativ luftfugtighed ved drift (H-H) | 0 - 80% |
Vægt & størrelser | |
Kabeldiameter | 4,8 mm |
Vægt | 130 g |
Emballeringsdata | |
Antal pr. pakke | 1 stk |
Pakkebredde | 200 mm |
Pakkedybde | 220 mm |
Pakkehøjde | 12 mm |
Pakkevægt | 64,5 g |
Tekniske detaljer | |
Compliance-certifikater | CE, RoHS |
Logistik data | |
Hovedkassens bredde (udvendigt) | 415 mm |
Hovedkassens længde (udvendigt) | 435 mm |
Hovedkassen højde (udvendigt) | 420 mm |
Produkter pr. hovedkasse (udvendigt) | 160 stk |
Bæredygtighed | |
Overholdelse af bæredygtighed | Ja |
