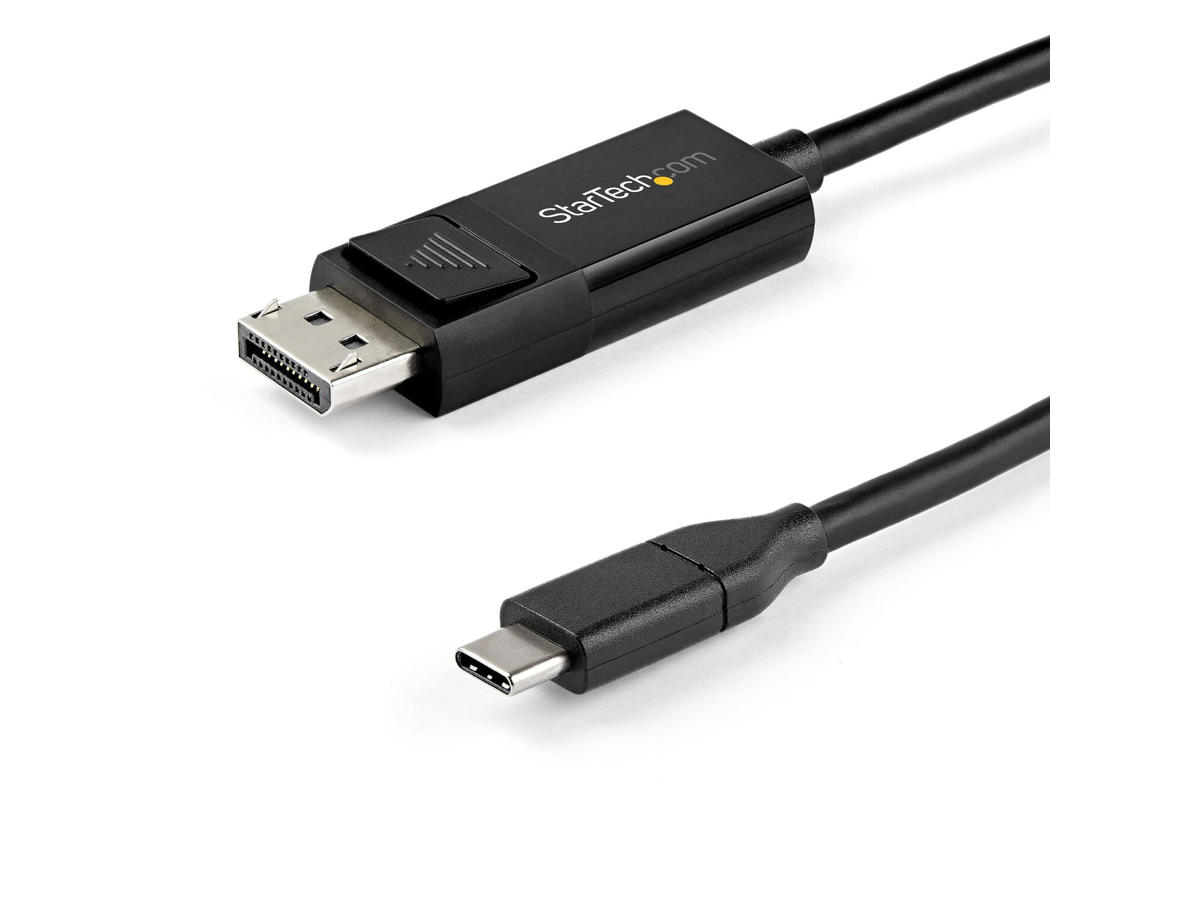

USB Type-C™ Adapter Cable | 8K 60Hz | Thunderbolt 3™ | HBR3
This USB-C™ to DisplayPort™ 1.4 cable lets you connect your USB Type-C™ (or Thunderbolt 3™) device to a DisplayPort display, or a DP device to a USB-C display with just one cable.
Unparalleled Performance with Support for 8K 60Hz
Supporting four times the resolution of 4K, this 8K DP 1.4 adapter cable delivers the stunning quality of UHD at resolutions up to 7680×4320; and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps.
The video cable is backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.
IT Pro Performance
This adapter features a unique video signal booster which amplifies the signal and ensures reliable performance, even with lower quality cables. The amplifier also increases the max. supported DP cable length compared to other brands.
Easy & Clutter-Free Installation
At 6.6 ft. (2 m) in length, this bidirectional adapter cable delivers a direct connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For shorter installations, we also offer a 3.3 ft. (1 m) USB-C to DP cable, enabling you to choose the right cable length for your custom installation needs.
Convenient, Bi-Directional Support
Use this USB-C to DisplayPort adapter cable to output 8K video and audio to a DP display from the USB Type-C (or Thunderbolt 3) port on your laptop or mobile device. With bi-directional capabilities, this cable can also connect your DisplayPort-enabled devices to a display featuring USB-C input. For added convenience, the cable supports both Mac & Windows operating systems.
CDP2DP142MBD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note:
• Your USB 3.1 Type-C device must support DP Alt Mode to work with this cable.
• To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.
• This cable is not compatible with the Surface Dock 2.
The StarTech.com Advantage
Funktioner | |
Kabellængde | 2 m |
Stik 1 | USB Type-C |
Stik 2 | DisplayPort |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
HDCP | Ja |
HDCP-version | 1.4/2.2 |
DisplayPort-version | 1.4 |
Maksimal opløsning | 7680 x 4320 pixel |
Maksimal opdateringshastighed | 60 Hz |
Produktfarve | Sort |
Chipsæt | Chrontel - CH7213C-BF, Texas Instruments - TUSB544, VIA Labs - VL170 |
Understøttede lydkanaler | 7.1 |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 45 °C |
Opbevaringstemperatur (T-T) | -10 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 85% |
Vægt & størrelser | |
Vægt | 79 g |
Emballeringsdata | |
Antal pr. pakke | 1 stk |
Pakkebredde | 125 mm |
Pakkedybde | 225 mm |
Pakkehøjde | 25 mm |
Pakkevægt | 85 g |
Tekniske detaljer | |
Compliance-certifikater | CE, RoHS |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
Hovedkassens bredde (udvendigt) | 320 mm |
Hovedkassens længde (udvendigt) | 500 mm |
Hovedkassen højde (udvendigt) | 210 mm |
Produkter pr. hovedkasse (udvendigt) | 80 stk |
Bæredygtighed | |
Overholdelse af bæredygtighed | Ja |
