Connect a DisplayPort Alt Mode-enabled USB-C source to a DisplayPort monitor with support for resolutions up to 8K at 60Hz

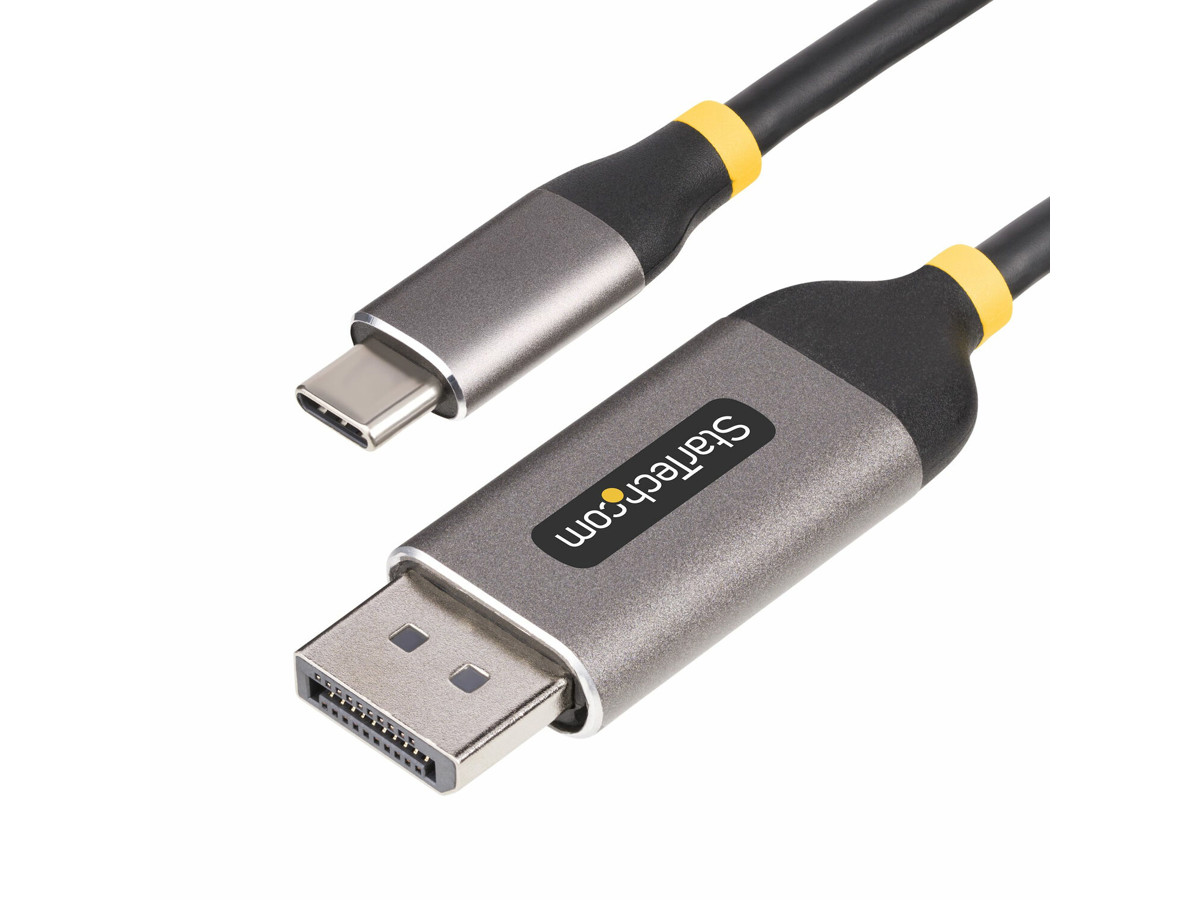

Connect an 8K 60Hz or 4K 144Hz DisplayPort monitor to a DP Alt Mode-enabled USB Type-C source up to 9.8ft (3m) away with this USB-C to DisplayPort adapter cable.
High-Resolution HDR Video
This USB-C to DisplayPort Cable enables resolutions of up to 8K 60Hz and is DisplayPort 1.4 compliant. It supports HDR10, DSC, and 2 channel audio.
Hardware Platform
Single Monitor
DisplayPort Alt Mode
Intel 11th Gen & Later Processors
8K 60Hz or 4K 144Hz*
DisplayPort 1.4
Nvidia RTX3000 and AMD RX6000 or later
8K 60Hz or 4K 144Hz
DisplayPort 1.4
Intel 10th Gen & Earlier
4K 60Hz
DisplayPort 1.4
Apple M1/M2/M3 + Pro & Max
4K 60Hz**
DisplayPort 1.4
*DSC support required to reach maximum resolution capabilities on Intel 11th Gen or later
**Apple MacBook's with M1/M2/M3 Pro/Max silicon do not support 8K 60Hz over USB-C DP Alt Mode
Universal Compatibility
The USB-C to DisplayPort Converter Cable is compatible with laptops and devices from various brands such as Dell, HP, Lenovo, Microsoft, and more. It works with all hardware platforms and any operating system. The USB Type-C to DisplayPort Cable requires no drivers or software and works with USB-C DP Alt Mode, USB4, Thunderbolt 3, and Thunderbolt 4 laptops and devices.
Thoughtfully Designed
Combining a video adapter and cable minimizes potential points of failure and signal loss. A latching DisplayPort connector reduces the risk of accidental disconnections. The cable is equipped with aluminum connector shells, providing enhanced durability, and shielding from Electromagnetic Interference (EMI).
The StarTech.com Advantage
Funktioner | |
Kabellængde | 3 m |
Stik 1 | USB Type-C |
Stik 2 | DisplayPort |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
HDCP | Ja |
HDCP-version | 1.4/2.2/2.3 |
DisplayPort-version | 1.4 |
USB type-C DisplayPort alternativ tilstand | Ja |
High Dynamic Range (HDR) understøttet | Ja |
Understøttede grafikopløsninger | 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 768, 1280 x 768 (WXGA), 1280 x 800, 1280 x 800 (WXGA), 1280 x 960, 1360 x 768 (WXGA), 1400 x 1050 (SXGA+), 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1200 (WUXGA), 2560 x 1080, 3440 x 1440, 3840 x 2160, 4096 x 2160, 5120 x 1440, 5120 x 2880, 7680 x 4320 |
Båndbredde | 32400 MB/s |
Maksimal opdateringshastighed | 144 Hz |
Opdateringshastighed ved maksimal opløsning | 60 Hz |
Produktfarve | Sort, Grå |
Chipsæt | VL103 |
Materiale for kapper | Termoplastisk elastomer (TPE) |
Kabeltype | Rundt kabel |
Plug and play | Ja |
Låsestik | Ja |
Driftsbetingelser | |
Driftstemperatur (T-T) | -20 - 70 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
Vægt & størrelser | |
Kabeldiameter | 4,3 mm |
Vægt | 111 g |
Emballeringsdata | |
Pakkebredde | 150 mm |
Pakkedybde | 100 mm |
Pakkehøjde | 100 mm |
Pakkevægt | 80 g |
Tekniske detaljer | |
Compliance-certifikater | RoHS |
Logistik data | |
Hovedkassens bredde (udvendigt) | 300 mm |
Hovedkassens længde (udvendigt) | 300 mm |
Hovedkassen højde (udvendigt) | 350 mm |
Produkter pr. hovedkasse (udvendigt) | 100 stk |
Bæredygtighed | |
Overholdelse af bæredygtighed | Ja |
