Extended Cable | DP 1.4 | HBR3 | Thunderbolt 3 Compatible

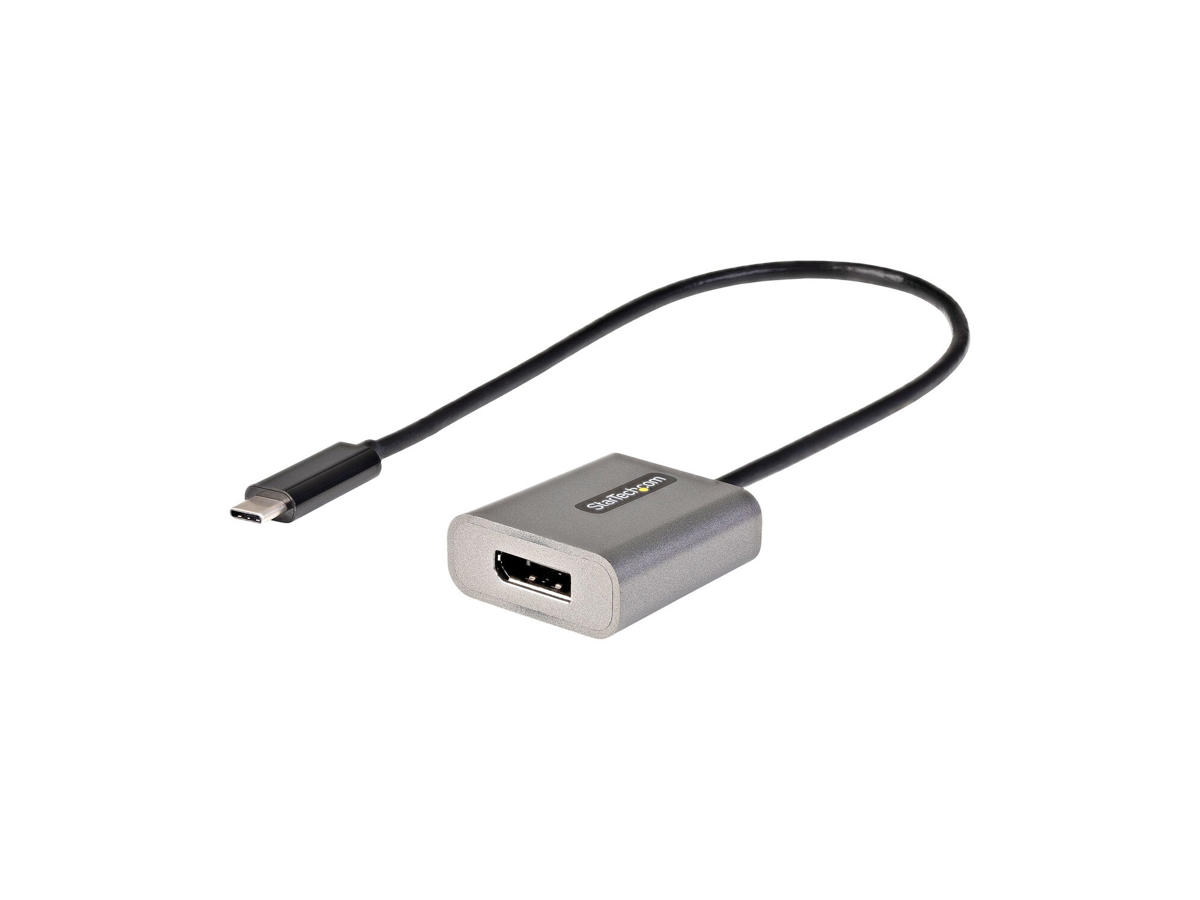

This USB-C™ to DisplayPort™ adapter enables you to output DP video and audio from the USB Type-C™ port on your laptop, tablet, smartphone or other USB C device.
Extended Cable Length
This USB C adapter is equipped with an extra-long 12" (30cm) attached cable, providing an extended reach to reduce port and connector strain on 2-in-1 devices or laptops on risers stands.
Ultra HD 4K & 8K Resolution
The adapter lets you harness the video capabilities that are built into your computer's USB Type-C connection, to deliver the astonishing quality of UHD to your 4K 60Hz display. This makes it easier for you to multitask while working on the most resource-demanding applications imaginable.
With this adapter, you can also achieve an output resolution of up to 7680x4320 at 60Hz (with a laptop supporting DP 1.4 and DSC) or 7680x4320 at 30Hz (without DSC), which is perfect for performing high-resolution tasks such as viewing 8K video. Plus, the DP 1.4 adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other workspace applications while future-proofing for 8K implementation.
Host
DP 1.4 HBR3 (with DSC)
DP 1.4 HBR3 (without DSC)
DP 1.2 HBR2
8K Output
7680x4320 @ 60Hz
7680x4320 @ 30Hz
N/A
4K Output
3840x2160 @ 60Hz
3840x2160 @ 60Hz
3480x2160 @ 60Hz
1080p Output
1920x1200 @ 60Hz
1920x1200 @ 60Hz
1920x1200 @ 60Hz
Ultimate Portability
This USB Type-C video adapter is highly portable with a small footprint and lightweight design that's easy to tuck into your laptop bag while commuting between your home, office or traveling for business.
The CDP2DPEC is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Notes:
• To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4
• Your USB-C device must support DisplayPort over USB-C (DP alt mode) to work with this adapter
The StarTech.com Advantage
Præstation | |
DVI-udgang | Ingen |
HDMI udgang | Ingen |
Udgang DisplayPort | Ja |
Antal understøttede skærme | 1 |
USB-stik type | USB Type-C |
USB-stik køn | Hanstik |
USB-stik formfaktor | Lige |
Antal DisplayPorts | 1 |
HDCP | Ja |
DisplayPort-version | 1.4 |
Maksimal opløsning | 7680 x 4320 pixel |
Opdateringshastighed ved maksimal opløsning | 60 Hz |
Lyd-output kanaler | 2.0 kanaler |
Chipsæt | VL103 |
Dataoverførselshastighed (maks.) | 32,4 Gbit/sek. |
Design | |
Produktfarve | Sort, Grå |
Husmateriale | Plast |
Integreret USB-kabel | Ja |
Vægt & størrelser | |
Bredde | 38 mm |
Dybde | 390 mm |
Højde | 15 mm |
Vægt | 26 g |
USB-kabellængde | 0,3 m |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 45 °C |
Opbevaringstemperatur (T-T) | -10 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 10 - 85% |
Emballeringsdata | |
Pakkebredde | 125 mm |
Pakkedybde | 225 mm |
Pakkehøjde | 16 mm |
Pakkevægt | 32 g |
Tekniske detaljer | |
Compliance-certifikater | CE, RoHS |
Logistik data | |
Produkter pr. hovedkasse (udvendigt) | 200 stk |
Hovedkassens bredde (udvendigt) | 330 mm |
Hovedkassens længde (udvendigt) | 500 mm |
Hovedkassen højde (udvendigt) | 220 mm |
Harmoniseret systemkode (HS) | 84733020 |
