Connect an HDMI®-capable display to a Mini-DisplayPort®-equipped PC or Mac® computer

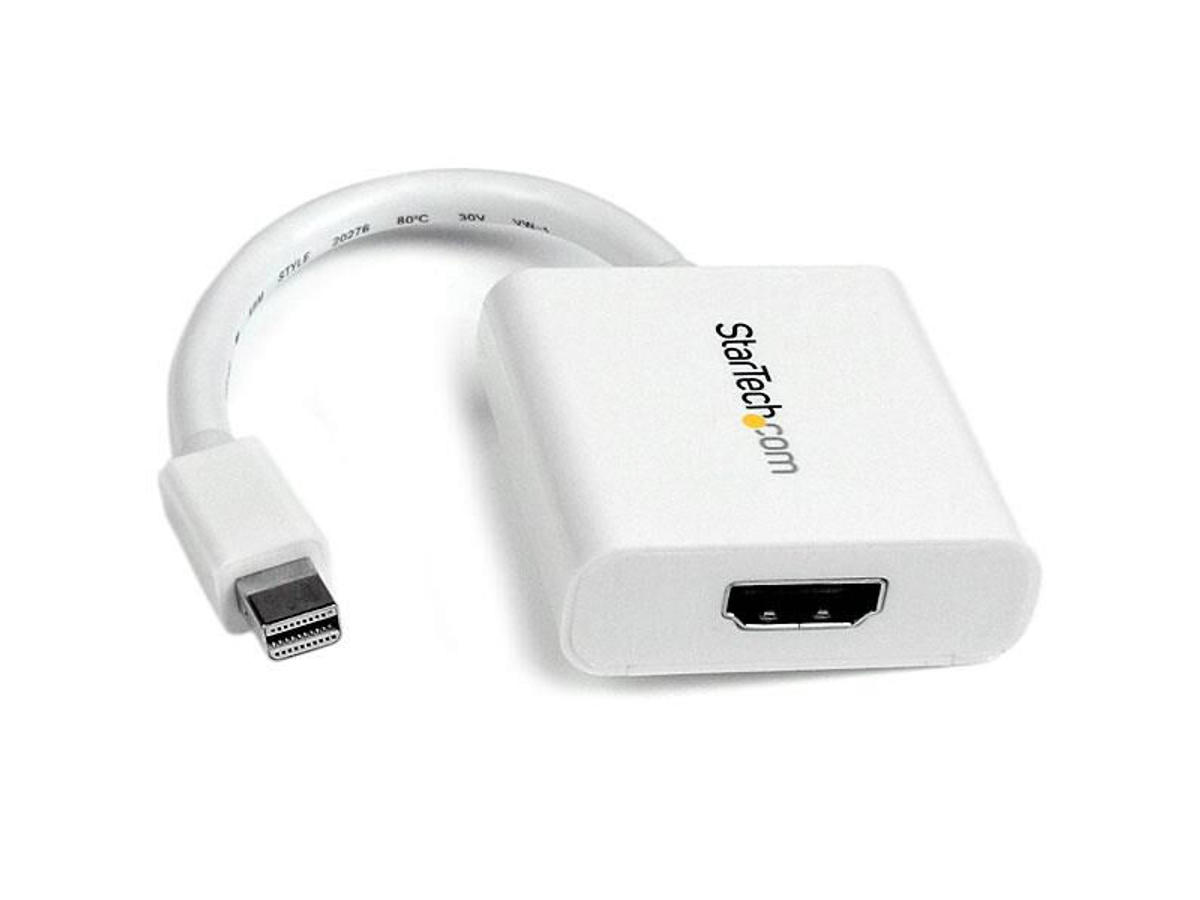

The MDP2HDW passive Mini DisplayPort® to HDMI® Video Adapter/Converter (White) offers a convenient HDMI/Mini-DisplayPort link, which enables you to connect an HDMI computer monitor or television to a device with a Mini-DisplayPort output (such as any Microsoft® Surface™ Pro with mDP), while saving the expense of upgrading the monitor for compatibility.
The adapter supports high resolution output up to 1920x1200, offering a high quality solution for mirroring or extending a computer desktop onto a second display.
This versatile Mini DisplayPort to HDMI adapter requires a multimode DisplayPort port (DisplayPort ++) connection to function, and is compatible with Intel® Thunderbolt™ output when connected directly to a supporting DisplayPort over Thunderbolt™ I/O port.
This adapter allows for audio pass-through if supported by the video source. Please review the video source manual to confirm support.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
Funktioner | |
Kabellængde | 0,12 m |
Stik 1 | Mini-DisplayPort |
Stik 2 | HDMI |
Stik 1 køn | Hanstik |
Stik 2 køn | Hunstik |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
HDMI-version | 1.4 |
HDCP | Ja |
HDCP-version | 1.4 |
DisplayPort-version | 1.2 |
DisplayPort Content Protection (DPCP) | Ja |
Maksimal opløsning | 1920 x 1200 pixel |
Understøttede videotilstande | 1080p |
Produktfarve | Hvid |
Chipsæt | NXP - PTN3361 |
Understøttede lydkanaler | 7.1 |
Plug and play | Ja |
Konverter type | Passiv videoomformer |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 60 °C |
Opbevaringstemperatur (T-T) | -10 - 70 °C |
Relativ luftfugtighed ved drift (H-H) | 40 - 85% |
Vægt & størrelser | |
Vægt | 24 g |
Bredde | 40 mm |
Dybde | 170 mm |
Højde | 15 mm |
Emballeringsdata | |
Antal pr. pakke | 1 stk |
Pakkebredde | 160 mm |
Pakkedybde | 240 mm |
Pakkehøjde | 20 mm |
Pakkevægt | 50 g |
Tekniske detaljer | |
Compliance-certifikater | CE, RoHS |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
Hovedkassens bredde (udvendigt) | 270 mm |
Hovedkassens længde (udvendigt) | 455 mm |
Hovedkassen højde (udvendigt) | 355 mm |
Produkter pr. hovedkasse (udvendigt) | 200 stk |
Andre funktioner | |
Materiale | Plast |
