Connects an HDMI equipped device to a VGA display
Supports resolutions up to 1920x1200 including 1080p
Direct signal conversion, without scaling
Compact dimensions for easy installation and use
2 year warranty

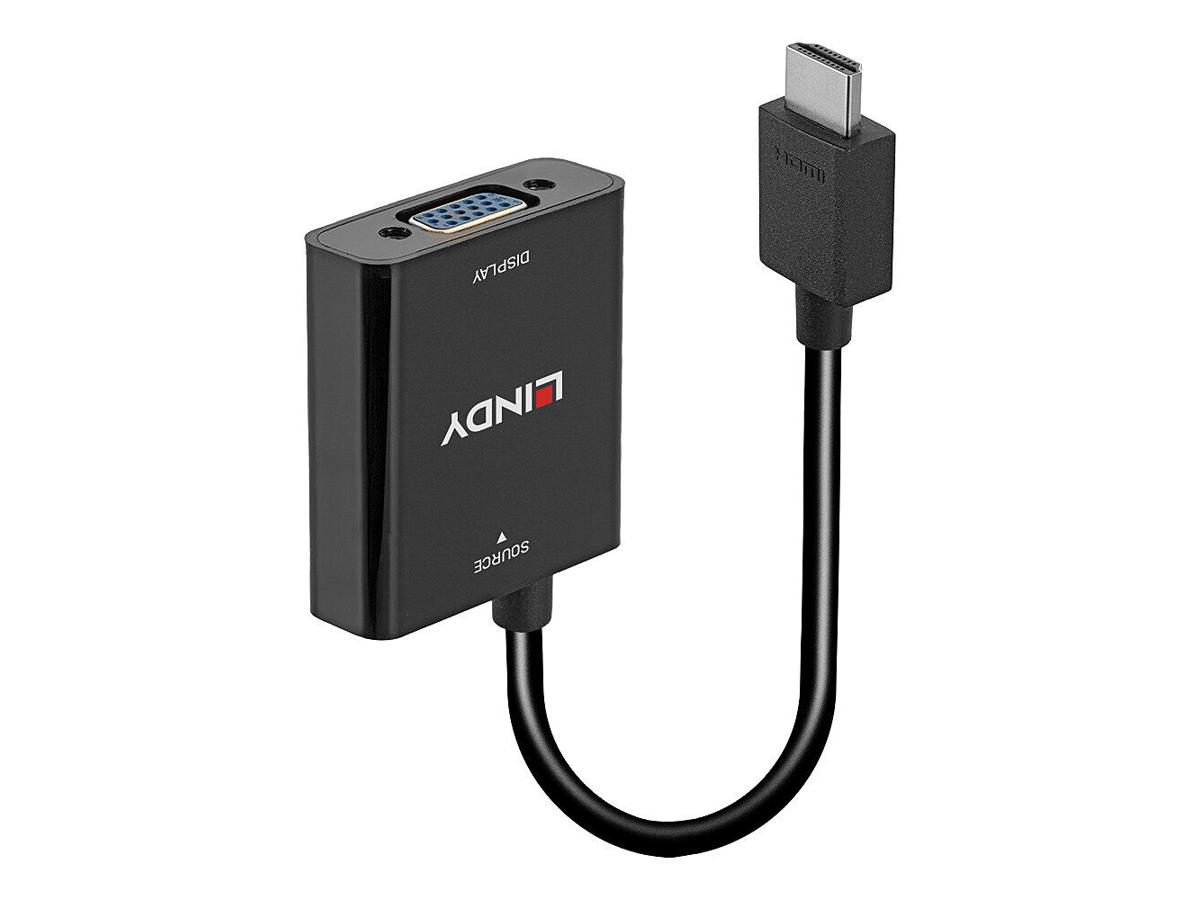

The Lindy HDMI to VGA converter converts signals from an HDMI equipped source into an analogue VGA signal. It supports resolutions up to 1080p and 1920x1200 for PC VGA displays. This allows the connection of modern HDMI capable devices, such as PC’s, notebooks and ultrabooks, to an older VGA display or projector.
The compact dimensions mean it can be easily installed in restricted spaces, allowing for tidy installation behind PCs or for use with laptop workstations. The converter provides connectivity without the expense of having to replace legacy displays and cabling when upgrading to modern PCs or laptops.
Funktioner | |
Kabellængde | 0,1 m |
Stik 1 | HDMI Type A (Standard) |
Stik 2 | VGA (D-Sub) |
Stik 1 køn | Hanstik |
Stik 2 køn | Hunstik |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
HDMI-version | 1.3 |
Maksimal opløsning | 1920 x 1080 pixel |
Understøttede grafikopløsninger | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
Understøttede videotilstande | 1080p |
Dataoverførselshastighed | 4,95 Gbit/sek. |
Maksimal opdateringshastighed | 60 Hz |
Produktfarve | Sort |
Chipsæt | Algoltek AG6200A |
Materiale for kapper | Polyvinylchlorid (PVC) |
Materiale til stikhus | Acrylonitrilbutadienstyren |
Farvedybde | 12 Bit |
Plug and play | Ja |
Certificering | CE, UKCA, FCC, RoHS, REACH |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 70 °C |
Opbevaringstemperatur (T-T) | -10 - 80 °C |
Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
Vægt & størrelser | |
Kabeldiameter | 4,8 mm |
Stik 1 dimensioner (BxDxH) | 37 x 42 x 14,5 mm |
Stik 2 dimensioner (BxDxH) | 21 x 17,4 x 9,6 mm |
Vægt | 27 g |
Emballeringsdata | |
Antal pr. pakke | 1 stk |
Pakkebredde | 160 mm |
Pakkedybde | 20 mm |
Pakkehøjde | 160 mm |
Pakketype | Polybag |
Pakkevægt | 37 g |
Logistik data | |
Harmoniseret systemkode (HS) | 84733080 |
