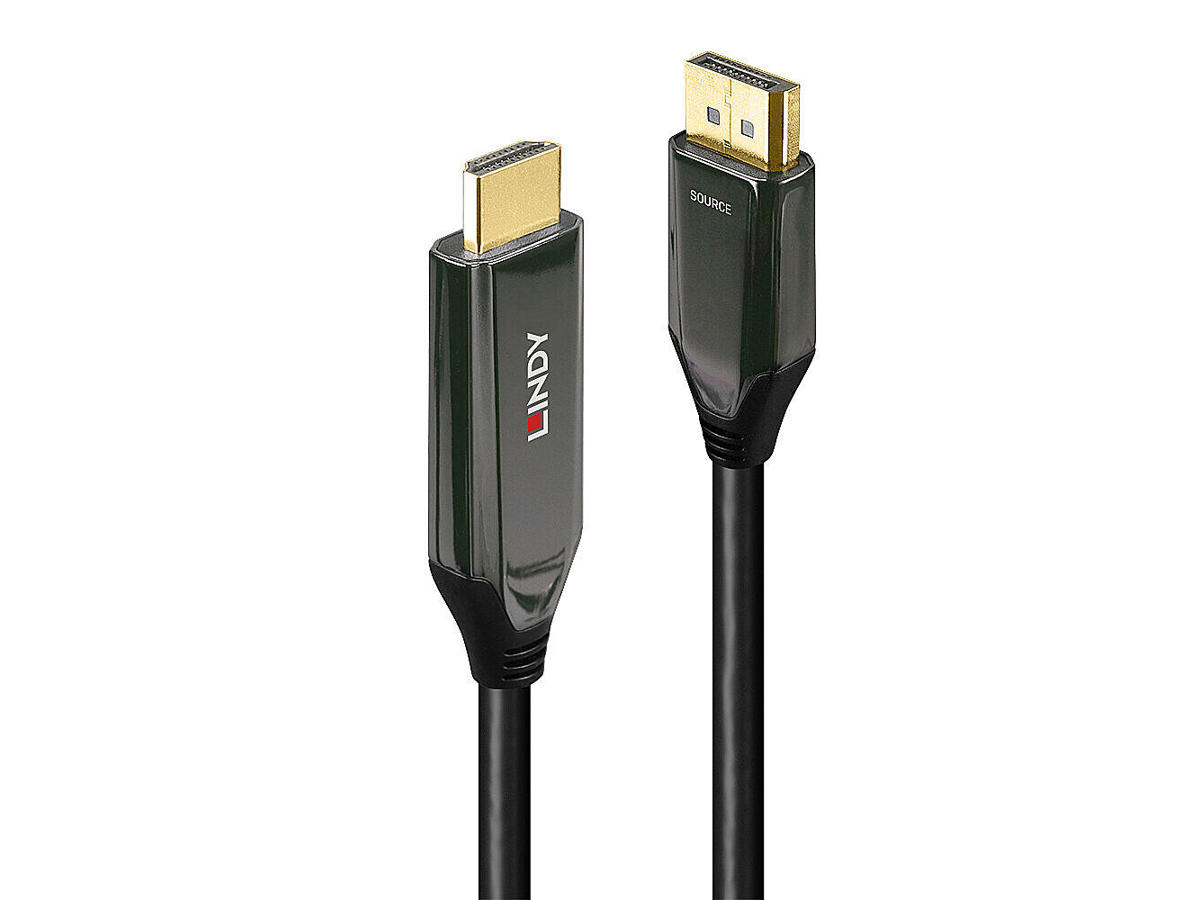

Lindy's Active DisplayPort to HDMI Cable range combine superior performance with stylish design to provide a high quality conversion of DisplayPort 4K@60Hz signals to output to a HDMI display or projector. This range of active cables come with an in-built chipset to not only provide a reliable connection, but also enhance compatibility with both dual mode and non-dual mode graphic cards and source devices, perfect for use with DP graphics cards, laptops and PC's, while avoiding the need for additional adapters.
With support for resolutions up to7680x4320@60Hz or4096x2160@120Hzand with additional support for High Dynamic Range, 8K content can be viewed with crystal clear clarity, enhanced contrast and more lifelike colour. These cables are great for creating eye-catching retail displays, innovative working environments or immersive video playback in sports bars and home cinema installations, while support for uncompressed multi-channel audio allows for an impressive three-dimensional surround sound performance to compliment detailed, clear video.
Support for AMD Eyefinity technology also brings the user a cost effective way of creating a non-standard aspect ratio or ultra-high resolution display made up from up to 3 or more monitors. This feature also allows the user to run multiple applications simultaneously on separate screens, improving productivity in the workplace or creating a widescreen gaming experience.
Please note: Audio output over HDMI is only supported when the graphics card of the notebook or desktop computer supports audio output over DisplayPort. In such instances a separate audio connection has to be set up.
Please note: Some of Nvidia's latest drivers do not work correctly at 8k@60Hz 4:4:4 when converting from DP/mDP to HDMI and will only work at 8k@60Hz 4:2:2
Funktioner | |
Kabellængde | 1 m |
Stik 1 | DisplayPort |
Stik 2 | HDMI |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Stik 1 formfaktor | Lige |
Stik 2 formfaktor | Lige |
HDMI-version | 2.1 |
DisplayPort-version | 1.4 |
Dataoverførselshastighed | 48 Gbit/sek. |
Maksimal opdateringshastighed | 60 Hz |
Bøjningsradius (min) | 3,3 cm |
Chipsæt | VM7100 |
Kabeltype | Rundt kabel |
AWG-ledningsstørrelse | 32 |
Farvedybde | 10 Bit |
Certificering | CE, UKCA, FCC, RoHS, REACH, UL & California Proposition 65 |
Driftsbetingelser | |
Driftstemperatur (T-T) | -20 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 80 °C |
Godkendelser | |
FN-nummer | 6 |
Vægt & størrelser | |
Kabeldiameter | 5,5 mm |
Stik 1 dimensioner (BxDxH) | 50 x 20 x 8 mm |
Stik 2 dimensioner (BxDxH) | 50 x 20 x 8 mm |
Emballeringsdata | |
Brugervejledning | Ja |
