Add an RS232 serial port with COM retention to your laptop or desktop computer through USB

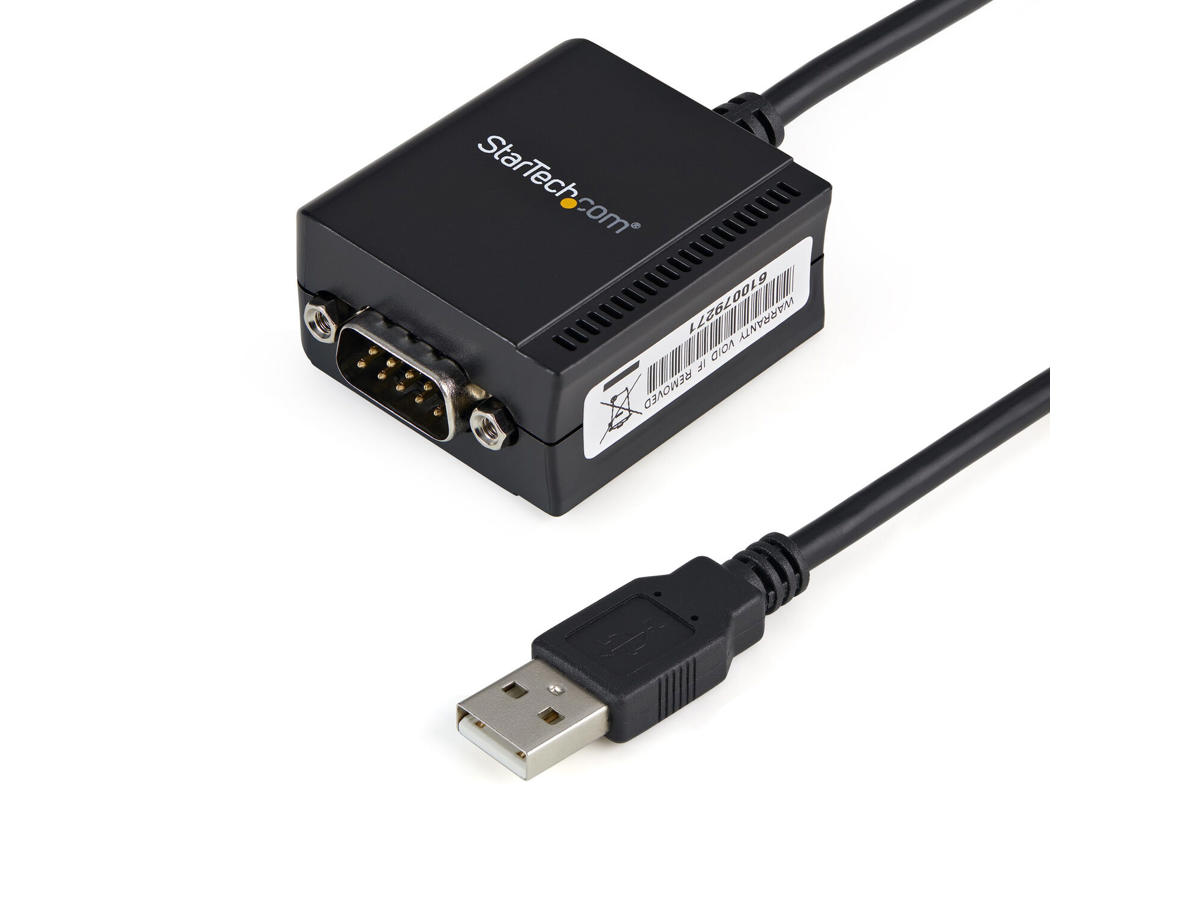

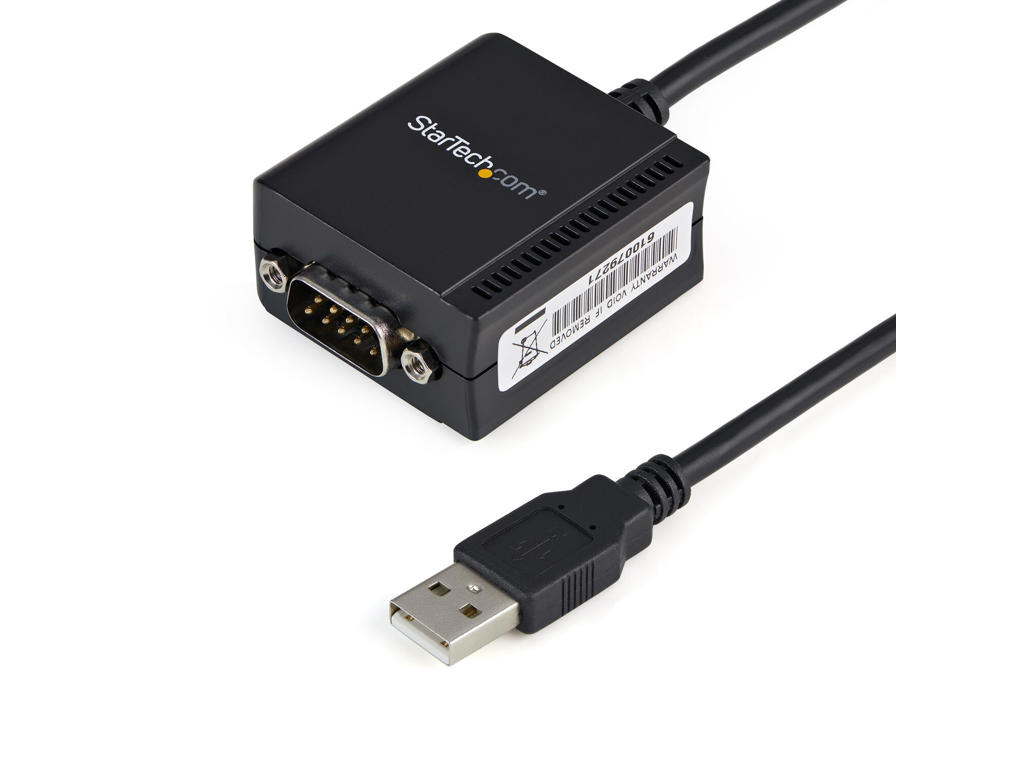

The ICUSB2321F 1-Port USB to Serial RS232 Adapter Cable with FTDI chipset and COM Retention converts an available USB 1.1 or 2.0 port into an RS232 serial DB9 port to connect, monitor and control your serial devices. This compact adapter features COM retention, allowing the same COM port value to automatically be re-assigned to the port if the cable is disconnected and re-connected to the host computer, or if the system is rebooted. The ICUSB2321F uses the FTDI chipset which supports additional customization, advanced features, and compatibility not necessarily offered by other solutions. Compatibility with a broad list of Operating Systems including Windows®, Windows CE, Mac OS and Linux, makes this product easy to integrate into mixed environments. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Porte & Grænseflader | |
Stik 1 | DB-9 |
Stik 2 | USB 2.0 A |
Stik 1 køn | Hanstik |
Stik 2 køn | Hanstik |
Kabellængde | 0,2 m |
Præstation | |
Produktfarve | Sort |
Chipsæt | FTDI - FT232RL |
Data-bits | 7, 8 |
Stop bits | 1, 2 |
Baud hastighed | 115,2 Kbit/s |
Paritetsbit | Endog, Mark, Ingen, Odd, Plads |
FIFO (først ind, først ud) | 256 B |
Certificering | CE, FCC |
Kompatible operativsystemer | Windows CE (4.2, 5.0, 6.0), XP Embedded, 98SE, 2000, XP, Vista, 7, 8, 8.1, 10, 11 Windows Server 2003, 2008 R2, 2012, 2012 R2, 2016, 2019 macOS 10.6 to 10.15, 11.0, 12.0, 13.0 Linux Kernel 3.0.x |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 55 °C |
Opbevaringstemperatur (T-T) | -20 - 85 °C |
Relativ luftfugtighed | 5 - 95% |
Vægt & størrelser | |
Bredde | 41,5 mm |
Dybde | 45 mm |
Højde | 22 mm |
Vægt | 90 g |
Emballeringsdata | |
Pakkebredde | 145 mm |
Pakkedybde | 175 mm |
Pakkehøjde | 32 mm |
Pakkevægt | 176 g |
Emballage indhold | |
Brugervejledning | Ja |
Drivere inkluderet | Ja |
Tekniske detaljer | |
Compliance-certifikater | RoHS |
Logistik data | |
Produkter pr. hovedkasse (udvendigt) | 80 stk |
Hovedkassens bredde (udvendigt) | 450 mm |
Hovedkassens længde (udvendigt) | 525 mm |
Hovedkassen højde (udvendigt) | 345 mm |
