Scalable Enterprise Wi-Fi Management

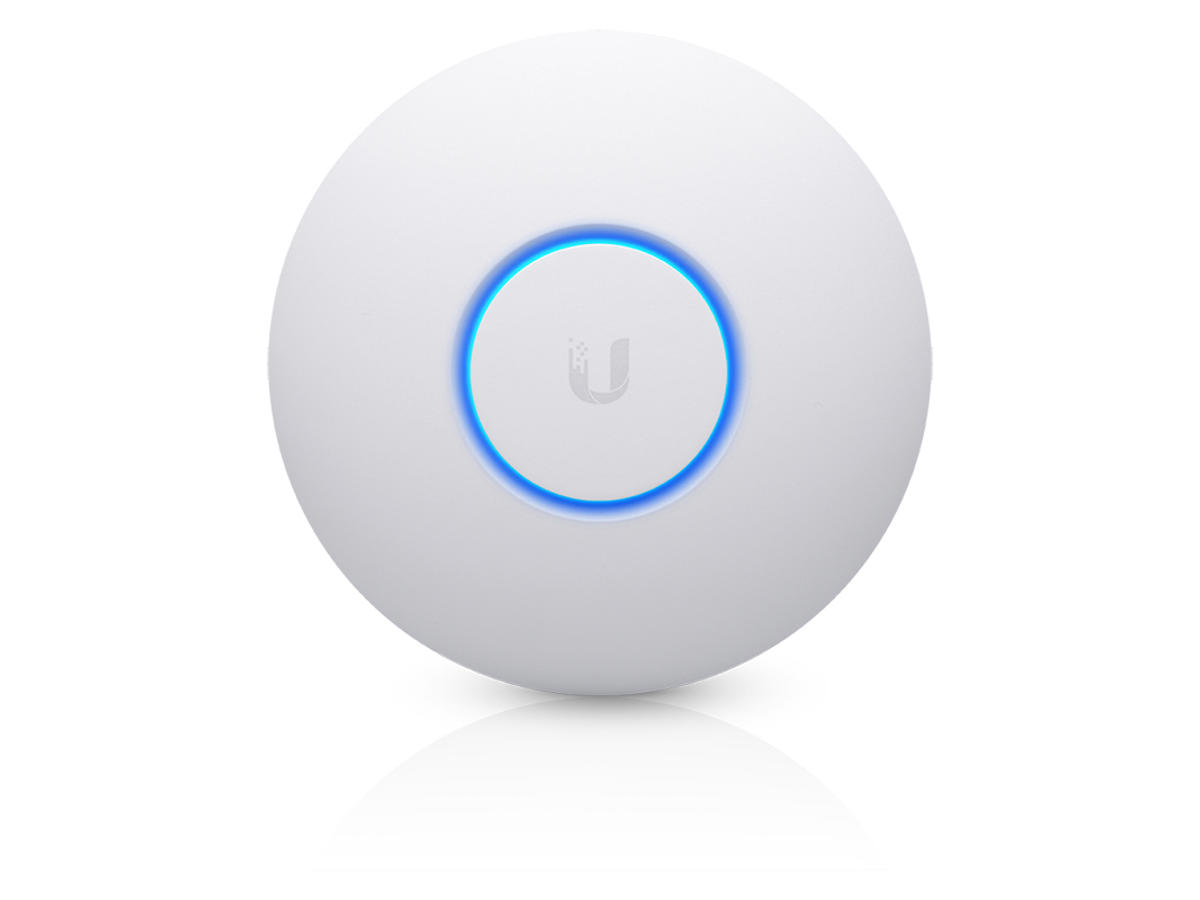

UniFi® is the revolutionary Wi-Fi system that combines enterprise performance, unlimited scalability, and a central management controller. The UniFi nanoHD AP has a refined industrial design and can be easily installed using the included mounting hardware. Easily accessible through any standard web browser and the UniFi mobile app (iOS or Android), the UniFi Controller software is a powerful software engine ideal for high-density client deployments requiring low latency and high uptime performance. Use the UniFi Controller software to quickly configure and administer an enterprise Wi-Fi network – no special training required. RF map and performance features, real-time status, automatic UAP device detection, and advanced security options are all seamlessly integrated.
Save Money and Save Time
UniFi comes bundled with a non-dedicated software controller that can be deployed
on an on-site PC, Mac, or Linux machine; in a private cloud; or using a public cloud service. You also have the
option of deploying the compact UniFi Cloud Key with built-in software.
Powerful Hardware
The UniFi nanoHD AP features the latest in Wi-Fi 802.11ac Wave 2 MU-MIMO technology.
Intuitive UniFi Controller Software
Configure and manage your APs with the easy-to-learn user interface.
Expandable
Unlimited scalability: build wireless networks as big or small as needed. Start with one (or
upgrade to a five‑pack) and expand to thousands while maintaining a single unified management system.
Funktioner | |
2.4 GHz | Ja |
5 GHz | Ja |
Maksimal dataoverførselshastighed | 1733 Mbit/s |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Gennemløbs datahastighed | 1733 Mbit/s |
Netværksstandarder | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q |
Antal brugere | 200 bruger(e) |
MIMO | Ja |
MIMO type | Multi User MIMO |
Wi-Fi-multimedie (WMM)/(WME) | Ja |
VLAN understøttelse | Ja |
Trådløs isolation | Ja |
Servicekvalitet support (QoS) | Ja |
Sikkerhed | |
Sikkerhedsalgoritmer | AES, TKIP, WEP, WPA, WPA-Enterprise, WPA-PSK, WPA2 |
Service Set Identifier (SSID) funktioner | SSID-udsendelse til/fra |
Antal SSID understøttet | 8 |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 1 |
DC-in-stik | Ja |
Strømstyring | |
Strøm over Ethernet (PoE) | Ja |
Vekselstrømsindgangsspænding | 44 - 57 V |
Strømforbrug (typisk) | 10,5 W |
Design | |
Placering | Loft, Væg |
Produktfarve | Hvid |
Knap til nulstilling | Ja |
Certificering | CE, FCC, IC |
Intern | Ja |
Antenne | |
Antennefunktioner | Integreret antenne |
Niveau for antennestyrke (maks.) | 3 dBi |
Vægt & størrelser | |
Bredde | 160 mm |
Dybde | 160 mm |
Højde | 32,6 mm |
Vægt | 300 g |
Emballage indhold | |
Antal produkter inkluderet | 5 stk |
Driftsbetingelser | |
Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
Driftstemperatur (T-T) | -10 - 70 °C |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
