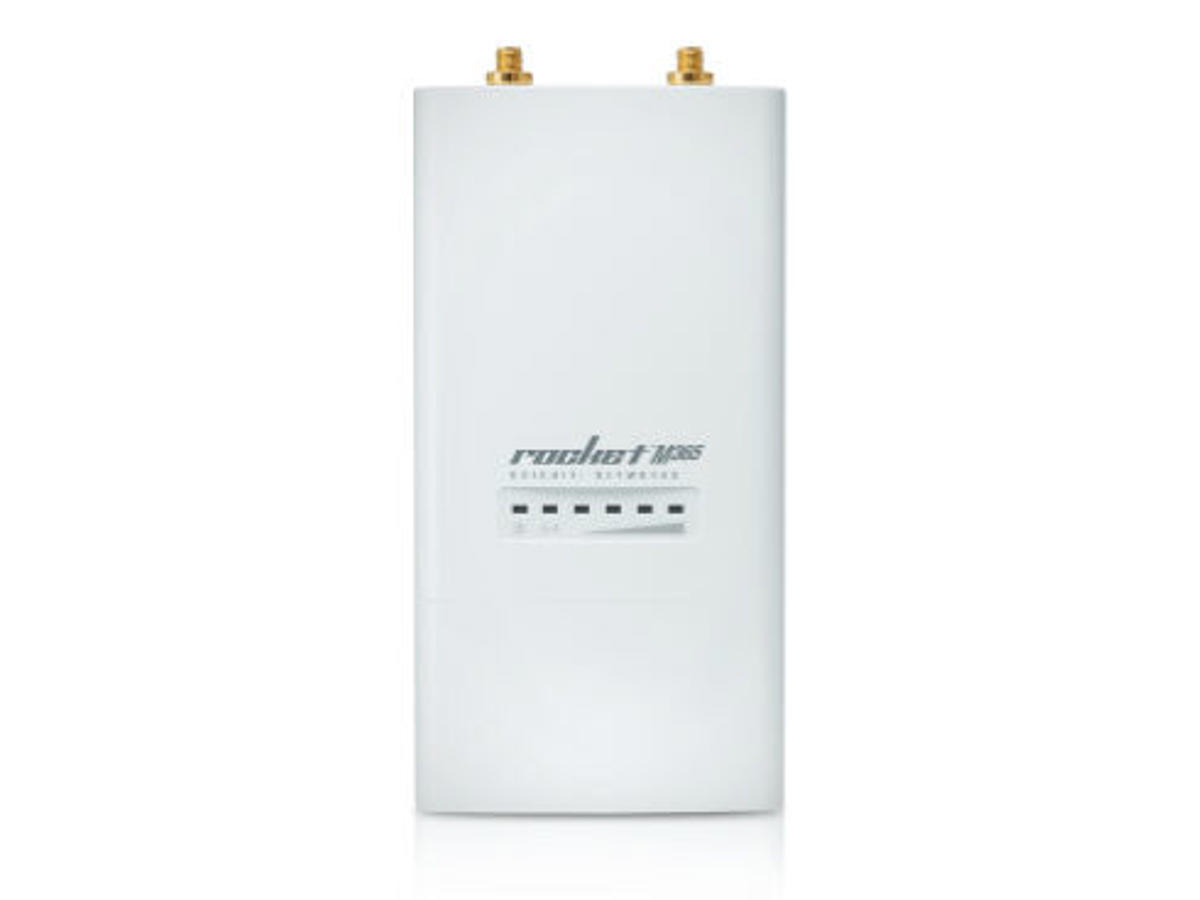

Featuring enhanced radio performance and mix-and-match industrial design, the Rocket™M is ideal for deployment in Point-to-Point (PtP) bridging or Point-to-MultiPoint (PtMP) applications.
Plug and Play Integration
Rocket™radios seamlessly work together with airMAX®Sector, RocketDish™, Omni and Yagi antennas for PtP and PtMP links. Every airMAX antenna has a built-in Rocket mount, so no tools are needed to install the Rocket.
Advanced Software Technology
Ubiquiti’s airMAX®technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Frequency and Channel Flexibility
Built to survive harsh environments, the Rocket™M is available in several frequency models and supports multiple channel bandwidths, depending on the specific model and local country regulations.
Spectrum Analysis Tools
The airView Spectrum Analyzer allows operators to identify noise signatures and analyze frequency usage and activity levels onsite, so new access points can be set up on the least-used channels to optimize wireless performance.
Funktioner | |
Maksimal dataoverførselshastighed | 150 Mbit/s |
Ethernet LAN-datahastigheder | 10,100 Mbit/s |
Frekvensbånd | 3.65 - 3.675 GHz |
Frekvensområde | 25 MHz |
VLAN understøttelse | Ja |
Servicekvalitet support (QoS) | Ja |
Transmissionseffekt | 25 dBmW |
Sikkerhed | |
Sikkerhedsalgoritmer | WPA2-AES |
Protokoller | |
DHCP-klient | Ja |
Administrationsprotokoller | SNMP |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 1 |
Design | |
Produktfarve | Hvid |
LED-indikatorer | Ja |
Certificering | FCC, IC, CE, RoHS |
Intern | Ingen |
Antenne | |
Antennestik type | RP-SMA |
Antal forbindelser | 2 |
Præstation | |
Indbygget processer | Ja |
Processor arkitektur | MIPS 24Kc |
Flashhukommelse | 8 MB |
Intern hukommelse | 64 MB |
Vægt & størrelser | |
Bredde | 160 mm |
Dybde | 80 mm |
Højde | 30 mm |
Vægt | 500 g |
Driftsbetingelser | |
Relativ luftfugtighed ved drift (H-H) | 5 - 95% |
Driftstemperatur (T-T) | -30 - 70 °C |
