5 GHz LTU client that functions in a point-to-multipoint (PtMP) environment with the LTU Rocket as its base station.

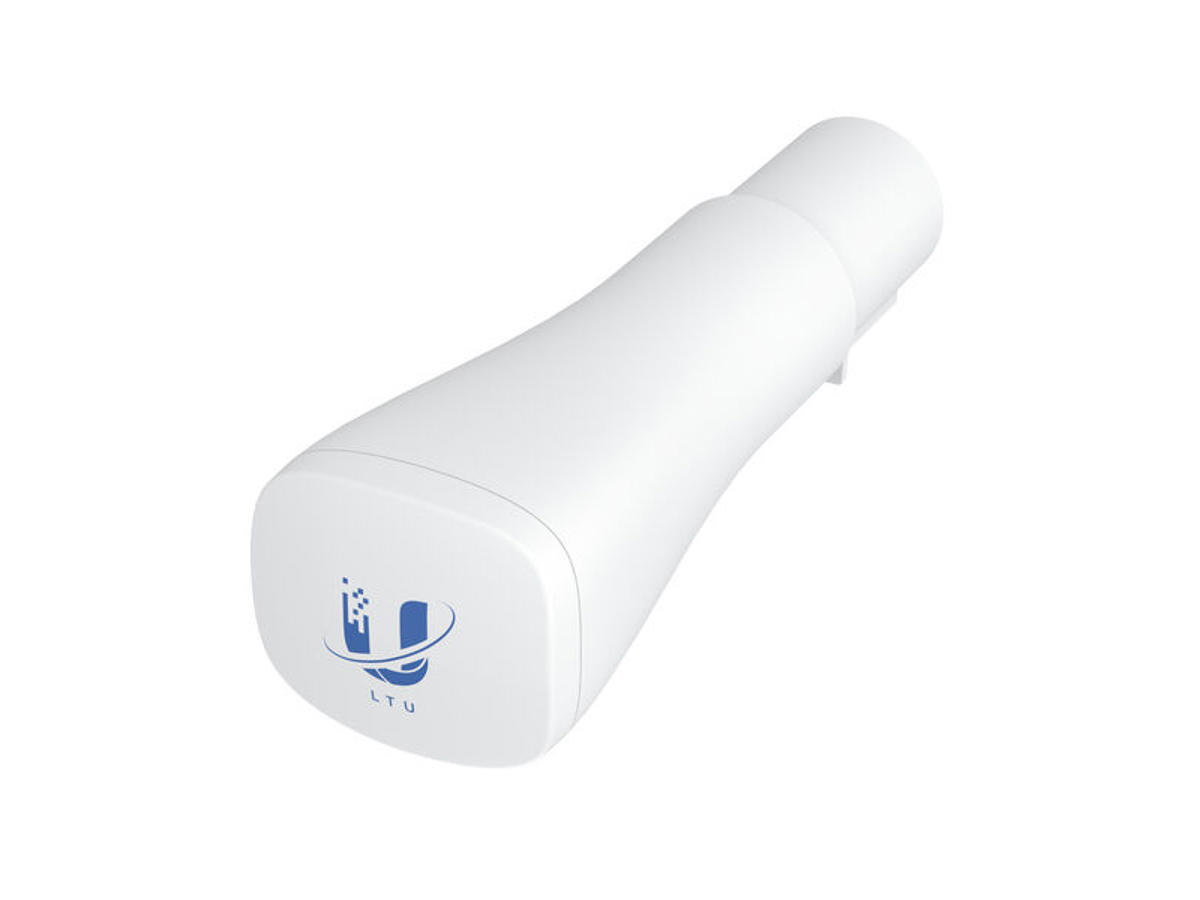

The LTU Instant is a 5 GHz LTU client that serves as a plug-and-play conversion module for existing LiteBeam (LBE 5AC Gen 2) deployments. Designed to function in a PtMP environment with an LTU Rocket serving as its base station, the LTU Instant delivers up to 900+ Mbps* of real TCP/IP throughput with its 22 dBi high-gain antenna. It also offers a robust feature set including frequency splitting, router mode support, accommodating bandwidth options, and configuration management from the AP side. The LTU Instant can be set up in minutes and fully managed with the UISP® web application or mobile app.
Funktioner | |
2.4 GHz | Ingen |
5 GHz | Ja |
6 GHz | Ingen |
Gennemløbs datahastighed | 550 Mbit/s |
Frekvensbånd | 5.15 - 5.95 GHz |
Bluetooth | Ja |
Frekvensområde | 100 MHz |
Isolering | 20 dB |
Uplink/downlink-forhold | 25/75, 33/67, 50/50 |
Sikkerhed | |
Sikkerhedsalgoritmer | WPA2-PSK |
Administrationsfunktioner | |
Webbaseret administration | Ja |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 1 |
Strømstyring | |
Strøm over Ethernet (PoE) | Ja |
Power over Ethernet (PoE) -type understøttet | Passive PoE |
DC spændingsområde | 22 - 26 V |
Strømforbrug (maks.) | 8,5 W |
Design | |
Produktfarve | Hvid |
Husmateriale | Polykarbonat (PC) |
Kode for international beskyttelse (IP) | IPX6 |
LED-indikatorer | Netværk, Strøm |
Certificering | IC |
Antenne | |
Niveau for antennestyrke (maks.) | 22 dBi |
Antennestik type | RF |
Præstation | |
Indbygget processer | Ja |
Operativsystem installeret | AirOS |
Tekniske detaljer | |
Compliance-certifikater | CE, Federal Communications Commission (FCC) |
Vægt & størrelser | |
Bredde | 64,2 mm |
Dybde | 201,5 mm |
Højde | 56,1 mm |
Vægt | 215 g |
Antennens bredde | 35,8 cm |
Antennens dybde | 27,2 cm |
Antennens højde | 28,9 cm |
Antennens vægt | 890 g |
Emballage indhold | |
Antal produkter inkluderet | 5 stk |
PoE-adapter inkluderet | Ja |
Hurtig start guide | Ja |
Antenne inkluderet | Ja |
Driftsbetingelser | |
Driftstemperatur (T-T) | -40 - 60 °C |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 95% |
Bæredygtighed | |
Overholdelse af bæredygtighed | Ja |
