An Affordable Business-Class
802.11ac MU-MIMO Wi-Fi Solution
Superior Wi-Fi Speeds with MU-MIMO Technology

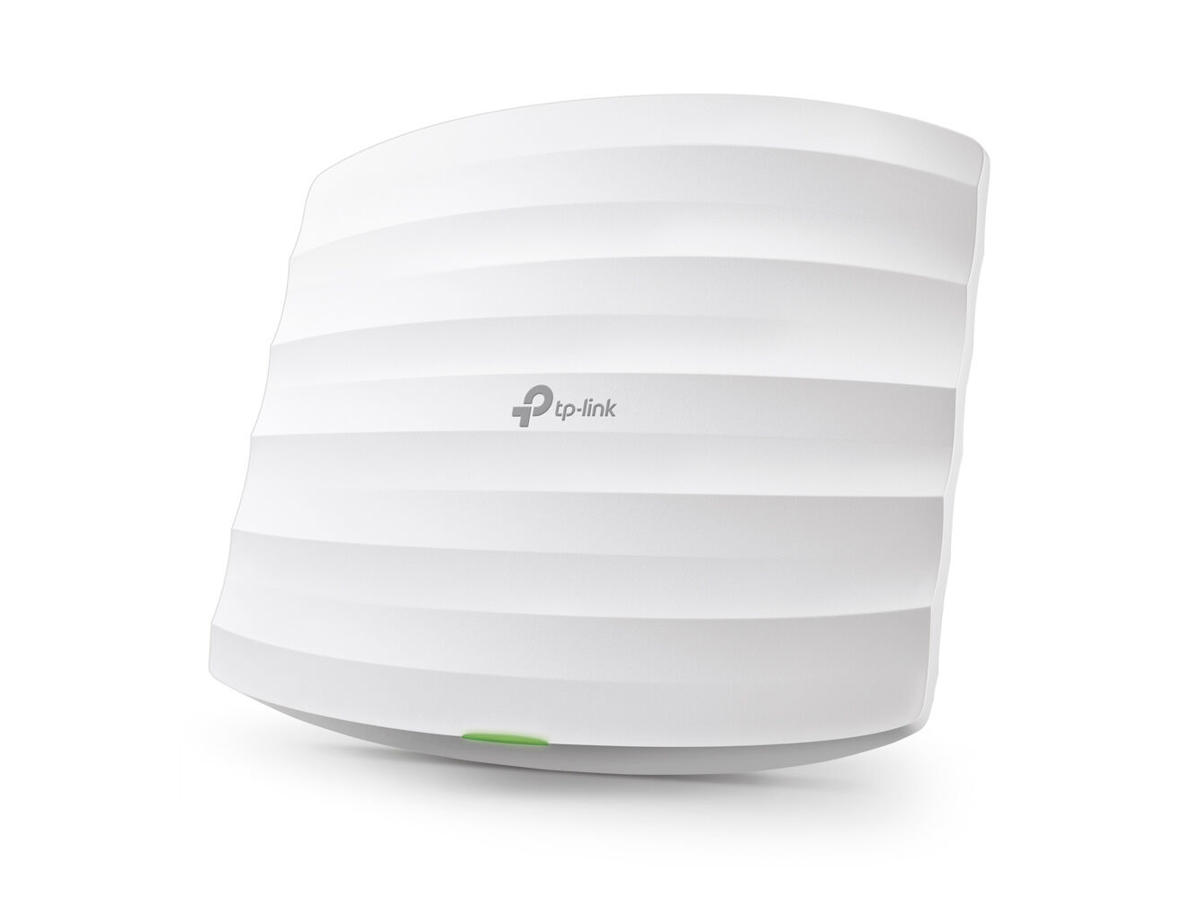

Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, the EAP225 easily delivers dual-band Wi-Fi speeds of up to 1350 Mbps to multiple devices at the same time.
Cloud Centralized Management
- Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Secure Guest Network with Facebook Wi-Fi and SMS Authentication
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Multiple PoE Options for Easy Installation
EAP225 supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter, making deployment effortless and flexible.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Meet Our New Hero Product!
The OC200 Omada Hardware Controller is dedicated to providing centralized management for the whole Omada network.
Funktioner | |
2.4 GHz | Ja |
5 GHz | Ja |
6 GHz | Ingen |
Maksimal dataoverførselshastighed | 867 Mbit/s |
Maksimal dataoverførselshastighed (2,4 GHz) | 450 Mbit/s |
Maksimal dataoverførselshastighed (5 GHz) | 867 Mbit/s |
Automatisk kanalvalg | Ja |
Automatisk kanalscanning | Ja |
MIMO | Ja |
MIMO type | Multi User MIMO |
Wi-Fi-multimedie (WMM)/(WME) | Ja |
VLAN understøttelse | Ja |
Begrænsning af hastighed | Ja |
Trådløs isolation | Ja |
Båndstyring | Ja |
Servicekvalitet support (QoS) | Ja |
Sikkerhed | |
Sikkerhedsalgoritmer | 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK |
Filtrering af MAC-adresser | Ja |
Antal SSID understøttet | 16 |
Administrationsfunktioner | |
Webbaseret administration | Ja |
Lokal AP-forvaltning | Telnet |
Syslog | Ja |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 1 |
Strømstyring | |
Strøm over Ethernet (PoE) | Ja |
Power over Ethernet (PoE) -type understøttet | Active PoE, Passive PoE |
Udgangsspænding | 24 V |
Design | |
Placering | Loft, Væg |
Produktfarve | Hvid |
Knap til nulstilling | Ja |
LED-indikatorer | Strøm, WLAN |
Certificering | CE, FCC, RoHS |
Antenne | |
Antenne type | Intern |
Antenneretningstype | Omniretningsbestemt |
Antenner, antal | 3 |
Præstation | |
Indbygget processer | Ja |
Vægt & størrelser | |
Bredde | 205,5 mm |
Dybde | 181,5 mm |
Højde | 37,1 mm |
Emballeringsdata | |
Pakkebredde | 340 mm |
Pakkedybde | 228 mm |
Pakkehøjde | 65 mm |
Pakkevægt | 910 g |
Emballage indhold | |
Antal produkter inkluderet | 1 stk |
PoE-adapter inkluderet | Ja |
Kabler inkluderet | Vekselstrøm |
Monteringssæt | Ja |
Driftsbetingelser | |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Driftstemperatur (T-T) | 0 - 60 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
