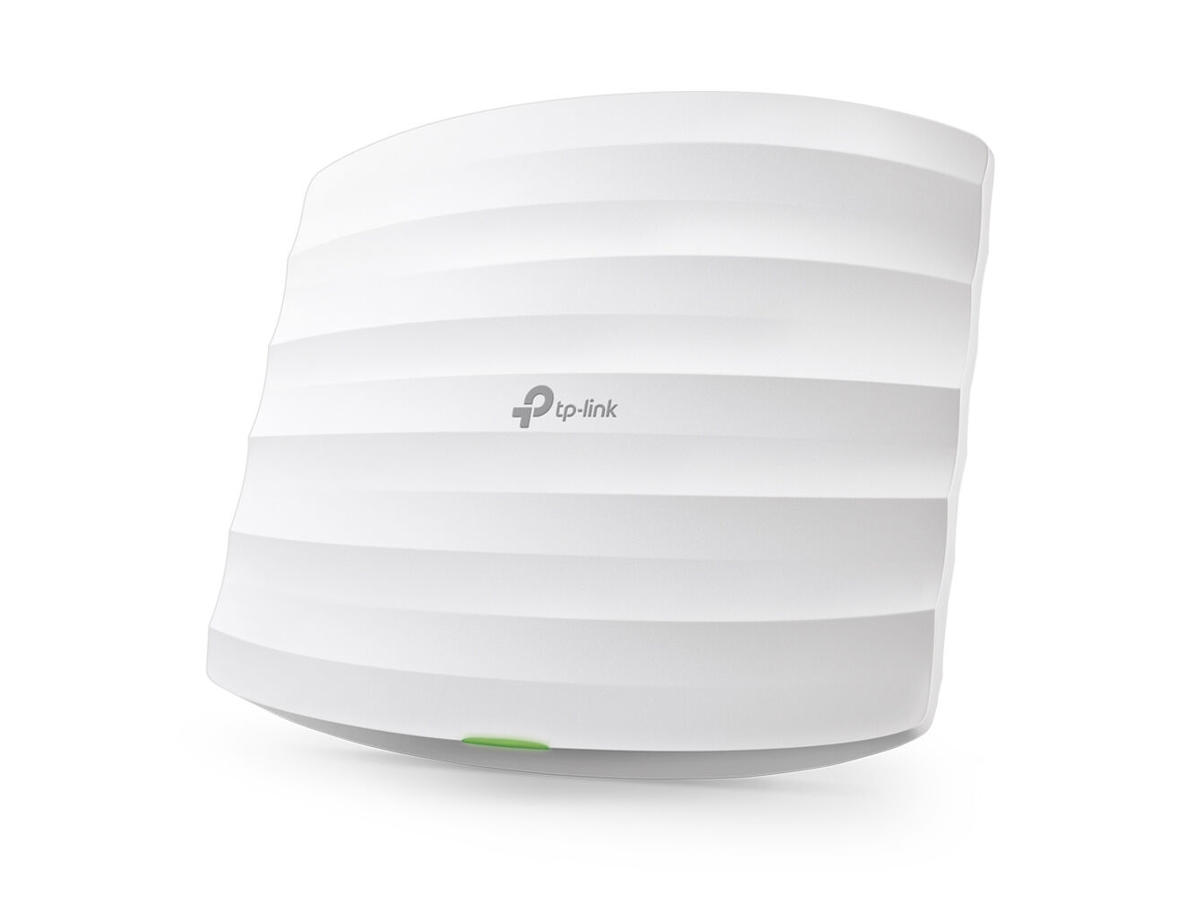

Flexible Placement
Easy mounting design & PoE
The EAP’s elegant appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 supports Passive PoE to make deployment effortless and flexible.
Cloud Centralized Management - Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Captive Portal
Guest Network with Facebook and SMS Support
The captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
Funktioner | |
2.4 GHz | Ja |
5 GHz | Ingen |
6 GHz | Ingen |
Maksimal dataoverførselshastighed | 300 Mbit/s |
Maksimal dataoverførselshastighed (2,4 GHz) | 300 Mbit/s |
Ethernet LAN-datahastigheder | 10,100 Mbit/s |
Frekvensbånd | 2.4 - 2.4835 GHz |
Netværksstandarder | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1x |
Kabelteknologi | 10/100Base-T(X) |
Wi-Fi-multimedie (WMM)/(WME) | Ja |
VLAN understøttelse | Ja |
Vituelle LAN funktioner | VLAN-kortlægning |
Begrænsning af hastighed | Ja |
Trådløs isolation | Ja |
Servicekvalitet support (QoS) | Ja |
Sendeeffekt (CE) | 19 dBm |
Sendeeffekt (FCC) | 21 dBm |
Modtager, følsomhed | 300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER |
Sikkerhed | |
Sikkerhedsalgoritmer | 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SNMPv2, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
Filtrering af MAC-adresser | Ja |
Service Set Identifier (SSID) funktioner | Multiple SSIDs |
Antal SSID understøttet | 8 |
Adgangskontrolliste (ACL) | Ja |
Administrationsfunktioner | |
Webbaseret administration | Ja |
Syslog | Ja |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 1 |
Antal USB 2.0-porte | 0 |
Strømstyring | |
Strøm over Ethernet (PoE) | Ja |
Power over Ethernet (PoE) -type understøttet | Passive PoE |
Vekselstrømsindgangsspænding | 24 V |
Strømforbrug (typisk) | 2,8 W |
Design | |
Placering | Loft, Væg |
Produktfarve | Hvid |
Knap til nulstilling | Ja |
LED-indikatorer | Strøm |
Antenne | |
Antenne type | Intern |
Antenneretningstype | Omniretningsbestemt |
Antenner, antal | 2 |
Niveau for antennestyrke (maks.) | 4 dBi |
Godkendelser | |
Compliance-certifikater | Federal Communications Commission (FCC), CE, RoHS |
Vægt & størrelser | |
Bredde | 189,5 mm |
Dybde | 170,5 mm |
Højde | 29,7 mm |
Emballeringsdata | |
Pakkebredde | 246 mm |
Pakkedybde | 268 mm |
Pakkehøjde | 69 mm |
Pakkevægt | 720 g |
Pakketype | Kasse |
Emballage indhold | |
Antal pr. pakke | 1 stk |
PoE-adapter inkluderet | Ja |
Kabler inkluderet | Vekselstrøm |
Monteringssæt | Ja |
Hurtig start guide | Ja |
Driftsbetingelser | |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
Bæredygtighed | |
Overholdelse af bæredygtighed | Ja |
