Power up Your Business with New-Era Business WiFi 6
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices, including access points, switches, and routers. It provides 100% centralized cloud management and creates a highly scalable network controlled from a single interface.
Auto Channel Selection and Power Adjustment
to Optimize Overall Performance*
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network.
Easy Deployment & Higher Performance by Omada Mesh§
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Optimized Network Performance
Intelligent self-organization optimizes the best path between EAPs while self-healing ensures you stay online even when one AP is disrupted.
Always Stay Smooth with Fast Roaming§
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Ultra-Slim Design Brings More Agility

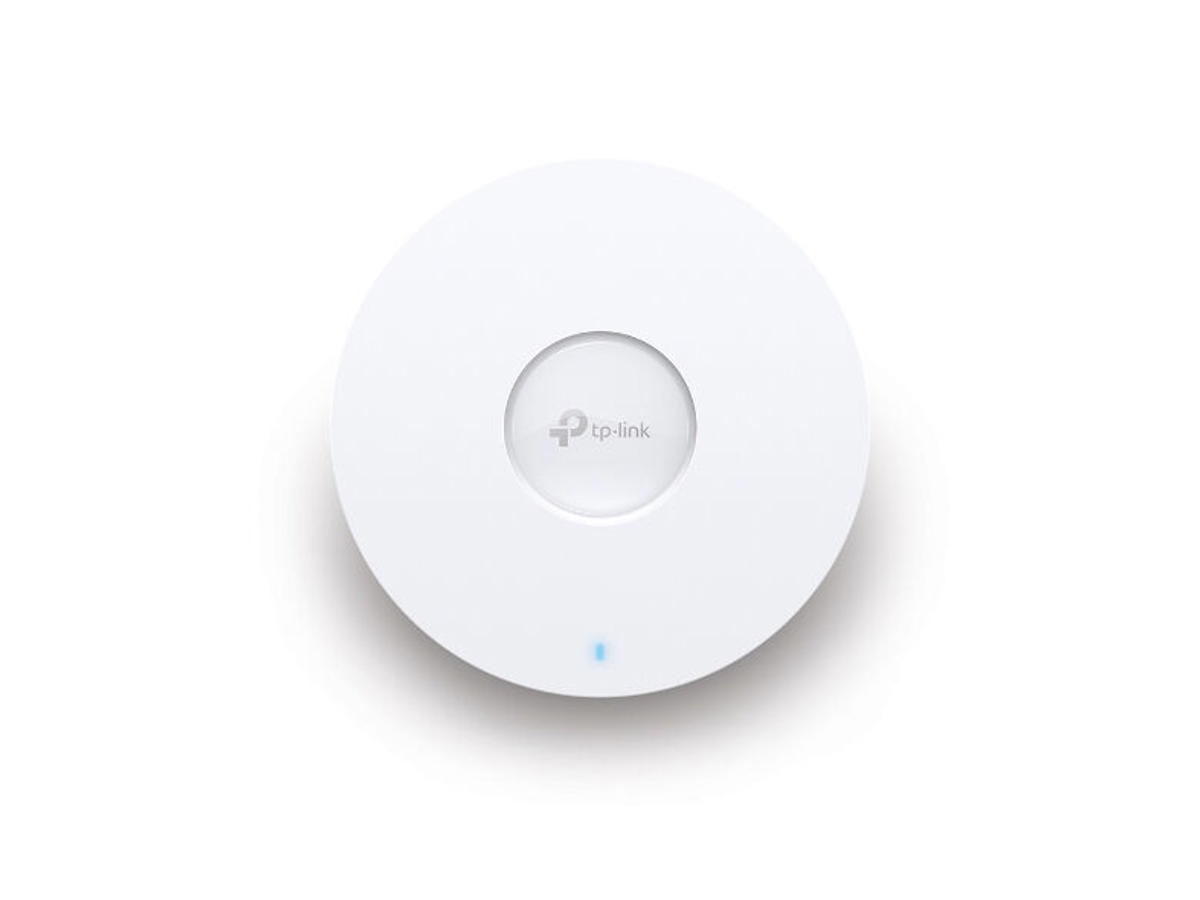

Exceptional performance with compact design ensures simple WiFi installation while saving space. The elegant appearance makes EAP653 perfectly blend into any modern office, hotel, classroom, or café.
Funktioner | |
2.4 GHz | Ja |
5 GHz | Ja |
6 GHz | Ingen |
Maksimal dataoverførselshastighed | 2976 Mbit/s |
Maksimal dataoverførselshastighed (2,4 GHz) | 574 Mbit/s |
Maksimal dataoverførselshastighed (5 GHz) | 2402 Mbit/s |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Frekvensbånd | 2.4 - 5 GHz |
Netværksstandarder | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11h |
Kabelteknologi | 10/100/1000Base-T(X) |
Antal brugere | 250 bruger(e) |
Automatisk kanalvalg | Ja |
Automatisk kanalscanning | Ja |
MIMO | Ja |
MIMO type | Multi User MIMO |
Spread-spectrum-metode | OFDMA |
Tilpas AP stilstandsfunktioner | Maskenet |
VLAN understøttelse | Ja |
Begrænsning af hastighed | Ja |
Flowkontrol support | Ja |
Båndstyring | Ja |
Airtime Fairness (ATF) | Ja |
Servicekvalitet support (QoS) | Ja |
Stråleformning | Ja |
Sendeeffekt (CE) | 27 dBm |
Sendeeffekt (FCC) | 22 dBm |
Sikkerhed | |
Sikkerhedsalgoritmer | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, WPA, WPA2, WPA3 |
Filtrering af MAC-adresser | Ja |
Administrationsfunktioner | |
Webbaseret administration | Ja |
Syslog | Ja |
Firmware kan opgraderes | Ja |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 1 |
DC-in-stik | Ja |
Strømstyring | |
Strøm over Ethernet (PoE) | Ja |
DC spændingsområde | 12 V |
Design | |
Placering | Loft, Væg |
Produktfarve | Hvid |
Knap til nulstilling | Ja |
LED-indikatorer | Ja |
Antenne | |
Antenne type | Intern |
Vægt & størrelser | |
Bredde | 160 mm |
Dybde | 160 mm |
Højde | 33,6 mm |
Emballeringsdata | |
Pakketype | Kasse |
Emballage indhold | |
Antal produkter inkluderet | 1 stk |
Monteringssæt | Ja |
Hurtig start guide | Ja |
Driftsbetingelser | |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Driftstemperatur (T-T) | 0 - 40 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
