High-End Business WiFi 6 to Power Up Your Business

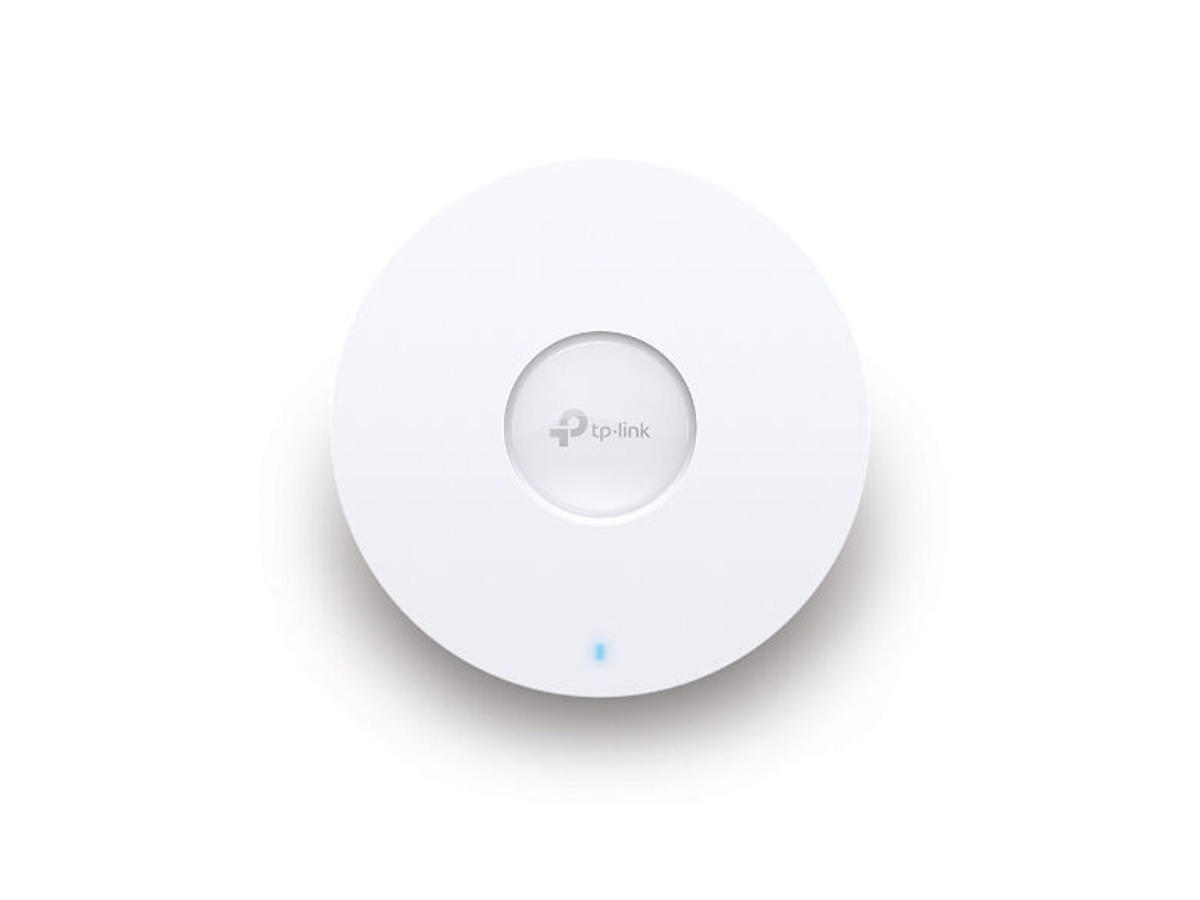

AX5400 Ceiling Mount Wi-Fi 6 Access Point
AX5400 WiFi 6 Speed
4804 Mbps on 5 GHz +
574 Mbps on 2.4 GHz†
High-Efficiency WiFi 6
More connected devices can enjoy faster speeds
Centralized Cloud Management
Manage the whole network locally or from the cloud
2.5GE Wired Performance
Boosts overall throughput with a 2.5 Gbps Ethernet port
160 MHz Channel
Double the data at peak transmission times on a single stream with HE160
Auto Channel Selection and Power Adjustment*
Optimize overall performance by reducing WiFi interference
Omada Mesh Technology
More flexible and convenient wireless deployment§
Seamless Roaming
Uninterrupted streaming when moving between APs§
PoE+ Powered
Supports both DC (adapter included) and 802.3at PoE+ for flexible installations
Designed for Business Environments
Requiring High-Performance WiFi
High-End Business Wi-Fi 6 Bring Real Power to Your Business
WiFi 6 brings faster speeds, lower lag, less interference, and higher capacity.
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface.
Auto Channel Selection and Power Adjustment
to Optimize Overall Performance*
Provides powerful wireless performance while significantly reducing WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network
Deployment & Higher Performance by Omada Mesh§
Easy Pairing, Less Wiring
With Mesh technology, Omada EAPs save you from extra wires by wirelessly extending your WiFi signal further and more flexibly to hard-to-wire areas.
Always Stay Smooth with Fast Roaming§
Ensures customers to enjoy uninterrupted streaming when moving around by switching clients automatically to the access points with the optimal signal.
Funktioner | |
2.4 GHz | Ja |
5 GHz | Ja |
6 GHz | Ingen |
Maksimal dataoverførselshastighed | 5400 Mbit/s |
Maksimal dataoverførselshastighed (2,4 GHz) | 574 Mbit/s |
Maksimal dataoverførselshastighed (5 GHz) | 4804 Mbit/s |
Ethernet LAN-datahastigheder | 2500 Mbit/s |
Frekvensbånd | 2.4 - 5 GHz |
Netværksstandarder | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
Antal brugere | 250 bruger(e) |
Automatisk kanalvalg | Ja |
Automatisk kanalscanning | Ja |
MIMO | Ja |
MIMO type | Multi User MIMO |
VLAN understøttelse | Ingen |
Begrænsning af hastighed | Ja |
Trådløs isolation | Ja |
Båndstyring | Ja |
Servicekvalitet support (QoS) | Ja |
Stråleformning | Ja |
Sendeeffekt (CE) | <20 dBm(2.4 GHz, EIRP); <23 dBm(5 GHz, band1 & band2, EIRP); <30 dBm(5 GHz, band3, EIRP) |
Sendeeffekt (FCC) | <25 dBm (2.4 GHz); <28 dBm (5 GHz) |
Sikkerhed | |
Service Set Identifier (SSID) funktioner | Multiple SSIDs |
Antal SSID understøttet | 16 |
Remote Authentication Dial-In User Service (RADIUS) | Ja |
Adgangskontrolliste (ACL) | Ja |
Administrationsfunktioner | |
Webbaseret administration | Ja |
Firmware kan opgraderes | Ja |
Strømstyring | |
Strøm over Ethernet (PoE) | Ja |
Indgangsstrøm | 1.5 A |
Design | |
Placering | Loft, Væg |
Produktfarve | Hvid |
Kode for international beskyttelse (IP) | IP67 |
Knap til nulstilling | Ja |
LED-indikatorer | Ja |
Certificering | CE, FCC, RoHS |
Antenne | |
Antenne type | Intern |
Antenneretningstype | Omniretningsbestemt |
Antenner, antal | 6 |
Niveau for antennestyrke (maks.) | 5 dBi |
Vægt & størrelser | |
Bredde | 243 mm |
Dybde | 243 mm |
Højde | 64 mm |
Emballeringsdata | |
Pakkebredde | 302 mm |
Pakkedybde | 304 mm |
Pakkehøjde | 82 mm |
Pakkevægt | 1,32 kg |
Emballage indhold | |
Antal produkter inkluderet | 1 stk |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
