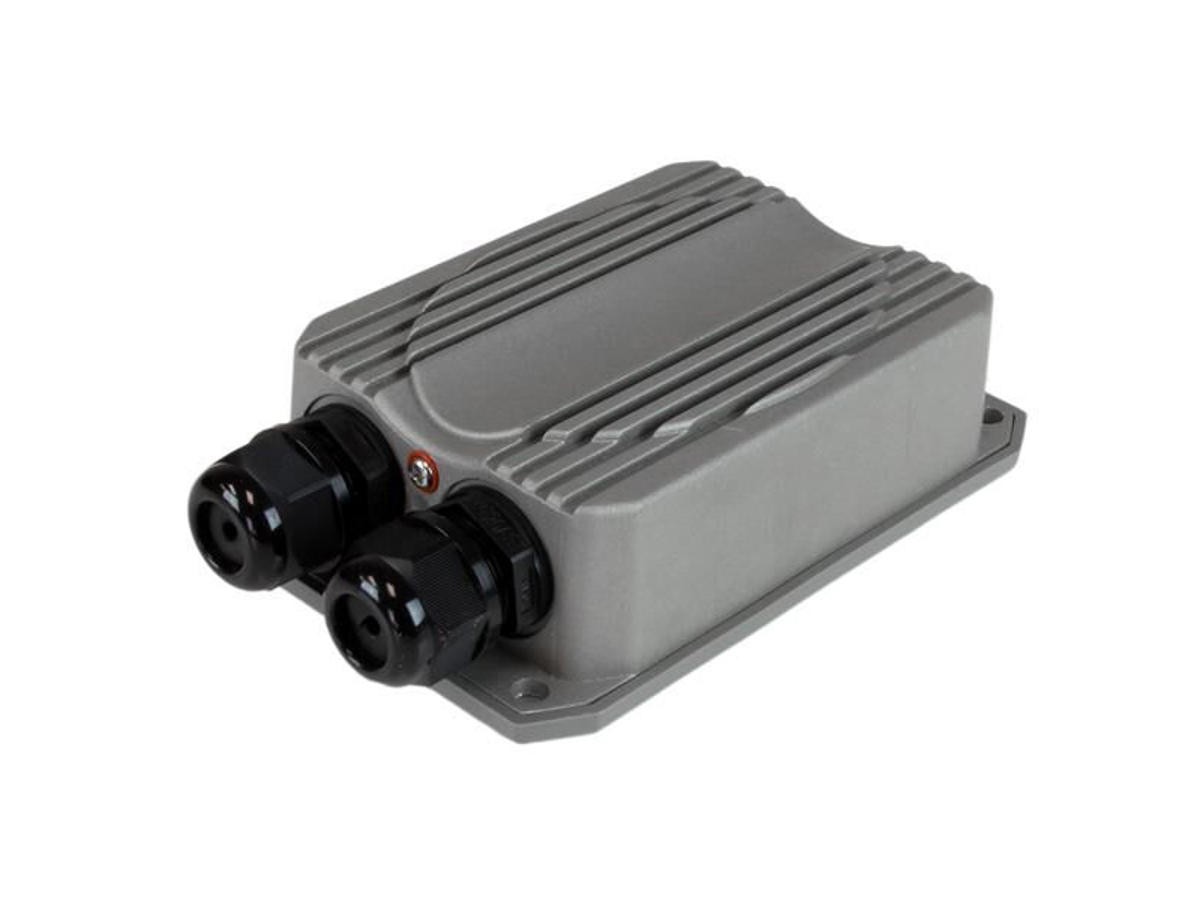

The R300WN22MO5E Outdoor Wireless Access Point lets you add 5GHz Wireless-N network coverage to an outdoor area, through a ruggedized industrial access point.
This outdoor access point features an IP67 certified, die-cast metal enclosure with heavy-duty cable grommets so it can withstand the outdoor elements and offers pole and wall-mounting options. Plus, the PoE-powered AP includes a passive Power-over-Ethernet injector, enabling you to install it in locations where a typical power outlet is unavailable. PoE pass-through via the secondary LAN port lets you connect data and power to a PoE-capable device near the access point.
By isolating your WiFi network to the 5GHz frequency, dual-band smartphones, tablets or laptops can operate with less interference from other devices than on the more common 2.4GHz band. For optimal wireless coverage, the AP broadcasts a signal through a high-powered 800mW internal 10dBi 2T2R antenna.
The device offers support for several different operating modes (AP, WDS and WISP), which help you to create a wireless network from a wired connection, bridge multiple APs together or extend the range of an existing wireless network. The AP supports Wireless-N data rates up to 300Mbps with security through WEP, WPA, or WPA2 authentication, all configurable through an easy-to-use web-based utility.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Withstand the harsh elements, with the rugged metal IP67 rated housing
- Operate efficiently with less interference from other devices, through 5Ghz operation at 300Mbps
- Customize your wireless network as needed, with support for several operating modes
Funktioner | |
2.4 GHz | Ingen |
5 GHz | Ja |
Maksimal dataoverførselshastighed | 300 Mbit/s |
Wi-Fi-datahastighed (maks.) | 300 Mbit/s |
Frekvensbånd | 5.2 - 5.805 GHz |
Båndbredde | 0,04 GHz |
Netværksstandarder | IEEE 802.11a, IEEE 802.11n, IEEE 802.3, IEEE 802.3u |
Fuld duplex | Ja |
Modulation | 16-QAM, 64-QAM, BPSK, OFDM, QPSK |
Servicekvalitet support (QoS) | Ja |
Maksimal udendørsinterval | 3700 m |
Sikkerhed | |
Sikkerhedsalgoritmer | AES, TKIP, WEP, WPA, WPA2 |
Protokoller | |
Understøttede netværksprotokoller | CSMA/CA |
Administrationsfunktioner | |
Webbaseret administration | Ja |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 2 |
Strømstyring | |
Strøm over Ethernet (PoE) | Ja |
Vekselstrømsindgangsspænding | 100 - 240 V |
Indgangsstrøm | 1 A |
Udgangsspænding | 48 V |
Udgangsstrøm | 0,5 A |
Strømforbrug (maks.) | 13,5 W |
Strømstiktype | Type N |
Design | |
Produktfarve | Grå |
Husmateriale | Aluminium, Plast |
Kode for international beskyttelse (IP) | IP67 |
LED-indikatorer | Aktivitet, Strøm, Signalstyrke |
Certificering | CE, FCC, RoHS |
Intern | Ingen |
Antenne | |
Antenne type | Intern |
Antenner, antal | 2 |
Niveau for antennestyrke (maks.) | 10 dBi |
Præstation | |
Chipsæt | Atheros - AR9342 |
Høj effekt | Ingen |
Vægt & størrelser | |
Bredde | 100 mm |
Dybde | 161 mm |
Højde | 58 mm |
Vægt | 700 g |
Emballeringsdata | |
Pakkebredde | 212 mm |
Pakkedybde | 355 mm |
Pakkehøjde | 86 mm |
Pakkevægt | 1,3 kg |
Emballage indhold | |
AC-adapter inkluderet | Ja |
PoE-adapter inkluderet | Ja |
Monteringssæt | Ja |
Hurtig start guide | Ja |
Driftsbetingelser | |
Relativ luftfugtighed ved drift (H-H) | 0 - 100% |
Driftstemperatur (T-T) | -30 - 60 °C |
Opbevaringstemperatur (T-T) | -30 - 85 °C |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
