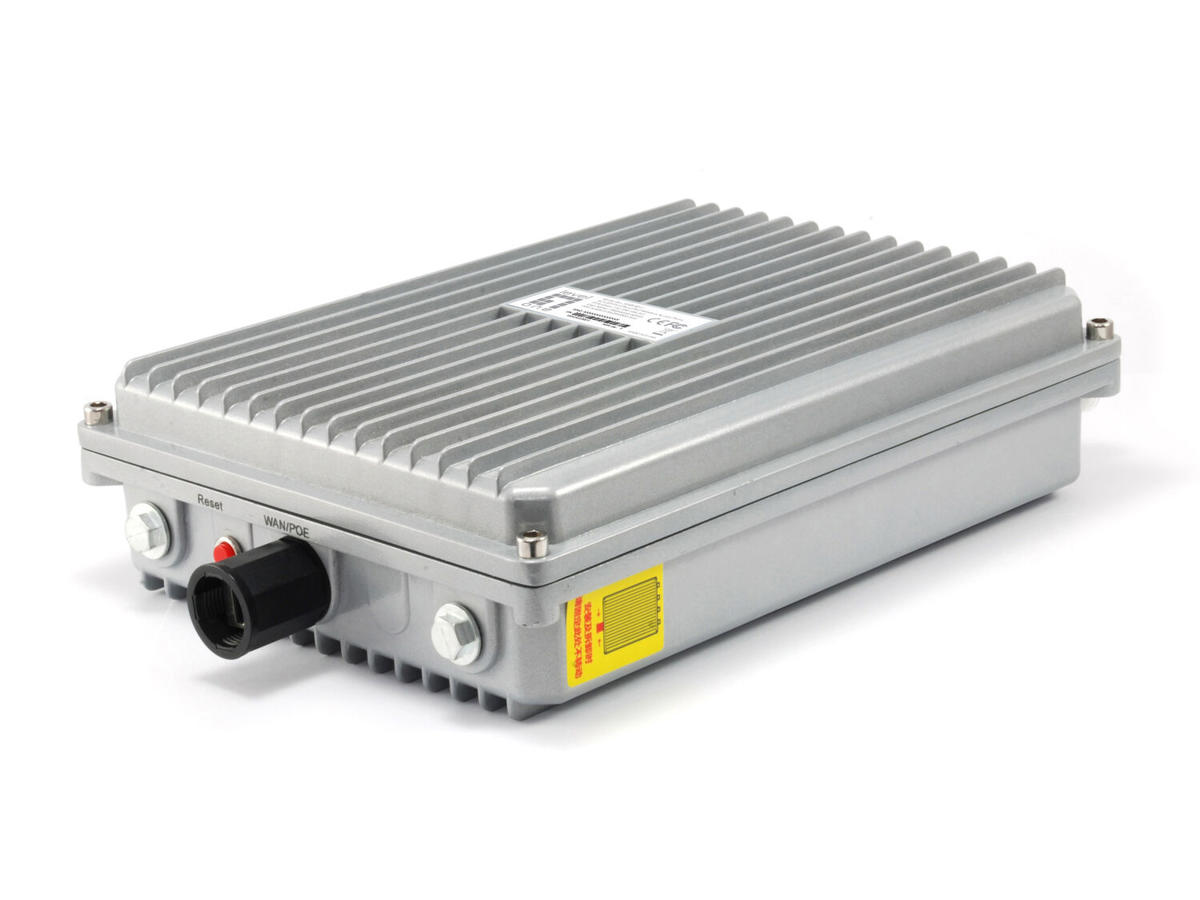

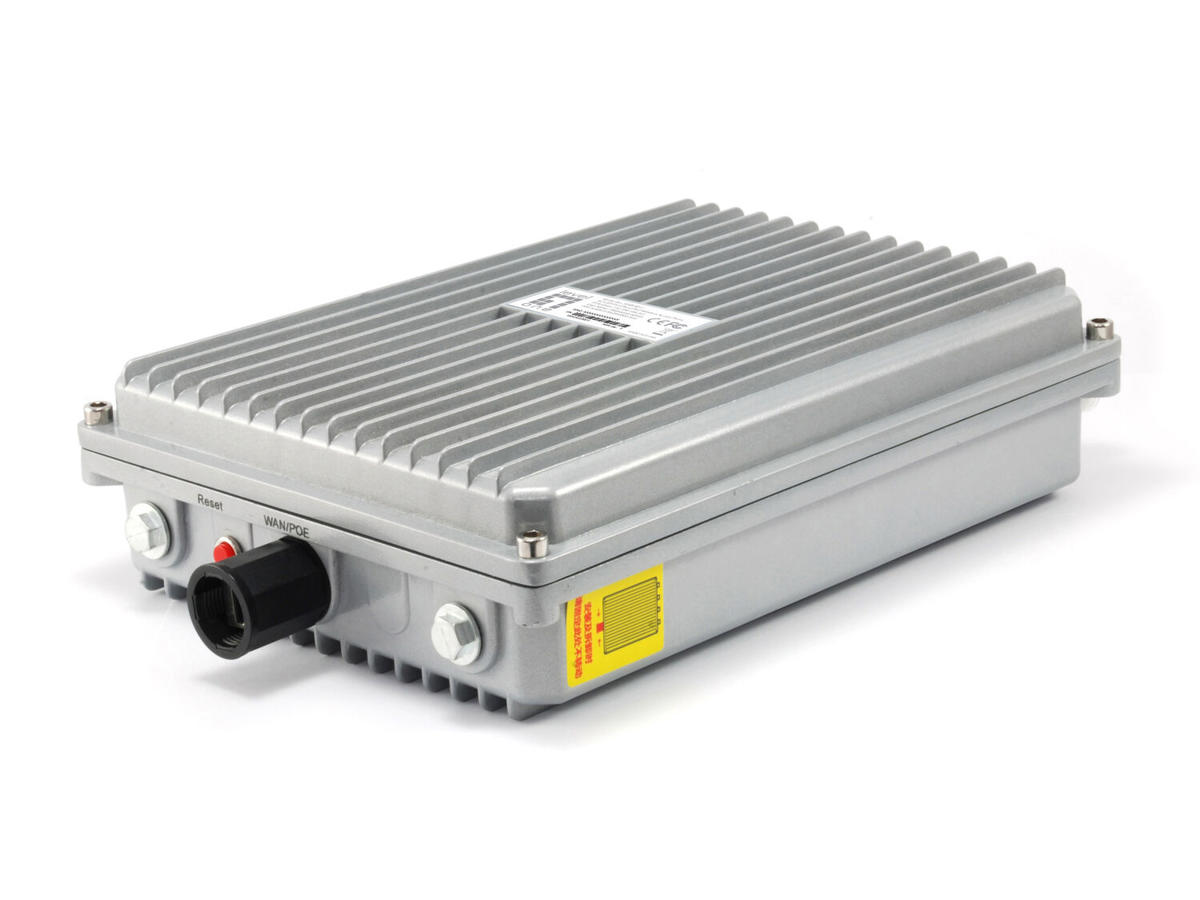

The LevelOne WAB-8011 is a managed, outdoor dual-band 802.11ac/n wireless access point, capable of a combined speed of up to 1200 Mbps. The device runs on 2.4 and 5 GHz frequencies, and can be used as part of a managed network when controlled by the LevelOne WAC-2000/WAC-2003 Wireless LAN Controller. LevelOne WAB-8011 also offers PoE, removing the need for an external power supply, which makes it easy to install. Advanced weatherproof design, rated to IP65 means the WAP is designed for outdoor deployments, and can withstand rain, humidity, dust, snow and extremely hot conditions. A fast, versatile and secure access point for a wide variety of outdoor network requirements. The LevelOne WAB-8011 is a managed, outdoor dual-band 802.11ac/n wireless access point, capable of a combined speed of up to 1200 Mbps. The device runs on 2.4 and 5 GHz frequencies, and can be used as part of a managed network when controlled by the LevelOne WAC-2000/WAC-2003 Wireless LAN Controller. LevelOne WAB-8011 also offers PoE, removing the need for an external power supply, which makes it easy to install. Advanced weatherproof design, rated to IP65 means the WAP is designed for outdoor deployments, and can withstand rain, humidity, dust, snow and extremely hot conditions. A fast, versatile and secure access point for a wide variety of outdoor network requirements.
Funktioner | |
2.4 GHz | Ja |
5 GHz | Ja |
Maksimal dataoverførselshastighed | 1200 Mbit/s |
Wi-Fi-datahastighed (maks.) | 433 Mbit/s |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Frekvensbånd | 2.4 - 2.483, 5.15 - 5.35, 5.46 - 5.72, 5.725 - 5.82 GHz |
Netværksstandarder | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
Antal brugere | 100 bruger(e) |
Antal kanaler | 165 kanaler |
Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM |
Wi-Fi-multimedie (WMM)/(WME) | Ja |
Driftsmodus | Access Point (AP),Gateway,Repeater,WISP |
Servicekvalitet support (QoS) | Ja |
Sikkerhed | |
Sikkerhedsalgoritmer | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
Service Set Identifier (SSID) funktioner | SSID-udsendelse til/fra |
Antal SSID understøttet | 4 |
Administrationsfunktioner | |
Webbaseret administration | Ja |
Firmware kan opgraderes | Ja |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 1 |
WAN-forbindelse | Ethernet (RJ-45) |
Strømstyring | |
Strøm over Ethernet (PoE) | Ja |
Strømforbrug (typisk) | 30 W |
Design | |
Produktfarve | Grå |
Kode for international beskyttelse (IP) | IP65 |
Knap til nulstilling | Ja |
Certificering | CE, FCC |
Intern | Ingen |
Antenne | |
Antennestik type | N-type |
Antal forbindelser | 4 |
Vægt & størrelser | |
Bredde | 230 mm |
Dybde | 380 mm |
Højde | 85 mm |
Vægt | 4 kg |
Emballeringsdata | |
CD manual | Ja |
Hurtig CD installationsvejledning | Ja |
Pakkebredde | 285 mm |
Pakkedybde | 455 mm |
Pakkehøjde | 125 mm |
Pakkevægt | 4,4 kg |
Pakketype | Kasse |
Emballage indhold | |
Monteringssæt | Ja |
Hurtig start guide | Ja |
Driftsbetingelser | |
Relativ luftfugtighed ved drift (H-H) | 10 - 90% |
Driftstemperatur (T-T) | -40 - 50 °C |
Opbevaringstemperatur (T-T) | -40 - 70 °C |
Relativ luftfugtighed ved opbevaring (H-H) | 5 - 90% |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
Oprindelsesland | Kina |
Hovedkassens bredde (udvendigt) | 475 mm |
Hovedkassens længde (udvendigt) | 650 mm |
Hovedkassen højde (udvendigt) | 305 mm |
Hovedkassens bruttovægt (udvendigt) | 23,5 kg |
Produkter pr. hovedkasse (udvendigt) | 5 stk |
