- Compatible with IEEE 802.11a/b/g/n/ac wireless standards
- Multi-operation modes to suit different wireless applications
- IEEE 802.3af PoE compliant to simplify deployment and installation
- Provides up to 8 SSIDs to separate network traffic and enhance security
- Auto Channel Selection for low interference band

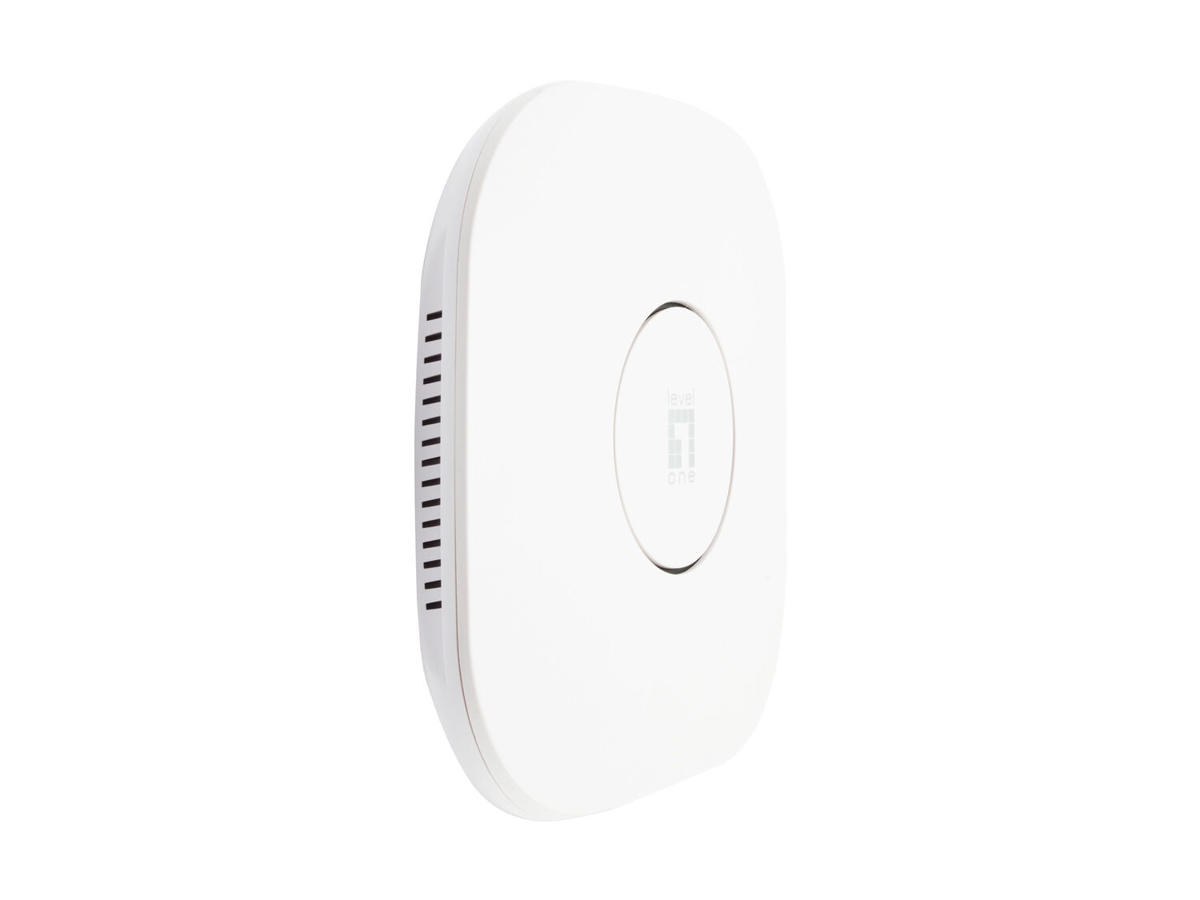

"The LevelOne WAP-8121 is a sophisticated, fast dual-band managed wireless access point, offering up to 450 Mbps on the 5 GHz band and up to 300 Mbps on the 2.4 GHz band. It provides a combined throughput of 750 Mbps using 802.11ac standards. The advanced wireless access point also supports all legacy wireless devices on 802.11a/b/g/n. WAP-8121 performs automatic testing and assigns channels dynamically to detect conflicts and channel interference, constantly optimising performance in the background. The device runs on PoE, negating the need for electrical wiring.
Central management allows for adjustments to the RF (Radio Frequency) (according to )the environment, further optimising the performance of the network by adjusting and balancing workloads as well as detecting areas of weak reception. it provides WEP, WPA-PSK, WPA-TKIP, and WPA2 AES secured connectivity for securing the Wireless Area Network and to prevent unauthorized access. The device supports up to four(Eight) SSIDs allowing unique configuration settings for different network regions. The sophisticated and stylish access point mounts on a ceiling, providing a low-profile, highly effective networking solution."
Funktioner | |
2.4 GHz | Ja |
5 GHz | Ja |
Maksimal dataoverførselshastighed | 433 Mbit/s |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Frekvensbånd | 2.4 - 5.825 GHz |
Netværksstandarder | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x |
Antal brugere | 80 bruger(e) |
Antal kanaler | 36 kanaler |
Automatisk kanalvalg | Ja |
Modulation | 16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK |
Wi-Fi-multimedie (WMM)/(WME) | Ja |
Flowkontrol support | Ja |
Servicekvalitet support (QoS) | Ja |
Modtager, følsomhed | 2.4GHz: 802.11n (20MHZ): -70 dBm 802.11n (40MHZ): -68 dBm 802.11g: -72 dBm 802.11b: -95 dBm 5GHz: 802.11ac (80MHZ): -62 dBm 802.11ac (40MHZ): -65 dBm 802.11ac (20MHZ): -68 dBm 802.11n (40MHZ): -68 dBm 802.11n (20MHZ): -70 dBm 802.11a: -72 dBm |
Sikkerhed | |
Sikkerhedsalgoritmer | 64-bit WEP, 128-bit WEP, WPA, WPA2, WPA2-AES, WPA2-PSK, WPA2-TKIP |
Service Set Identifier (SSID) funktioner | SSID-udsendelse til/fra |
Antal SSID understøttet | 8 |
Administrationsfunktioner | |
Webbaseret administration | Ja |
Switch-type | Administreret |
Firmware kan opgraderes | Ja |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 2 |
WAN-forbindelse | Ethernet (RJ-45), Wi-Fi |
DC-in-stik | Ja |
Strømstyring | |
Strøm over Ethernet (PoE) | Ja |
Udgangsspænding | 12 V |
Udgangsstrøm | 1,5 A |
Strømforbrug (typisk) | 15 W |
Design | |
Placering | Loft, Væg |
Produktfarve | Hvid |
Knap til nulstilling | Ja |
LED-indikatorer | Strøm, WLAN |
Certificering | CE/FCC |
Intern | Ingen |
Antenne | |
Antenneretningstype | Omniretningsbestemt |
Antennefunktioner | Integreret antenne |
Antenner, antal | 3 |
Niveau for antennestyrke (maks.) | 15 dBi |
Vægt & størrelser | |
Bredde | 189 mm |
Dybde | 38,5 mm |
Højde | 189 mm |
Vægt | 326 g |
Emballeringsdata | |
Pakkebredde | 214 mm |
Pakkedybde | 62 mm |
Pakkehøjde | 317 mm |
Pakkevægt | 680 g |
Emballage indhold | |
Kabler inkluderet | LAN (RJ-45) |
Hurtig start guide | Ja |
Driftsbetingelser | |
Relativ luftfugtighed ved drift (H-H) | -20 - 50% |
Driftstemperatur (T-T) | -40 - 70 °C |
Opbevaringstemperatur (T-T) | 5 - 90 °C |
Relativ luftfugtighed ved opbevaring (H-H) | 10 - 90% |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
