Works with Office 1-2-3 Simple and Secure Wi-Fi System for SMB Office
Easy, Complete, Expandable Office Wi-Fi System
Zero Configuration, Self-Managed & Pre-Configured Wi-Fi System

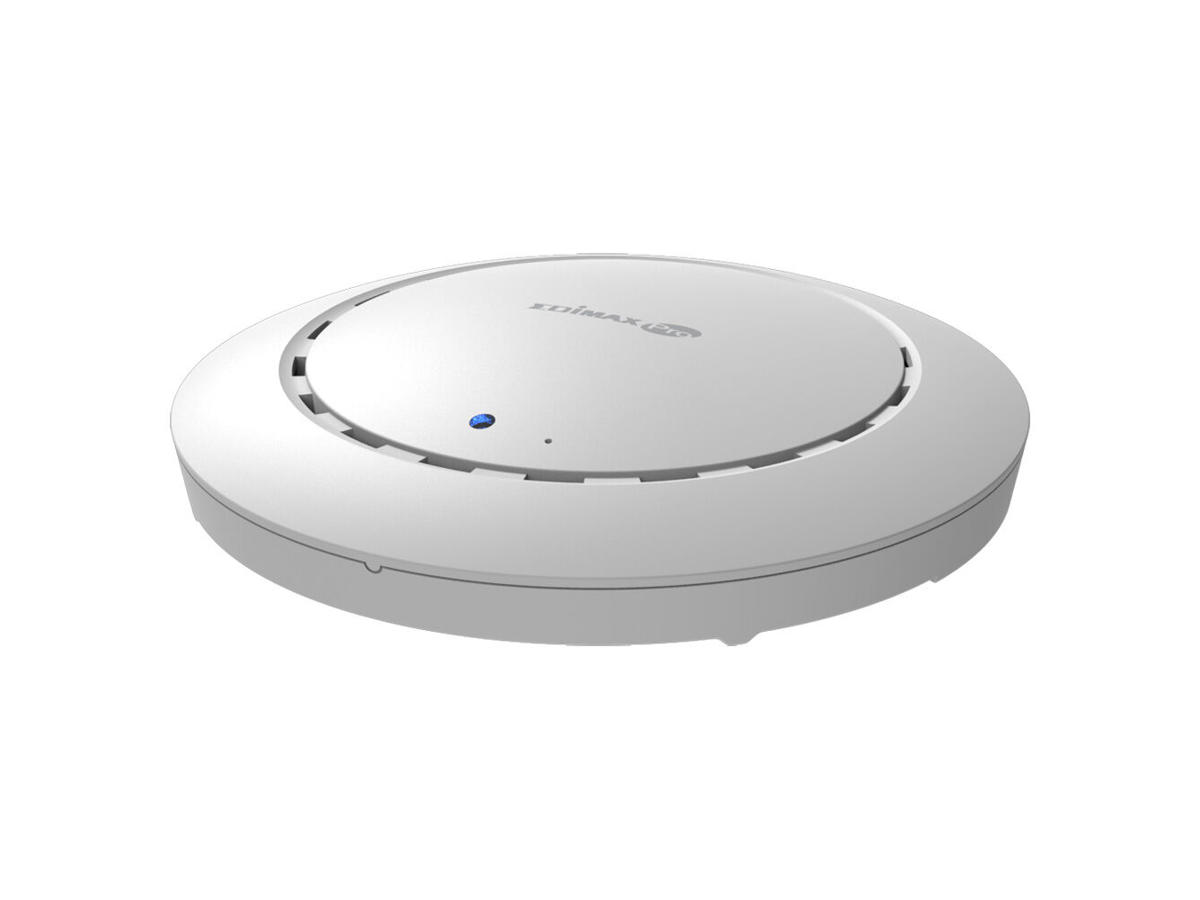

The CAP1300 Office +1 Add-on Access Point (AP) for Office 1-2-3 Wi-Fi System comes with one pre-configured AP and is default as slave mode that can communicate between master AP with self-managed functions with zero configuration.
License-Free Intutive UI, Simple yet Powerful
Built-in with the AP management software, no need for server or controller software and no extra license fee. The dedicated icon-based user interface of Office 1-2-3 / CAP1300 Office +1 can easily walk you through the entire process of setting up the Wi-Fi networks.
Secure& Separated 3 Wi-Fi Networks
By default, each AP has three Wi-Fi networks: office, guest and device networks. For Wi-Fi network security, each network has its own secure authentication.
Three Easy Ways of Authentication
Office networks use radius function that works like Wi-Fi access key. Enter the password once and it will remember. Each employee will have his/her own Wi-Fi access key.
Guest networks use SMS authentication and captive portal login. Administrators can print out account tickets for the guests and setup expiry time.
Device networks use access control list for equipment that are unable to enter account information.
E-MAP and Wireless Scheduling
Featuring E-MAP shows wireless coverage and statgus of your APs and Wireless Scheduling lets network manger to define when to provide Wi-Fi services to guest, office or device networks.
Optimal Wi-Fi Performance
Featuring with 11ac Wave 2 MU-MIMO, Beamforming, AirTime Fairness, Band Steering improved Wi-Fi range, reliability and performance.
Zero Configuration
Add to your Office 1-2-3 Wi-Fi system up and running in minutes!
Connect the CAP1300 Office +1 AP to the existing network and Office 1-2-3 Master AP via switch. (APs can be powered on by PoE)
The Office 1-2-3 Master AP will find the Office +1 AP and add the AP into the system automatically.
Dedicated Office Wi-Fi System for SMBs
Suitable for a wide range of office applications such as the working area, meeting room, open spece, lobby and others.
Funktioner | |
2.4 GHz | Ja |
5 GHz | Ja |
Maksimal dataoverførselshastighed | 1267 Mbit/s |
Ethernet LAN-datahastigheder | 1000 Mbit/s |
Netværksstandarder | IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ac |
Antal brugere | 100 bruger(e) |
MIMO | Ja |
MIMO type | Multi User MIMO |
Hurtig roaming | Ja |
VLAN understøttelse | Ja |
Vituelle LAN funktioner | Tagged VLAN |
STA isolation (same VLAN) | Ja |
Servicekvalitet support (QoS) | Ja |
Modtager, følsomhed | -93 dBm |
Sikkerhed | |
Sikkerhedsalgoritmer | PEAP, WEP, WPA, WPA2 |
Filtrering af MAC-adresser | Ja |
Service Set Identifier (SSID) funktioner | Hidden SSID |
Antal SSID understøttet | 32 |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 2 |
DC-in-stik | Ja |
Strømstyring | |
Strøm over Ethernet (PoE) | Ja |
Udgangsspænding | 12 V |
Udgangsstrøm | 1 A |
Strømforsyning | 11 W |
Design | |
Placering | Loft |
Produktfarve | Hvid |
Slot til kabellås | Ja |
Kabellåseslids type | Kensington |
Knap til nulstilling | Ja |
LED-indikatorer | Diagnostisk, Strøm |
Certificering | CE, FCC |
Intern | Ja |
Antenne | |
Antenner, antal | 4 |
Niveau for antennestyrke (maks.) | 5 dBi |
Præstation | |
Flashhukommelse | 32 MB |
Intern hukommelse | 256 MB |
Vægt & størrelser | |
Bredde | 176 mm |
Dybde | 176 mm |
Højde | 32 mm |
Vægt | 342 g |
Emballage indhold | |
AC-adapter inkluderet | Ja |
Kabler inkluderet | LAN (RJ-45) |
Monteringssæt | Ja |
Hurtig start guide | Ja |
Driftsbetingelser | |
Relativ luftfugtighed ved drift (H-H) | 0 - 90% |
Driftstemperatur (T-T) | 0 - 40 °C |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
