Premium Solution with Super-High Speed AC1750 for Elite Performance

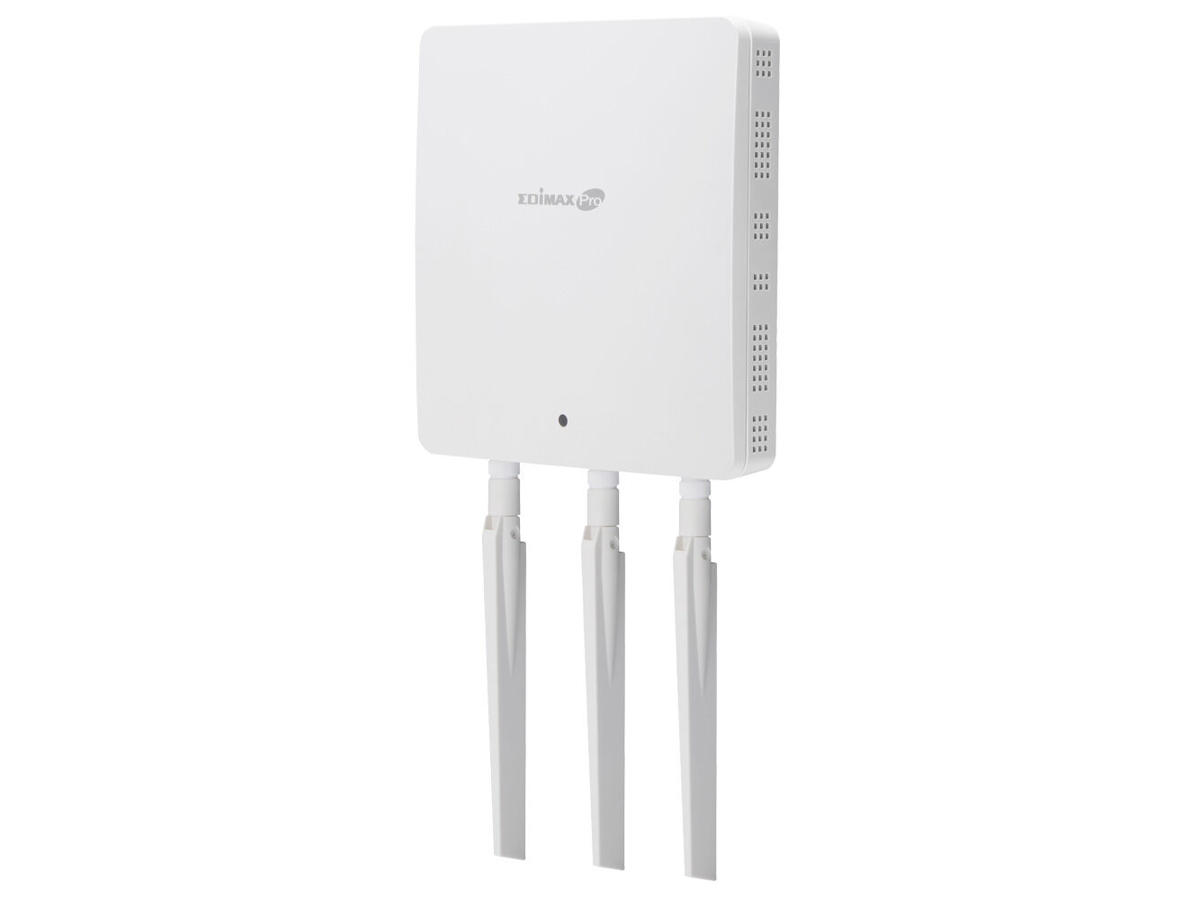

The WAP1750 is a premium wireless solution designed for SMBs which demand elite network performance. The product features the latest 3 x 3 IEEE 802.11ac technology for concurrentdual-band wireless speeds up to 1750Mbps. A wall-mounted design and industrial-grade build quality combined with user-friendly operation and an extensive feature set, make an ideal high-performance dual-band solution for demanding day-to-day enterprise operations.
For businesses that demand security, flexibility and speed – the Edimax Pro series has a wide range of potential applications from office environments to schools, campuses, hotels and hospitals. Multiple SSIDs can be configured for different departments or user groups and a built-in RADIUS server provides additional verification with a scalable AP array architecture for central management of multiple access points. High-density capacity for up to 100 simultaneous clients ideal for BYOD workplaces or other environments with a high volume of clients and wireless devices, and fast roaming allows for seamless transitions between multiple access points. Power over Ethernet support (PoE) and an intuitive web-based management interface provide deployment flexibility and extensive management options for company MIS departments and network administrators. An optional security cover also prevents physical theft or tampering, along with a rogue AP detection function to safeguard your network from unauthorized access.
When performance and security are critical for your business, you need products that are engineered for your industry. The Edimax Pro series is designed to help your business and provide the connectivity that you rely on every day, with safety and effectiveness guaranteed, and the WAP1750 offers the highest level of wireless performance on the market today.
Funktioner | |
Maksimal dataoverførselshastighed | 1750 Mbit/s |
Wi-Fi-datahastighed (maks.) | 1750 Mbit/s |
Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
Frekvensbånd | 2.412 - 484, 5.18 - 5.24, 5.26 - 5.32, 5.5 - 5.7 5.745 - 5.825 GHz |
Netværksstandarder | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u |
VLAN understøttelse | Ingen |
Servicekvalitet support (QoS) | Ja |
Modtager, følsomhed | •802.11b ≤-93dBm@1Mbps ≤-90dBm@11Mbps •802.11g ≤-90dBm@6Mbps ≤-74dBm@54Mbps •802.11gn (2.4G) ≤-94.5dBm@MCS0 ≤-76.5dBm@MCS7 ≤-90dBm@MCS8 ≤-72dBm@MCS15 ≤-90dBm@MCS16 ≤-72dBm@MCS23 •802.11a ≤-90dBm@6Mbp ≤-72dBm@54Mbps •802.11an(5G) ≤-94.5dBm@MCS0 ≤-70.5dBm@MCS7 ≤-90dBm@MCS8 ≤-66dBm@MCS15 ≤-90dBm@MCS16 ≤-66dBm@MCS23 •802.11ac ≤ -90.5dBm@MCS0 ≤ -60.5dBm@MCS9 |
Sikkerhed | |
Sikkerhedsalgoritmer | 802.1x RADIUS, EAP-AKA, EAP-FAST, EAP-SIM, WEP, WPA, WPA2, WPS |
Filtrering af MAC-adresser | Ja |
VPN-support | IPsec, L2TP, PPTP |
Protokoller | |
Administrationsprotokoller | HTTP / HTTPS, SNMP v1/v2c/v3, Telnet, SSH |
Porte & Grænseflader | |
Ethernet LAN-porte (RJ-45) | 2 |
Strømstyring | |
Strøm over Ethernet (PoE) | Ja |
Udgangsspænding | 12 V |
Udgangsstrøm | 4 A |
Strømforbrug (typisk) | 15 W |
Udgangseffekt beskrivelse | 27.5(±2)dBm |
Design | |
Produktfarve | Hvid |
Knap til nulstilling | Ja |
LED-indikatorer | Ja |
Certificering | CE / FCC |
Intern | Ingen |
Antenne | |
Antenne type | Ekstern |
Antenner, antal | 3 |
Niveau for antennestyrke (maks.) | 2 dBi |
Vægt & størrelser | |
Bredde | 183 mm |
Dybde | 36 mm |
Højde | 183 mm |
Vægt | 560 g |
Driftsbetingelser | |
Driftstemperatur (T-T) | 0 - 50 °C |
Logistik data | |
Harmoniseret systemkode (HS) | 85176990 |
